Description

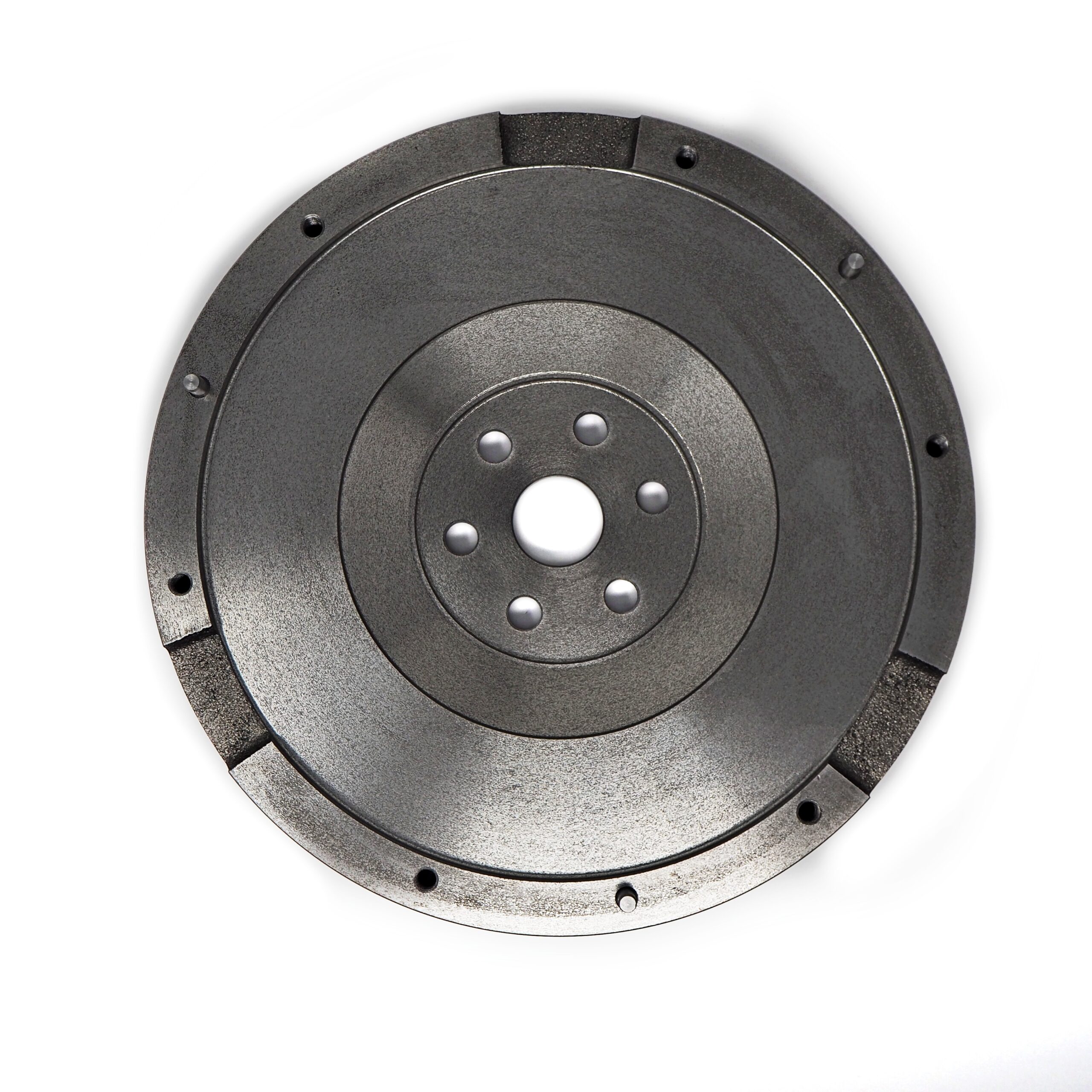

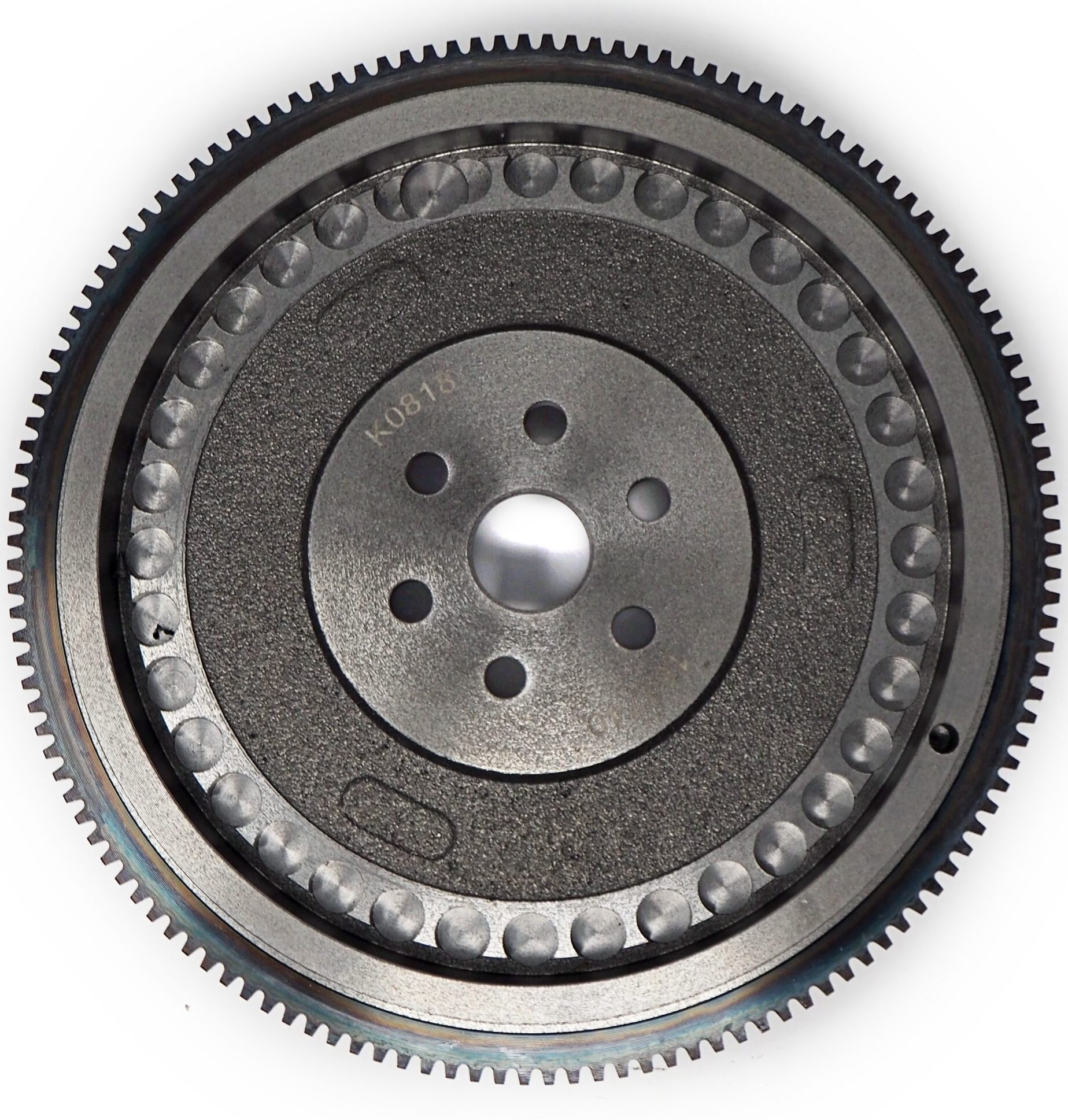

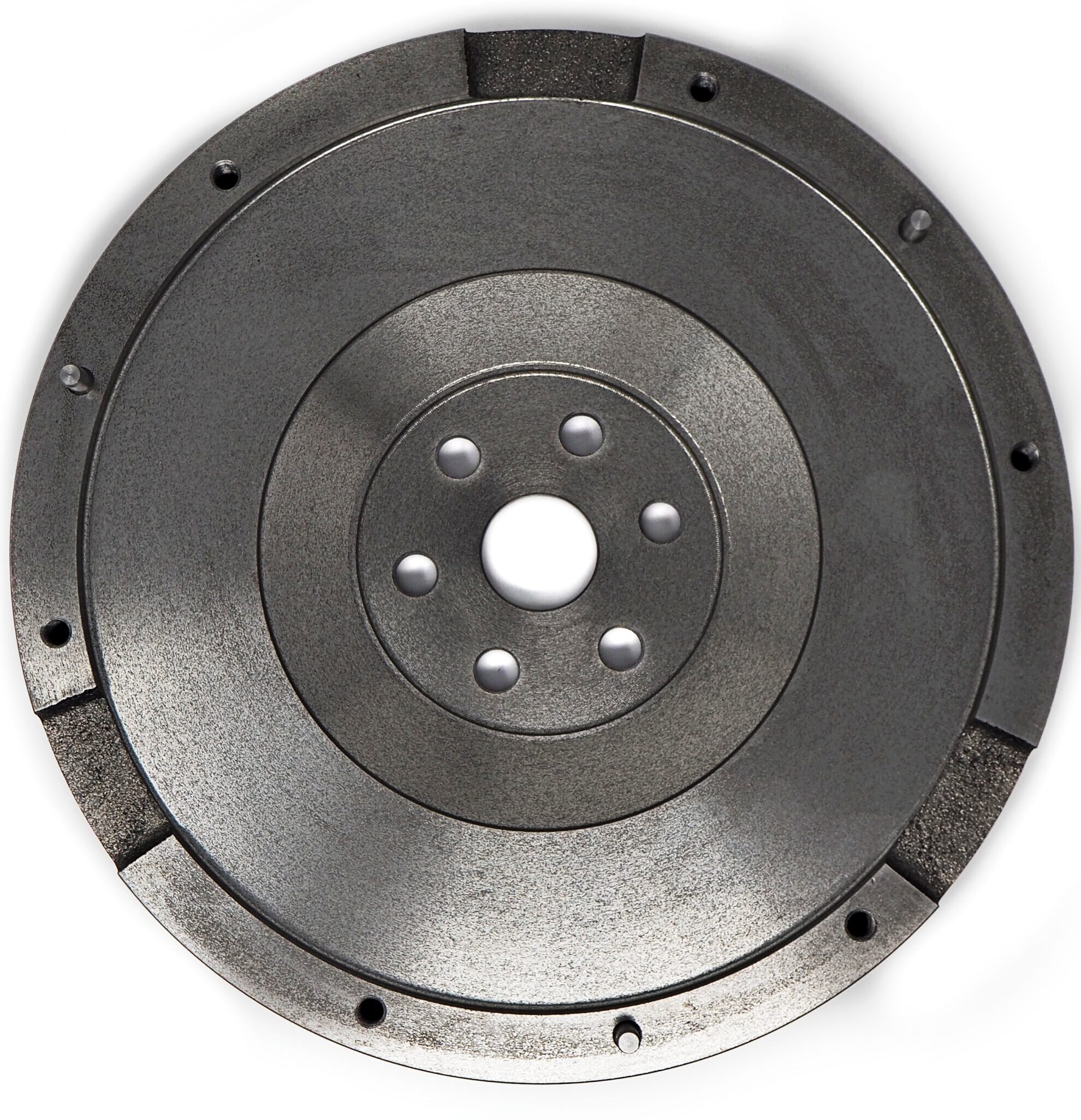

Ford, Mercury Solid Flywheel
FW740
FW740
Price:
Additional information
| Weight | 26 lbs |
|---|---|
| Dimensions | 15 × 14 × 2 in |
Flywheel Specifications
| Flywheel Type | Solid |
|---|---|
| Flywheel Ring Gear Outer Dia. | - |
| Flywheel Casting Outer Dia. | - |
| Bore Dia. | - |
| Cover Assembly Bolt Circle Dia. | 10.236 |
| Cover Assembly Bolt Hole Size | M8*1.25 |
| Cover Assembly Bolt Pattern | 6 Holes Equally Spaced |
| Dowel Pin Qty (Cover To Flywheel) | - |
| Dowel Pin Diameter (Cover To Flywheel) | - |
| Crank Mount Bolt Circle Dia. | 2.75 |
| Crankshaft Mount Hole Qty. | 6 |
| Tooth Qty. | 135 |
| Step Config. | Step |
| Flywheel Step (In.) | -0.275 |
