Description

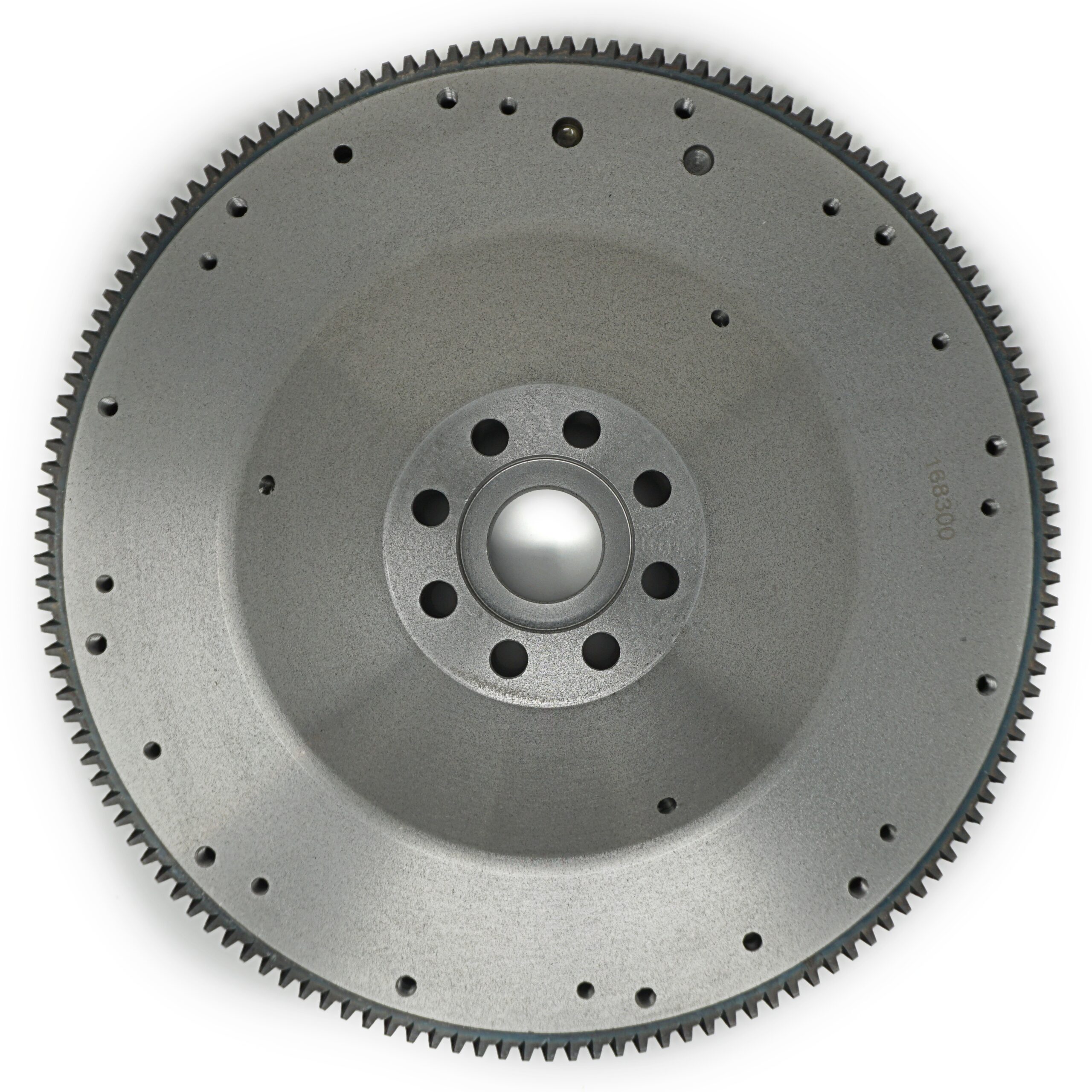

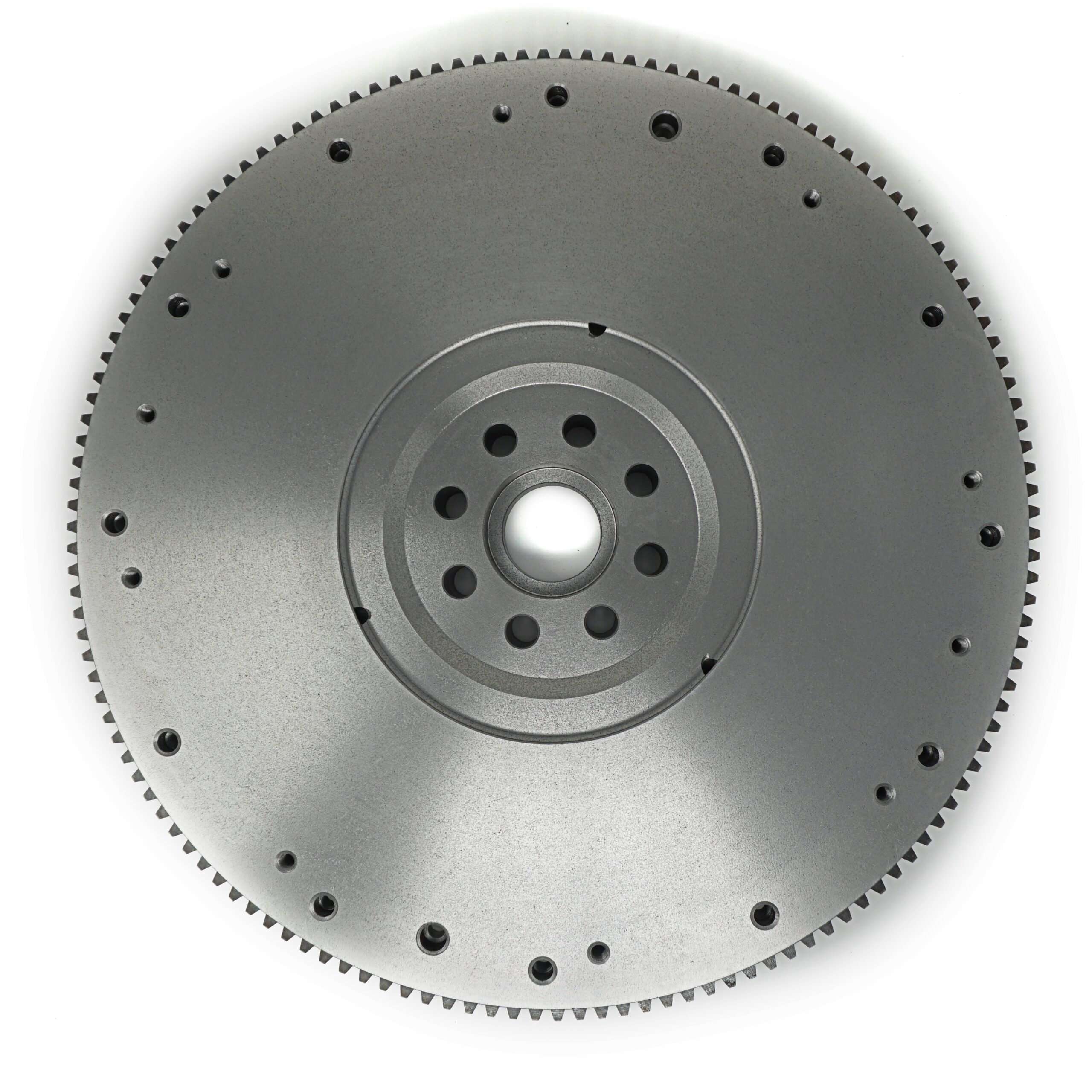

HD Flywheel
E7HZ6375A
E7HZ6375A
Price:
Additional information
| Weight | 70 lbs |
|---|---|
| Dimensions | 2 × 12 × 14 in |
Flywheel Specifications
| Flywheel Type | Heavy Duty |
|---|---|
| Flywheel Ring Gear Outer Dia. | - |
| Flywheel Casting Outer Dia. | - |
| Bore Dia. | 7.50'' |
| Cover Assembly Bolt Circle Dia. | 15.500'' |
| Cover Assembly Bolt Hole Size | 3/8'' |
| Cover Assembly Bolt Pattern | 4 Groups of 3 |
| Dowel Pin Qty (Cover To Flywheel) | - |
| Dowel Pin Diameter (Cover To Flywheel) | - |
| Crank Mount Bolt Circle Dia. | 3.875 |
| Crankshaft Mount Hole Qty. | 8 |
| Tooth Qty. | 138T |
| Step Config. | FLAT |
| Flywheel Step (In.) | - |
