Description

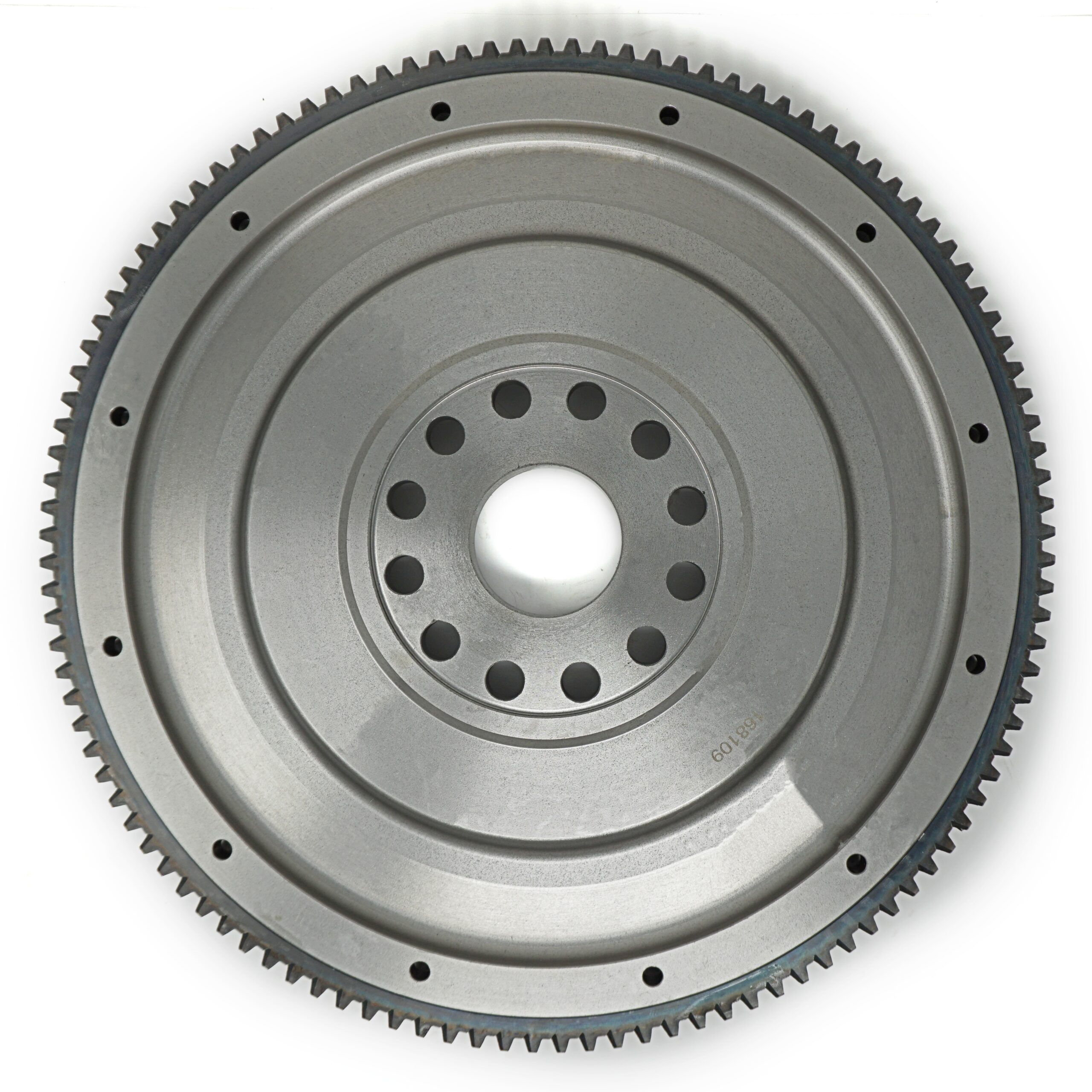

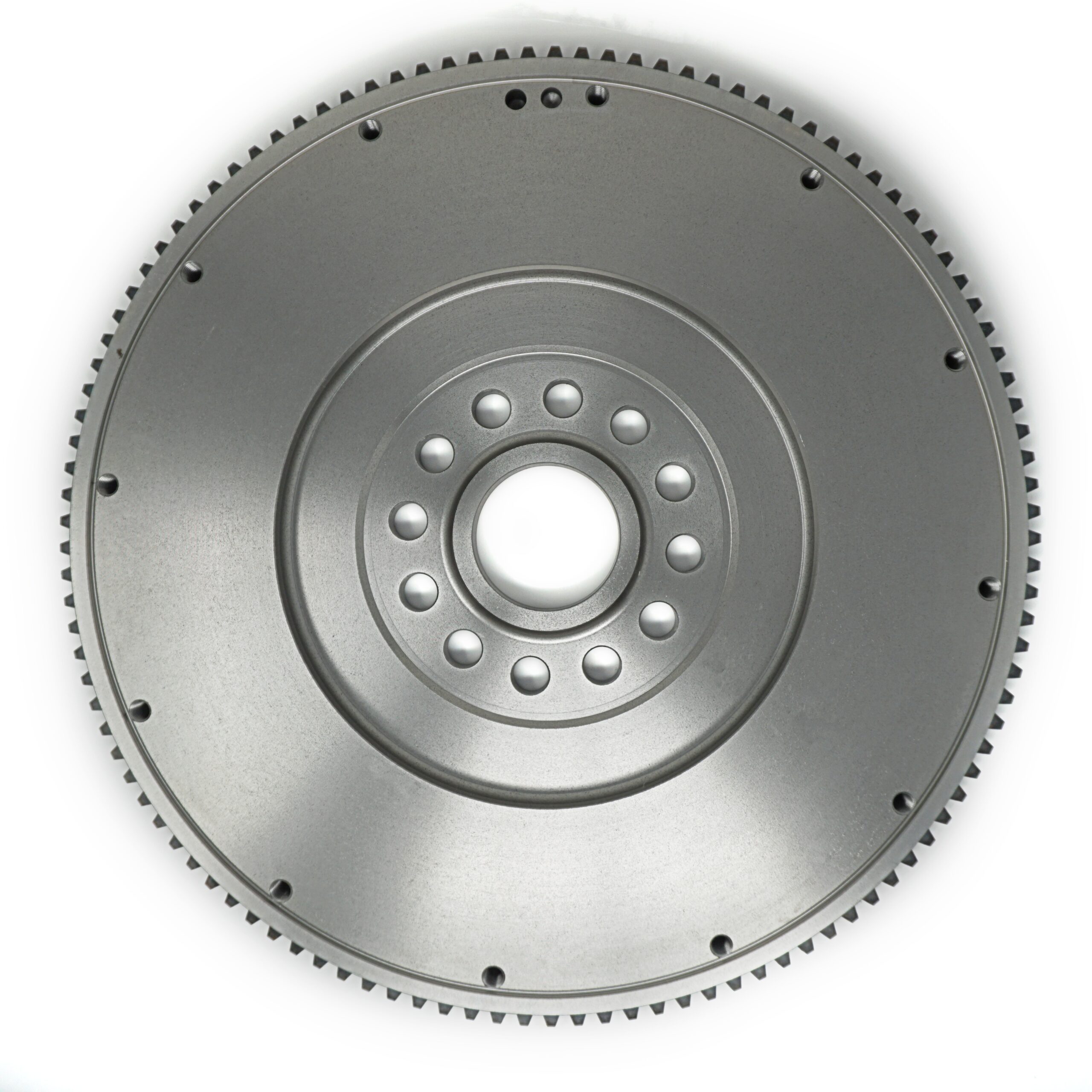

Cummins Flywheel
3680922
3680922
Price:
Additional information
| Weight | 81 lbs |
|---|---|
| Dimensions | 3 × 19 × 19 in |
Flywheel Specifications
| Flywheel Type | Heavy Duty |
|---|---|
| Flywheel Ring Gear Outer Dia. | - |
| Flywheel Casting Outer Dia. | - |
| Bore Dia. | 10.00'' |
| Cover Assembly Bolt Circle Dia. | 16.625'' |
| Cover Assembly Bolt Hole Size | 7/16'' |
| Cover Assembly Bolt Pattern | 4 Groups of 3 |
| Dowel Pin Qty (Cover To Flywheel) | - |
| Dowel Pin Diameter (Cover To Flywheel) | - |
| Crank Mount Bolt Circle Dia. | 5.5 |
| Crankshaft Mount Hole Qty. | 12 |
| Tooth Qty. | 113T |
| Step Config. | FLAT |
| Flywheel Step (In.) | - |
