FW529

FW529

FW529

Brand: Platinum Driveline, Inc.
Category:

Contact Platinum for Price and Availability

Description

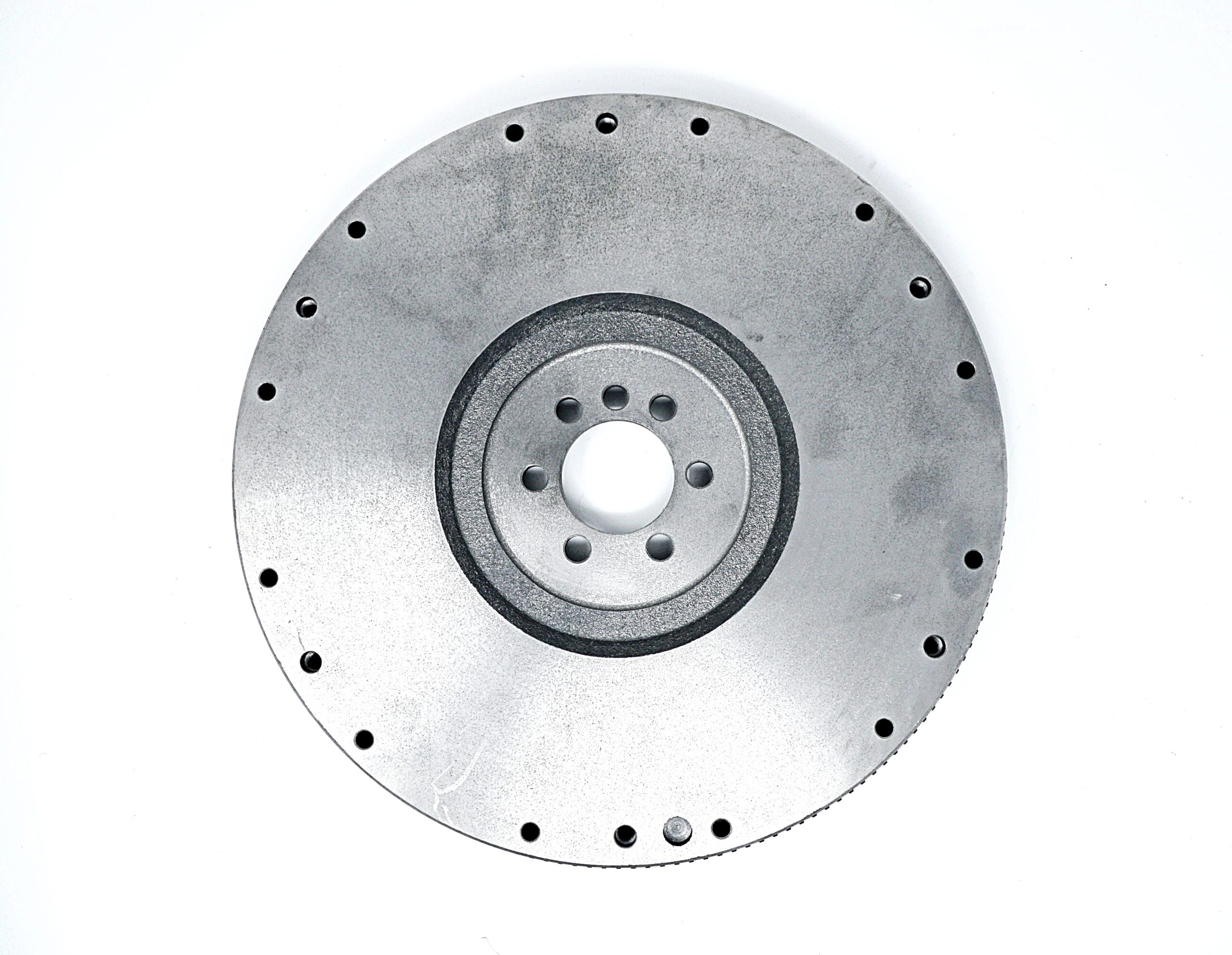

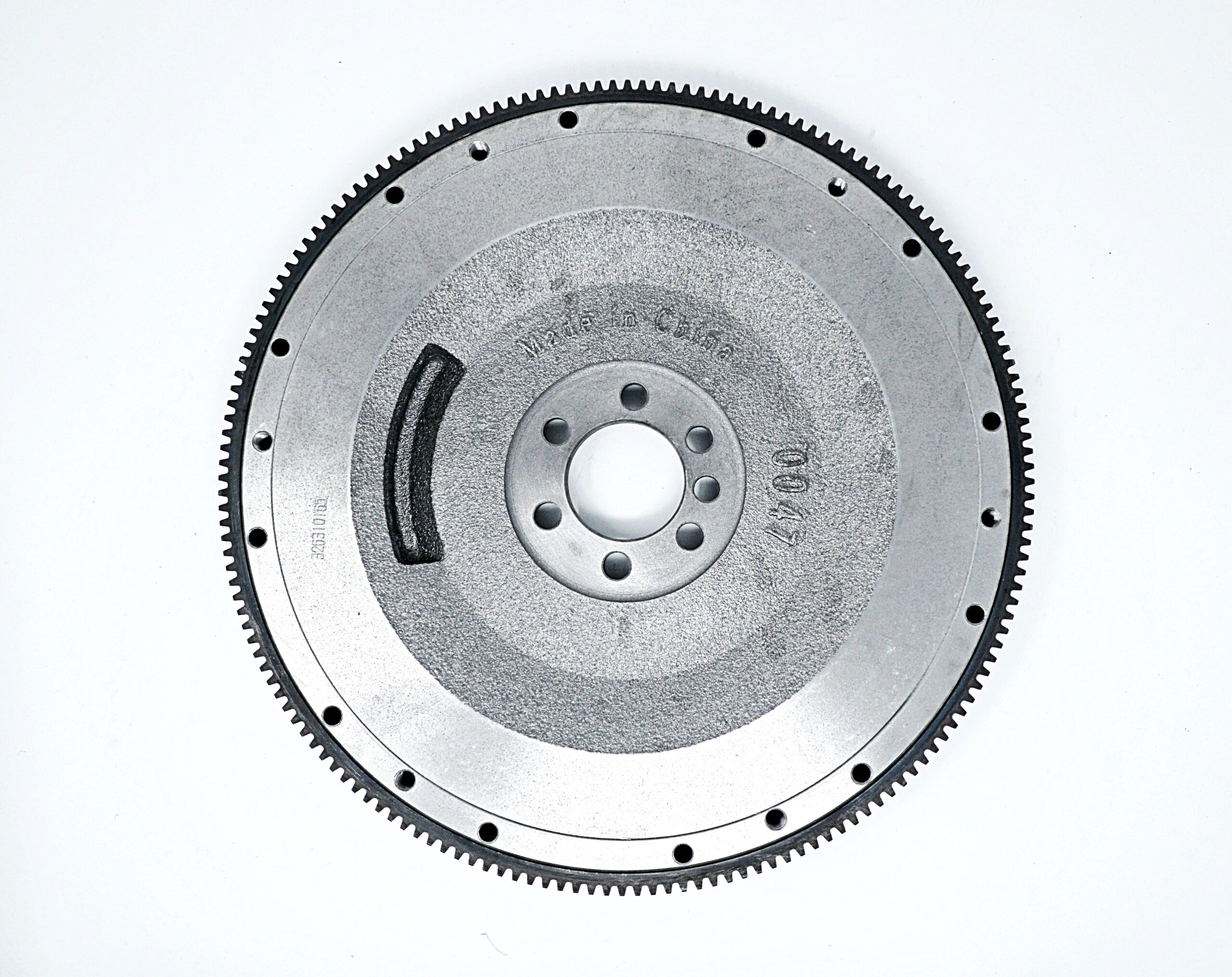

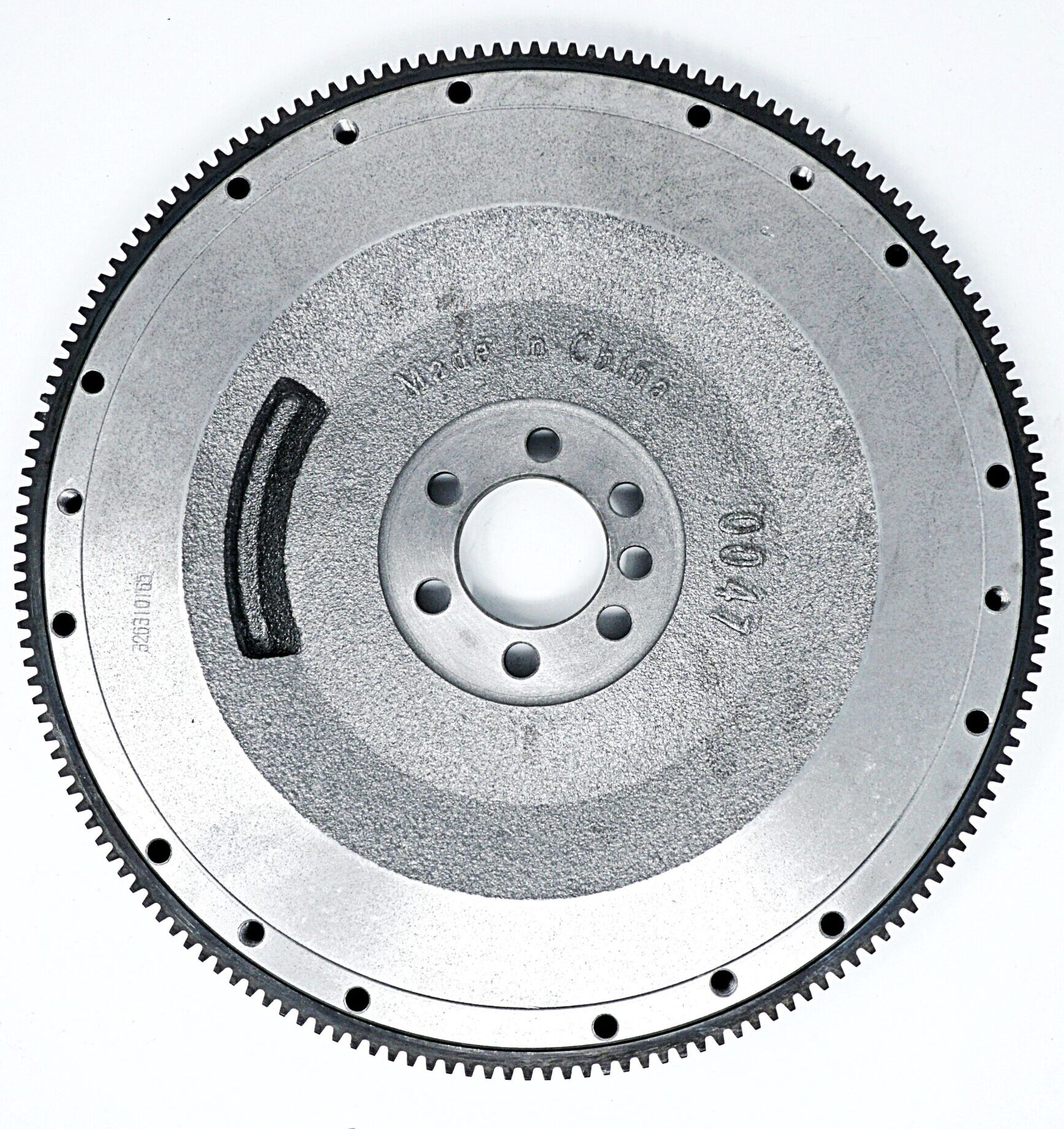

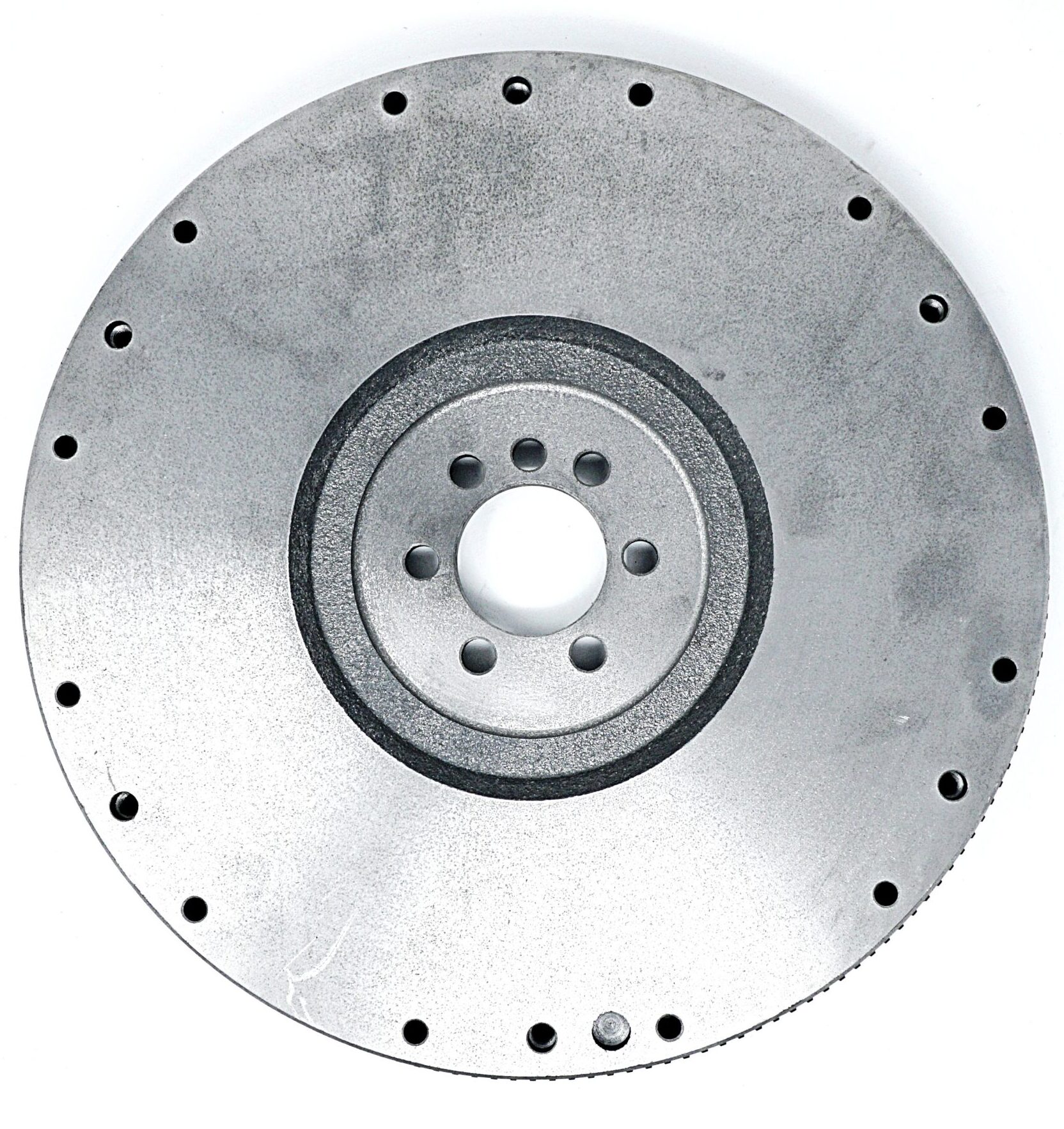

Chevrolet, GMC Solid Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

UPC 84972101317
Weight 45 lbs
Dimensions 16.25 × 16.25 × 3.5 in

Flywheel Specifications

Flywheel TypeSolid
Cover Assembly Bolt Circle Dia.12 -5/8''
Cover Assembly Bolt Hole Size3/8''
Cover Assembly Bolt Pattern6 Holes Equally Spaced
Crank Mount Bolt Circle Dia.3''
Crankshaft Mount Hole Qty.6
Tooth Qty.168
Step Config.Flat
Flywheel Step (In.)0.00''

Vehicle Fitment

Year
Make
Model
Engine
Notes
1988
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
R, V Series
1988-1991
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
1990
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
P Series
1990-1991
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
Van
1991
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
P Series 4-Speed
1991
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
P Series 5-Speed
1992-1993
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
Except P Series
1992-1993
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
P Series
1996-1998
Chevrolet
C1500-C3500
6 Cyl 4.3L 262"
1988
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
R, V Series
1988-1991
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
1990
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
P Series
1990-1991
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
Van
1991
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
P Series 4-Speed
1991
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
P Series 5-Speed
1992-1993
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
Except P Series
1992-1993
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
P Series
1996-1998
Chevrolet
K1500-K3500
6 Cyl 4.3L 262"
1990-1992
Chevrolet
S-10, T-10, Blazer & Pickup
6 Cyl 4.3L 262"
1996-1998
Chevrolet
S-10, T-10, Blazer & Pickup
6 Cyl 4.3L 262"
1988-1991
GMC
C1500-C3500
6 Cyl 4.3L 262"
1988-1991
GMC
C1500-C3500
6 Cyl 4.3L 262"
R, V Series
1990
GMC
C1500-C3500
6 Cyl 4.3L 262"
P Series
1991
GMC
C1500-C3500
6 Cyl 4.3L 262"
P Series 4-Speed
1991
GMC
C1500-C3500
6 Cyl 4.3L 262"
P Series 5-Speed
1991
GMC
C1500-C3500
6 Cyl 4.3L 262"
Van
1992-1993
GMC
C1500-C3500
6 Cyl 4.3L 262"
Except P Series
1992-1993
GMC
C1500-C3500
6 Cyl 4.3L 262"
P Series
1996-1998
GMC
C1500-C3500
6 Cyl 4.3L 262"
1988-1991
GMC
K1500-K3500
6 Cyl 4.3L 262"
1988-1991
GMC
K1500-K3500
6 Cyl 4.3L 262"
R, V Series
1990
GMC
K1500-K3500
6 Cyl 4.3L 262"
P Series
1991
GMC
K1500-K3500
6 Cyl 4.3L 262"
P Series 4-Speed
1991
GMC
K1500-K3500
6 Cyl 4.3L 262"
P Series 5-Speed
1991
GMC
K1500-K3500
6 Cyl 4.3L 262"
Van
1992-1993
GMC
K1500-K3500
6 Cyl 4.3L 262"
Except P Series
1992-1993
GMC
K1500-K3500
6 Cyl 4.3L 262"
P Series
1996-1998
GMC
K1500-K3500
6 Cyl 4.3L 262"
1990-1992
GMC
S-15 Pickup, Sonoma, Syclone
6 Cyl 4.3L 262"
Except Getrag 5-Speed
1990-1992
GMC
S-15 Pickup, Sonoma, Syclone
6 Cyl 4.3L 262"
With Getrag 5-Speed
1994-1998
GMC
S-15 Pickup, Sonoma, Syclone
6 Cyl 4.3L 262"
1997-1998
Isuzu
Hombre
6 Cyl 4.3L 262"
