FW528

FW528

FW528

Brand: Platinum Driveline, Inc.
Category:
On Hand: 23

Price:

Description

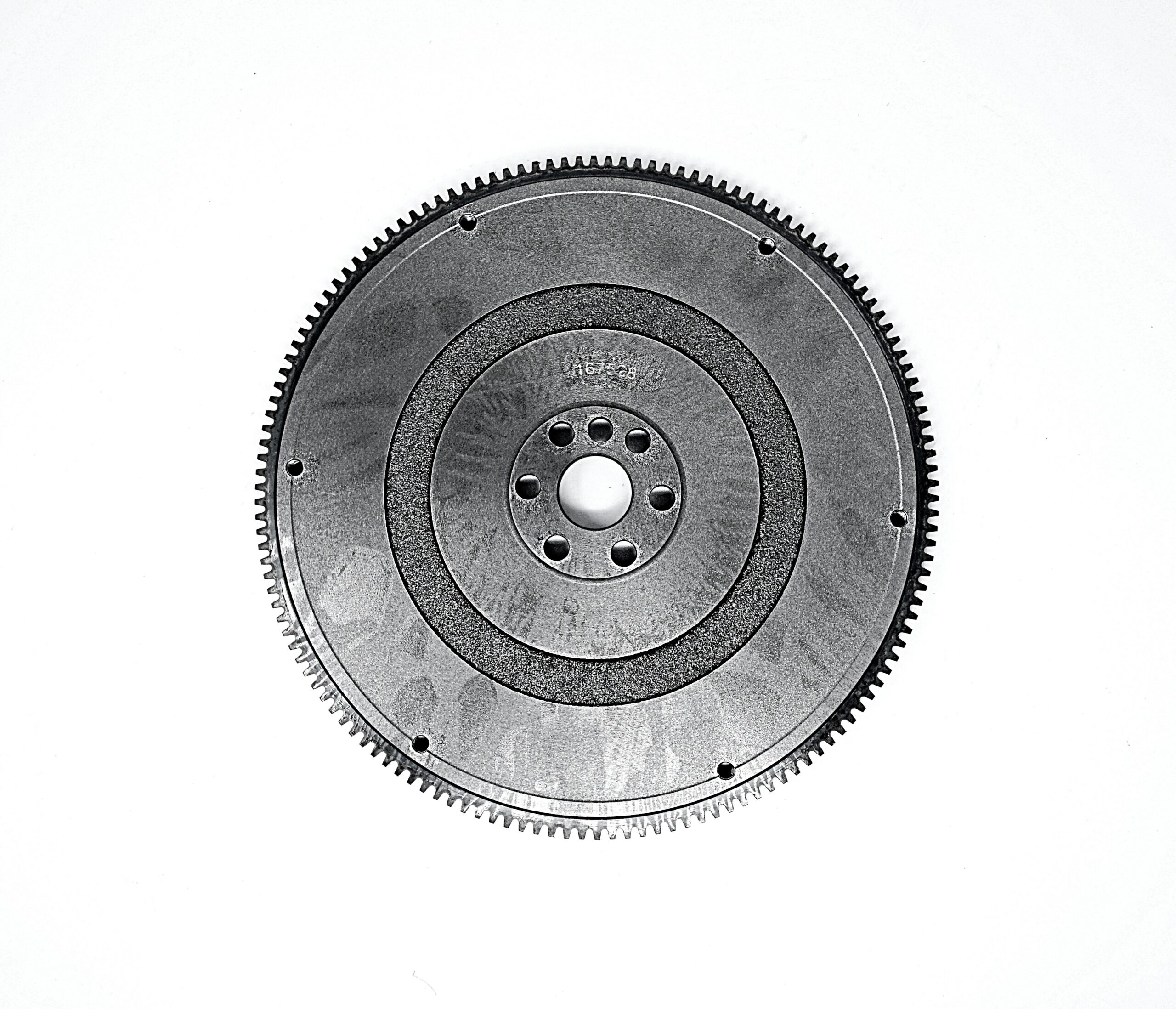

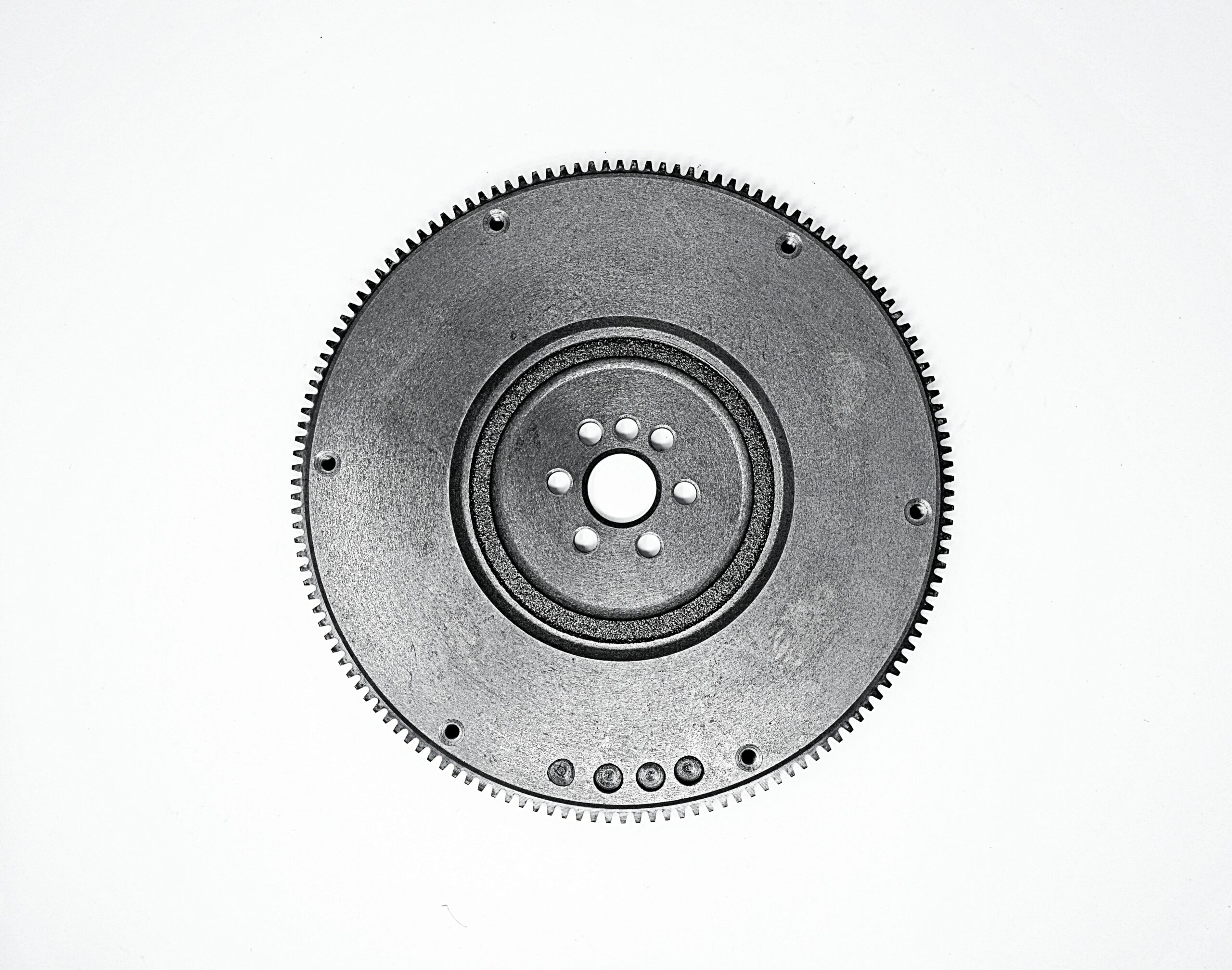

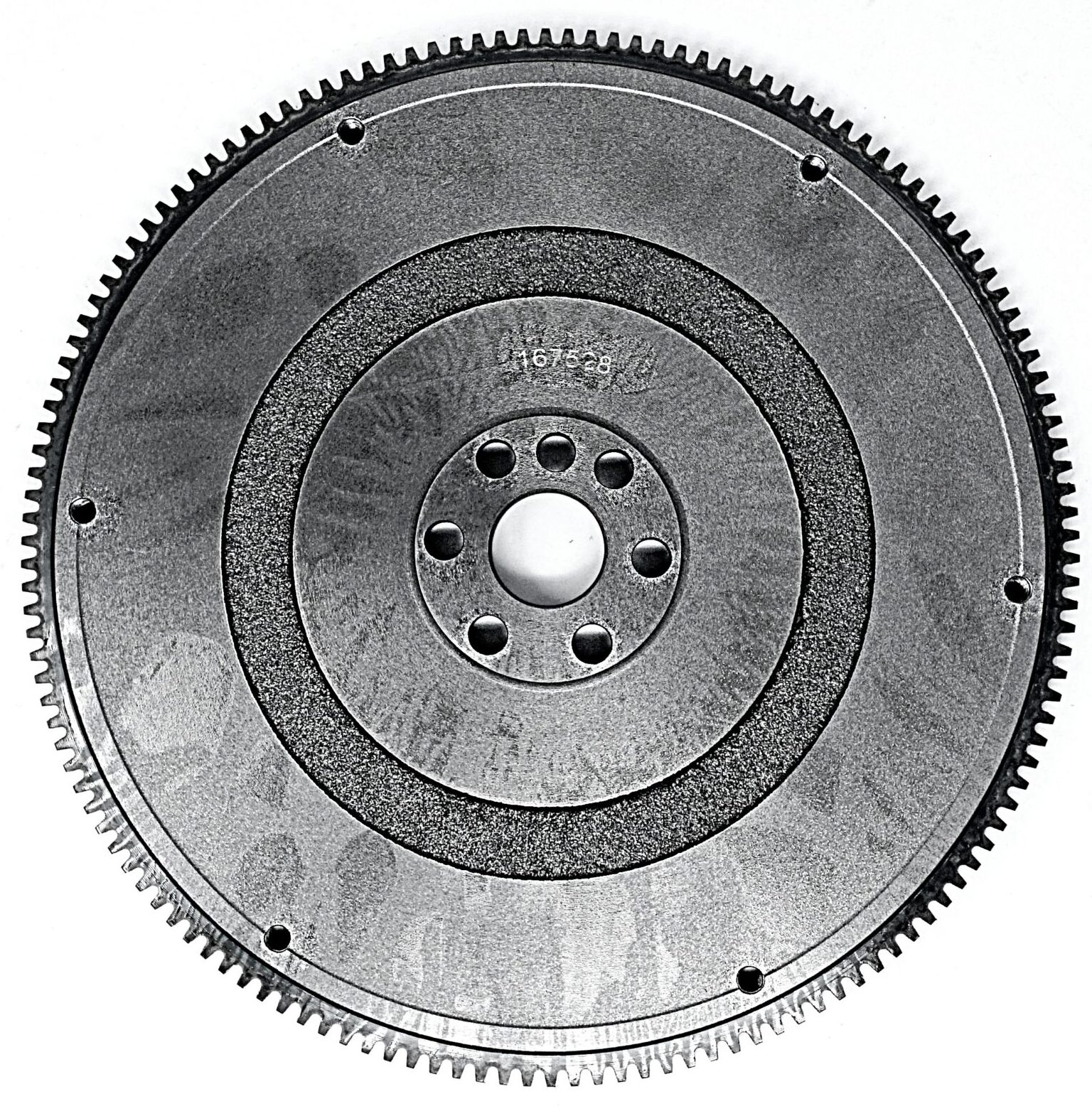

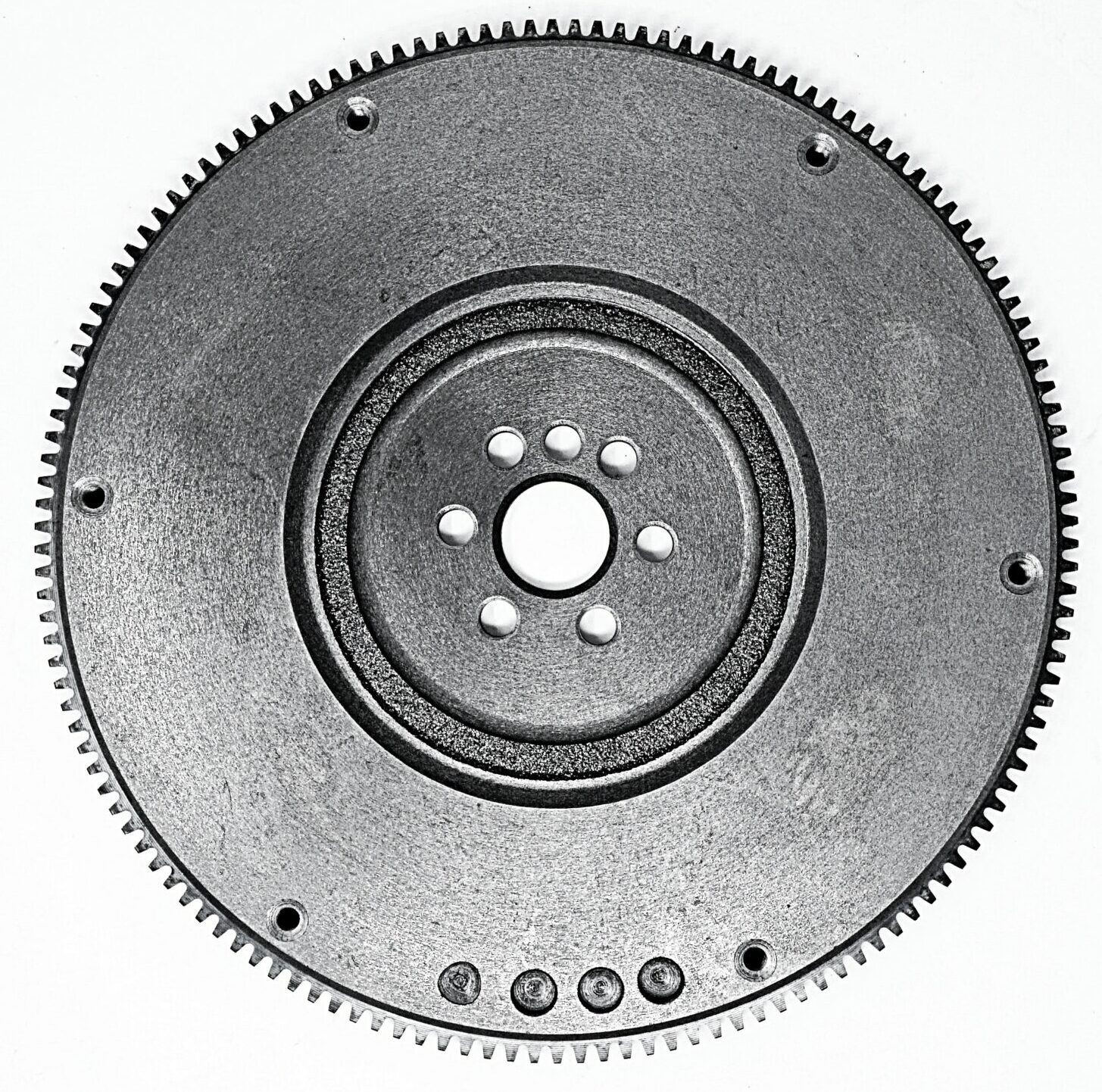

Chevrolet, GMC Solid Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

Weight 14.75 lbs
Dimensions 15 × 14 × 2 in

Flywheel Specifications

Flywheel TypeSolid
Cover Assembly Bolt Circle Dia.10-9/16''
Cover Assembly Bolt Hole SizeM8*1.25
Cover Assembly Bolt Pattern6 Holes Equally Spaced
Crank Mount Bolt Circle Dia.3''
Crankshaft Mount Hole Qty.7
Tooth Qty.142
Step Config.Flat
Flywheel Step (In.)0.00''

Vehicle Fitment

Year
Make
Model
Engine
Notes
1990-1990
Chevrolet
Lumina
6 Cyl 3.1L 191"
1991-1994
Chevrolet
Lumina
6 Cyl 3.4L 207"
1994-1995
Chevrolet
S-10, T-10, Blazer & Pickup
4 Cyl 2.2L 135"
1996-1997
Chevrolet
S-10, T-10, Blazer & Pickup
4 Cyl 2.2L 135"
1998-2001
Chevrolet
S-10, T-10, Blazer & Pickup
4 Cyl 2.2L 135"
2002-2003
Chevrolet
S-10, T-10, Blazer & Pickup
4 Cyl 2.2L 135"
1994-1995
GMC
S-15 Pickup, Sonoma, Syclone
4 Cyl 2.2L 135"
1996-1997
GMC
S-15 Pickup, Sonoma, Syclone
4 Cyl 2.2L 135"
1998-2001
GMC
S-15 Pickup, Sonoma, Syclone
4 Cyl 2.2L 135"
2002-2003
GMC
S-15 Pickup, Sonoma, Syclone
4 Cyl 2.2L 135"
1996-2000
Isuzu
Hombre
4 Cyl 2.2L 135"
1991-1992
Oldsmobile
Cutlass (Front-Wheel Drive)
6 Cyl 3.4L 207"
1989-1992
Pontiac
Grand Prix (Front-Wheel Drive)
6 Cyl 3.1L 191"
Turbo, Non-Turbo
1991-1993
Pontiac
Grand Prix (Front-Wheel Drive)
6 Cyl 3.4L 207"
