FW527

FW527

FW527

Brand: Platinum Driveline, Inc.
Category:
On Hand: 11

Price:

Description

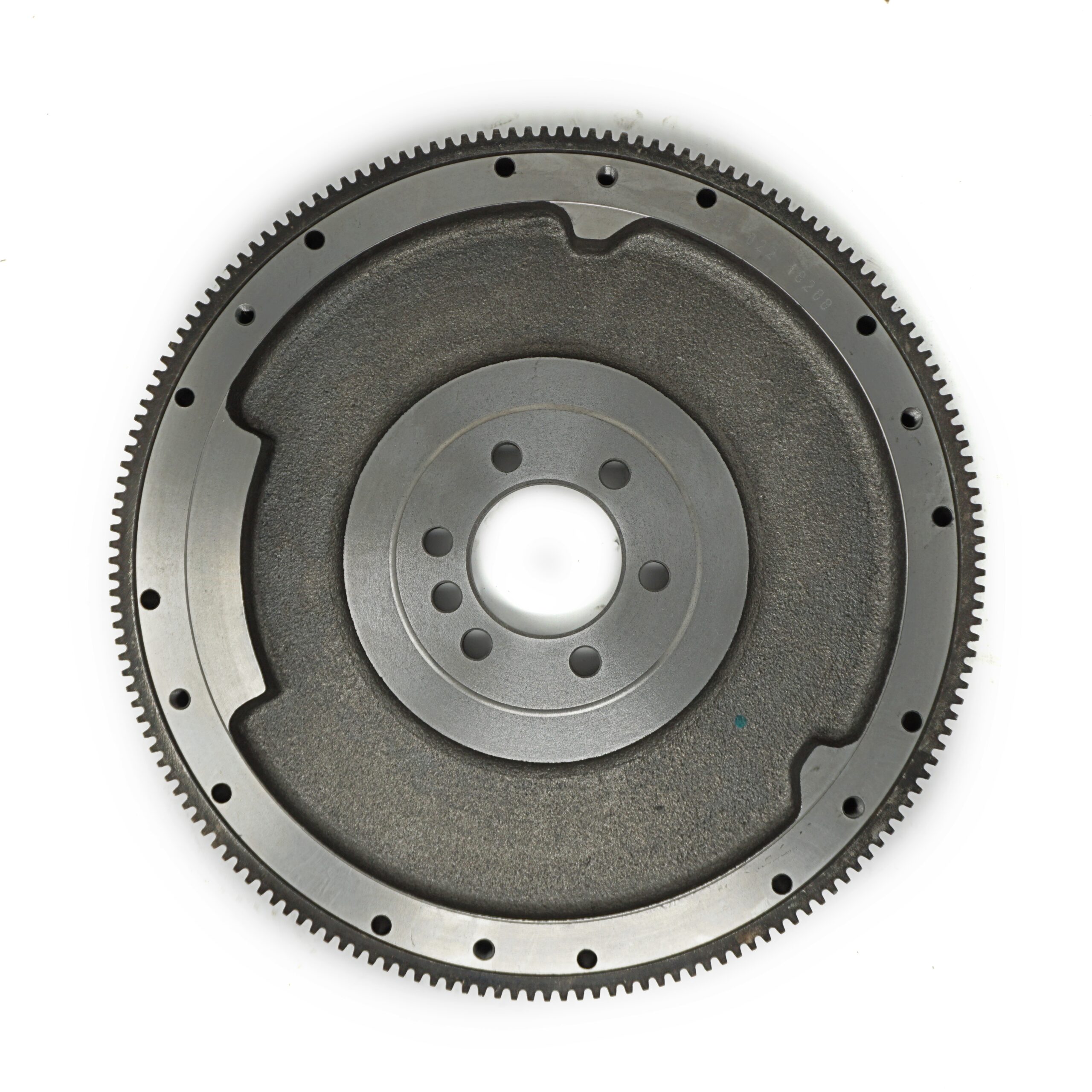

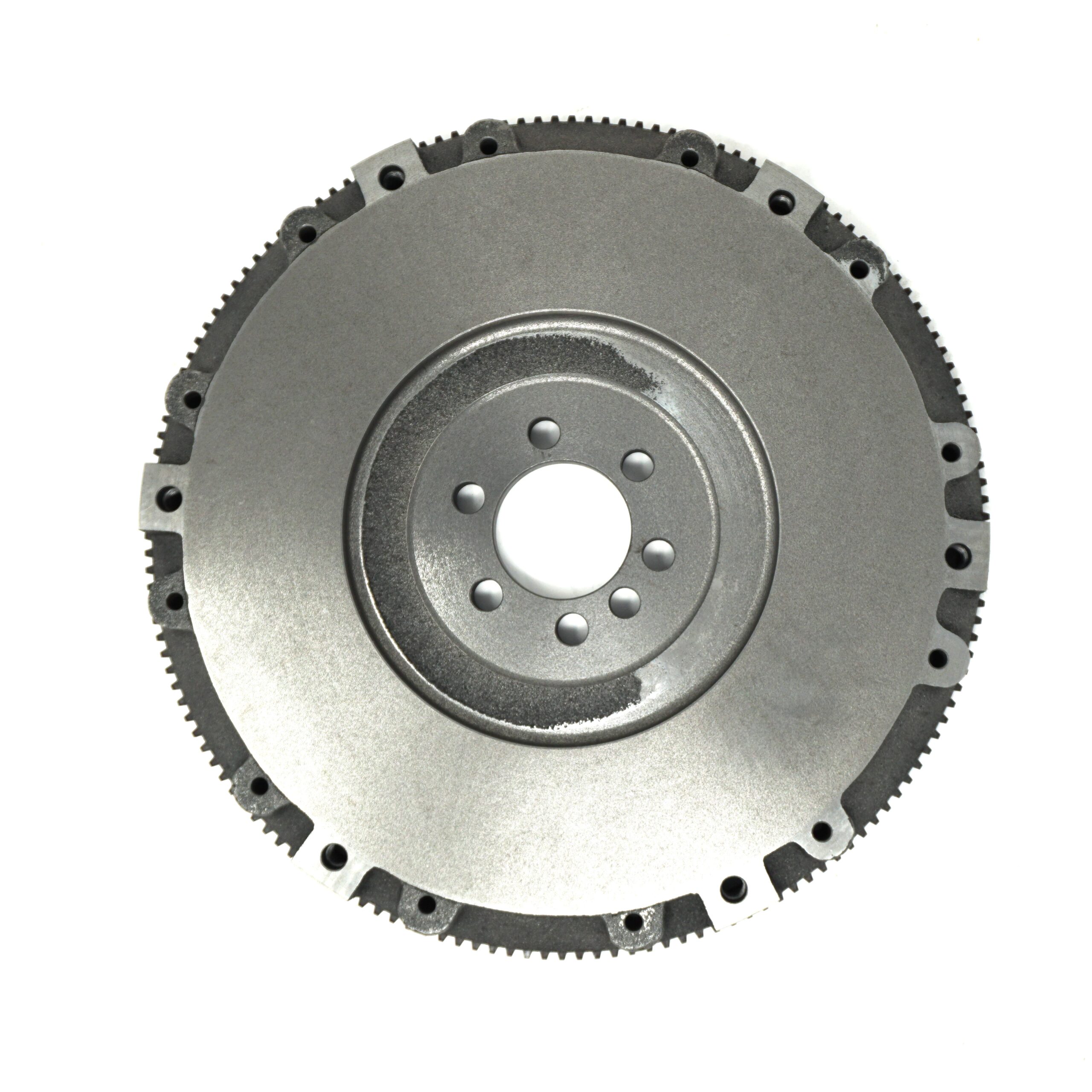

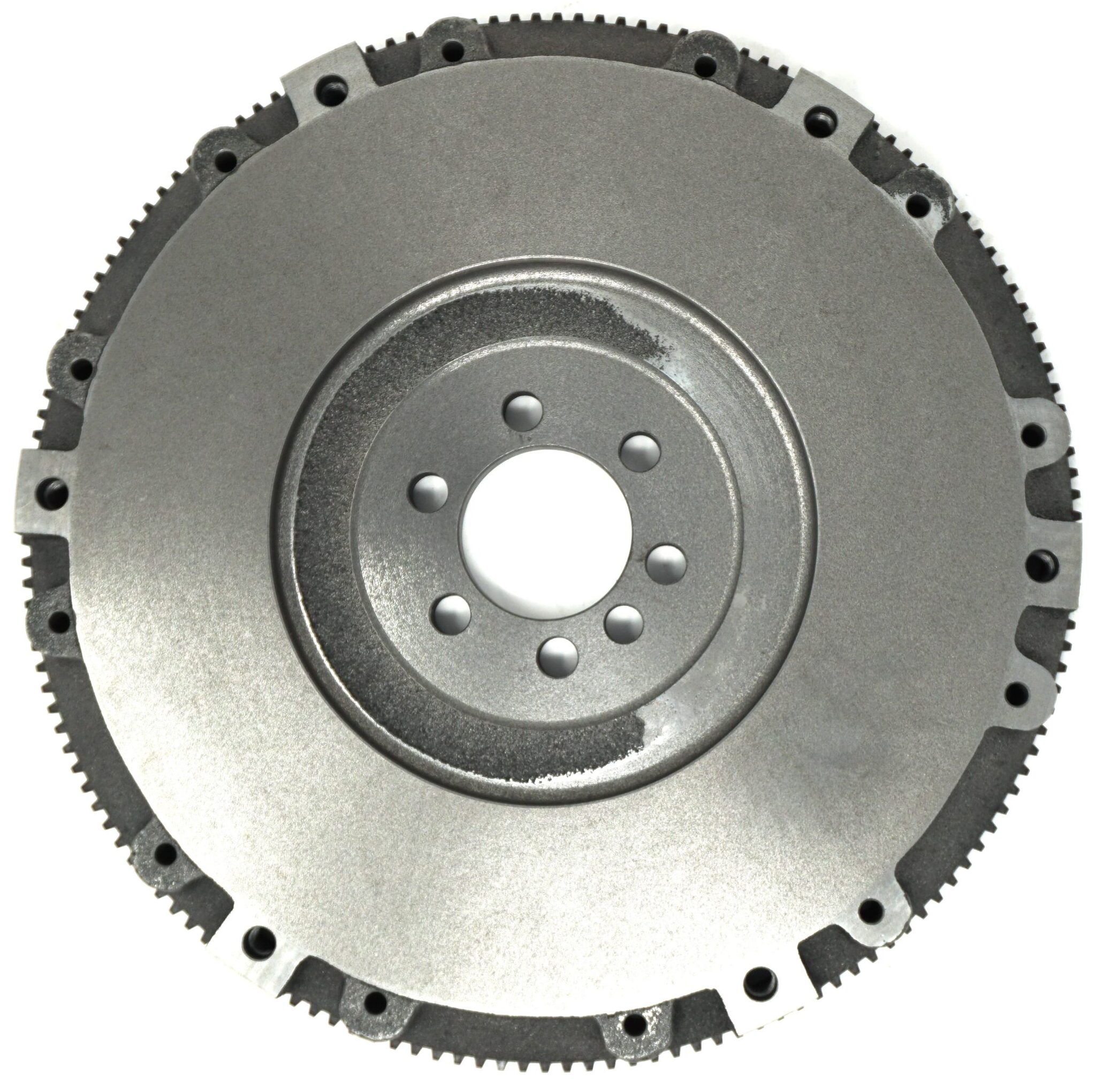

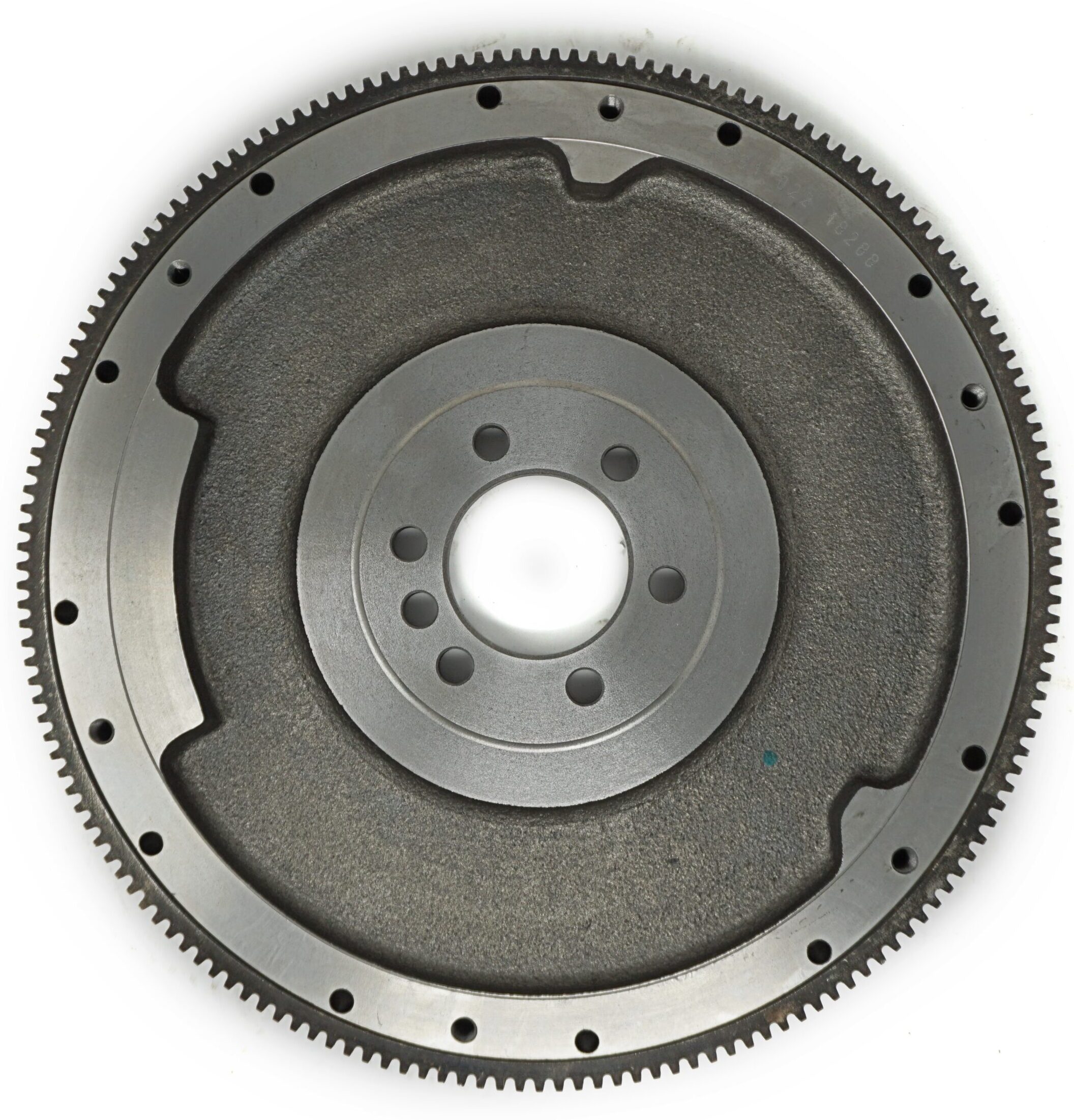

Chevrolet, GMC Solid Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

Weight 17.5 lbs
Dimensions 15 × 14 × 2 in

Flywheel Specifications

Flywheel TypeSolid
Cover Assembly Bolt Circle Dia.11 -5/8''
Cover Assembly Bolt Hole Size3/8''
Cover Assembly Bolt Pattern6 Holes Equally Spaced
Crank Mount Bolt Circle Dia.3''
Crankshaft Mount Hole Qty.7
Tooth Qty.153
Step Config.Flat
Flywheel Step (In.)0.00''

Vehicle Fitment

Year
Make
Model
Engine
Notes
1987-1992
Chevrolet
Camaro, Z28
8 Cyl 5.7L 350"
1985-1988
Chevrolet
Corvette
8 Cyl 5.7L 350"
1987-1992
Pontiac
Firebird, Trans Am
8 Cyl 5.7L 350"
