Description

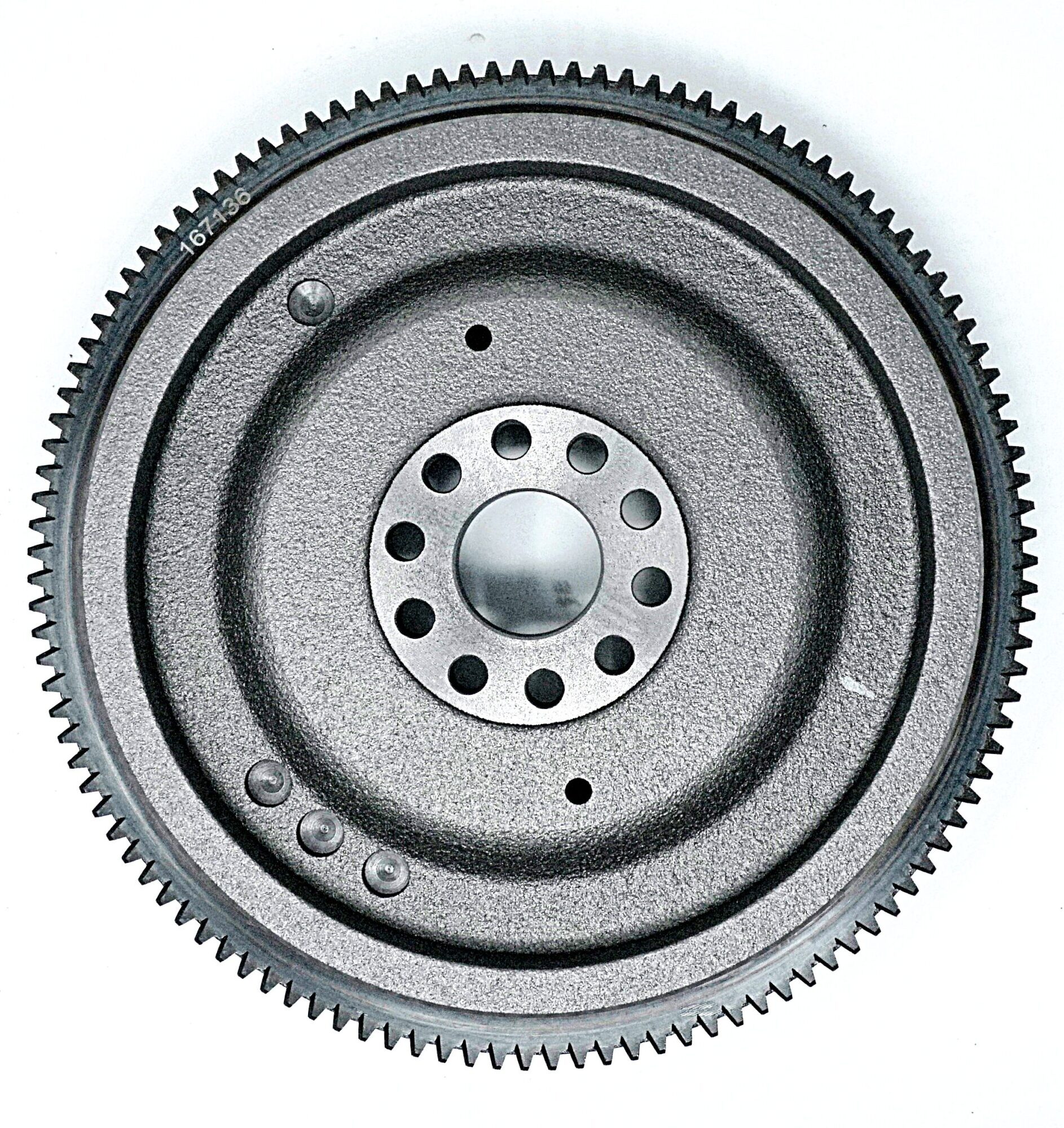

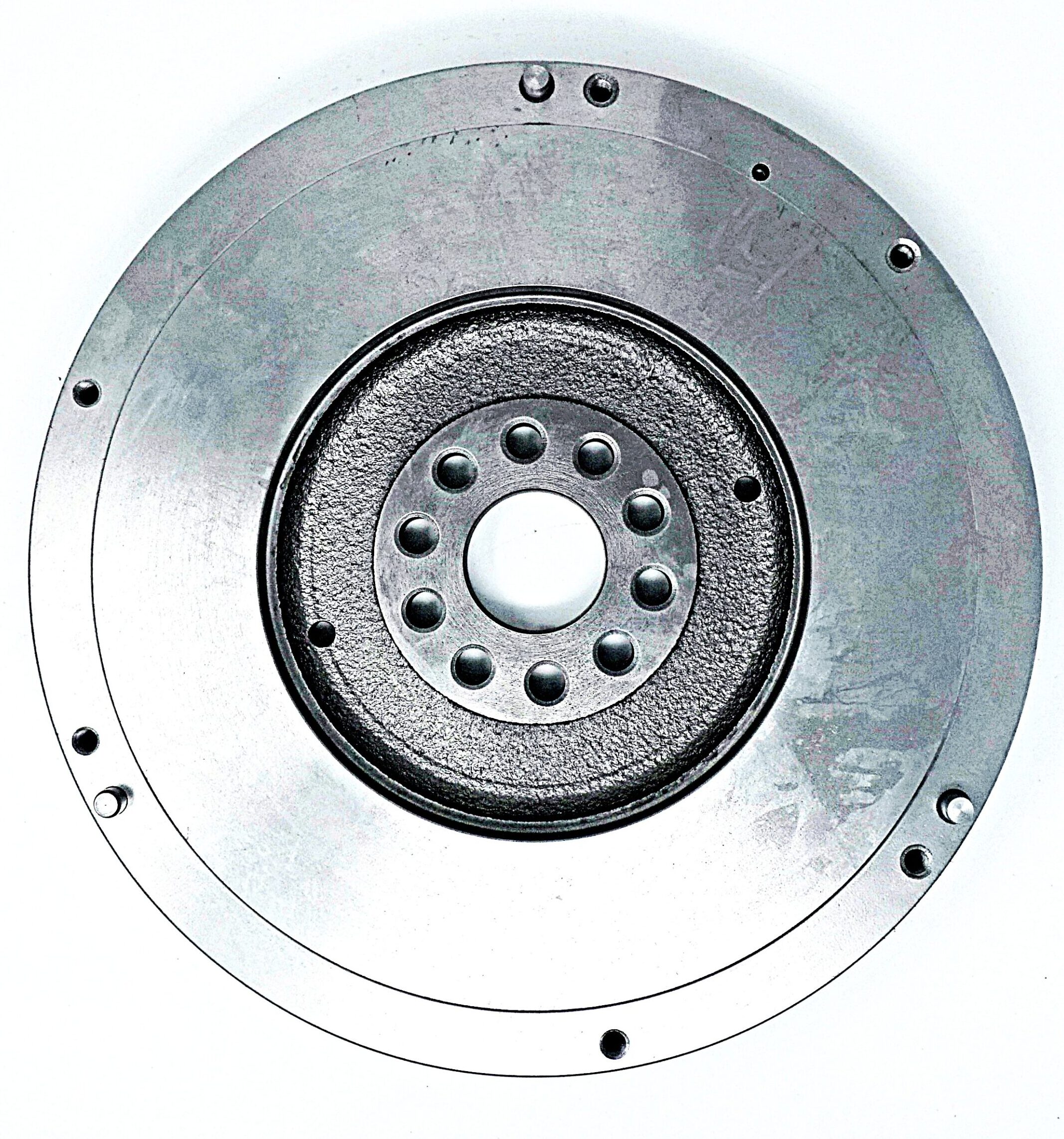

Toyota Solid Flywheel
FW136
FW136
Price:
Additional information
| Weight | 26 lbs |
|---|---|
| Dimensions | 15 × 14 × 2 in |
Flywheel Specifications
| Flywheel Type | Solid |
|---|---|
| Flywheel Ring Gear Outer Dia. | - |
| Flywheel Casting Outer Dia. | - |
| Bore Dia. | - |
| Cover Assembly Bolt Circle Dia. | 10.878 |
| Cover Assembly Bolt Hole Size | M8*1.25 |
| Cover Assembly Bolt Pattern | 6 Holes Groups of 2 |
| Dowel Pin Qty (Cover To Flywheel) | - |
| Dowel Pin Diameter (Cover To Flywheel) | - |
| Crank Mount Bolt Circle Dia. | 2.832 |
| Crankshaft Mount Hole Qty. | 10 |
| Tooth Qty. | 115 |
| Step Config. | Step |
| Flywheel Step (In.) | 0.018 |
Vehicle Fitment
1996-2000 Toyota Light Truck & Van Pick-Up (Including 4-Runner) 4 Cyl 2.7L
1994-1994 Toyota Light Truck & Van T-100 4 Cyl 2.7L
1995-1998 Toyota Light Truck & Van T-100 4 Cyl 2.7L
1995-2004 Toyota Light Truck & Van Tacoma 4 Cyl 2.7L
