FW108

FW108

FW108

Brand: Platinum Driveline, Inc.
Category:
On Hand: 1

Price:

Description

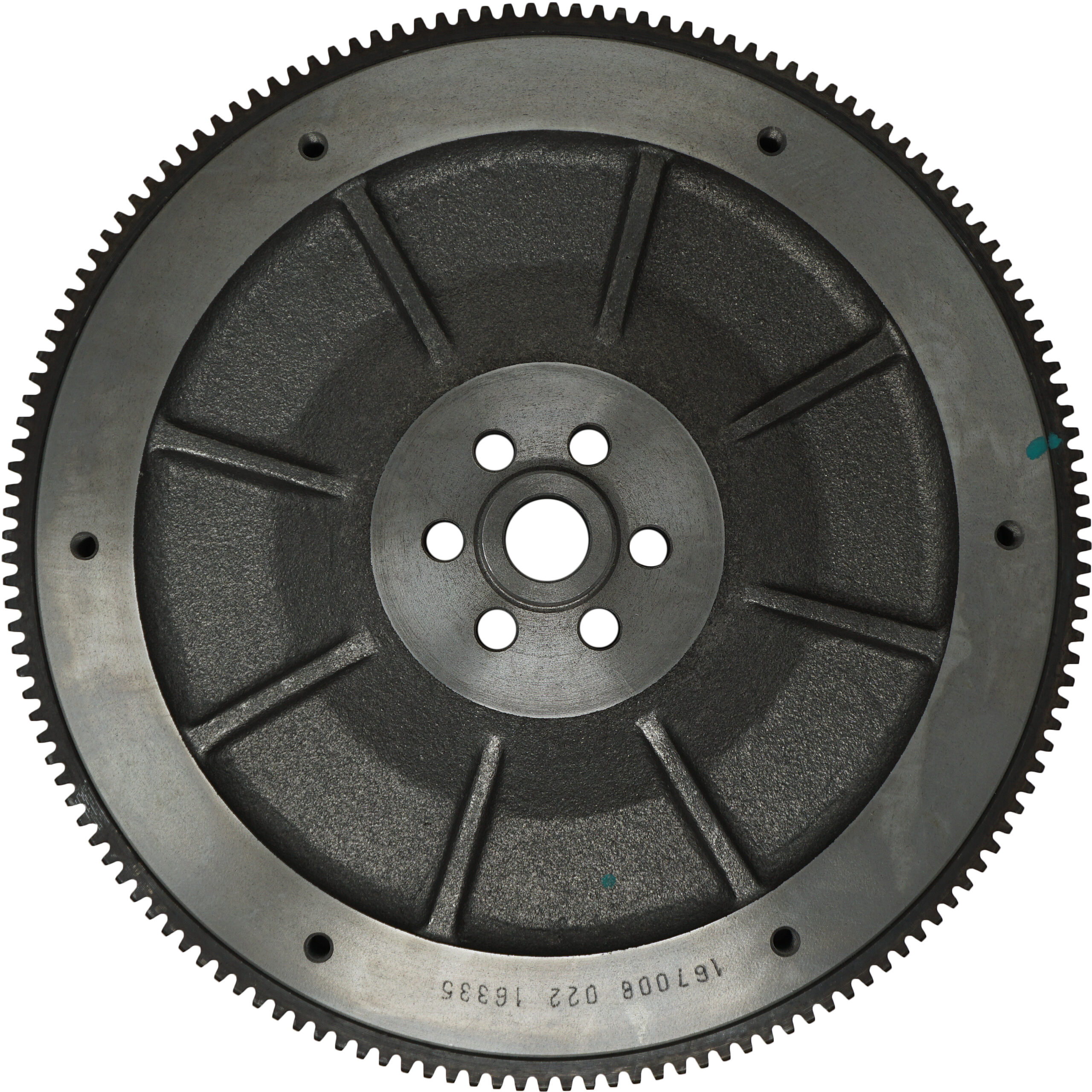

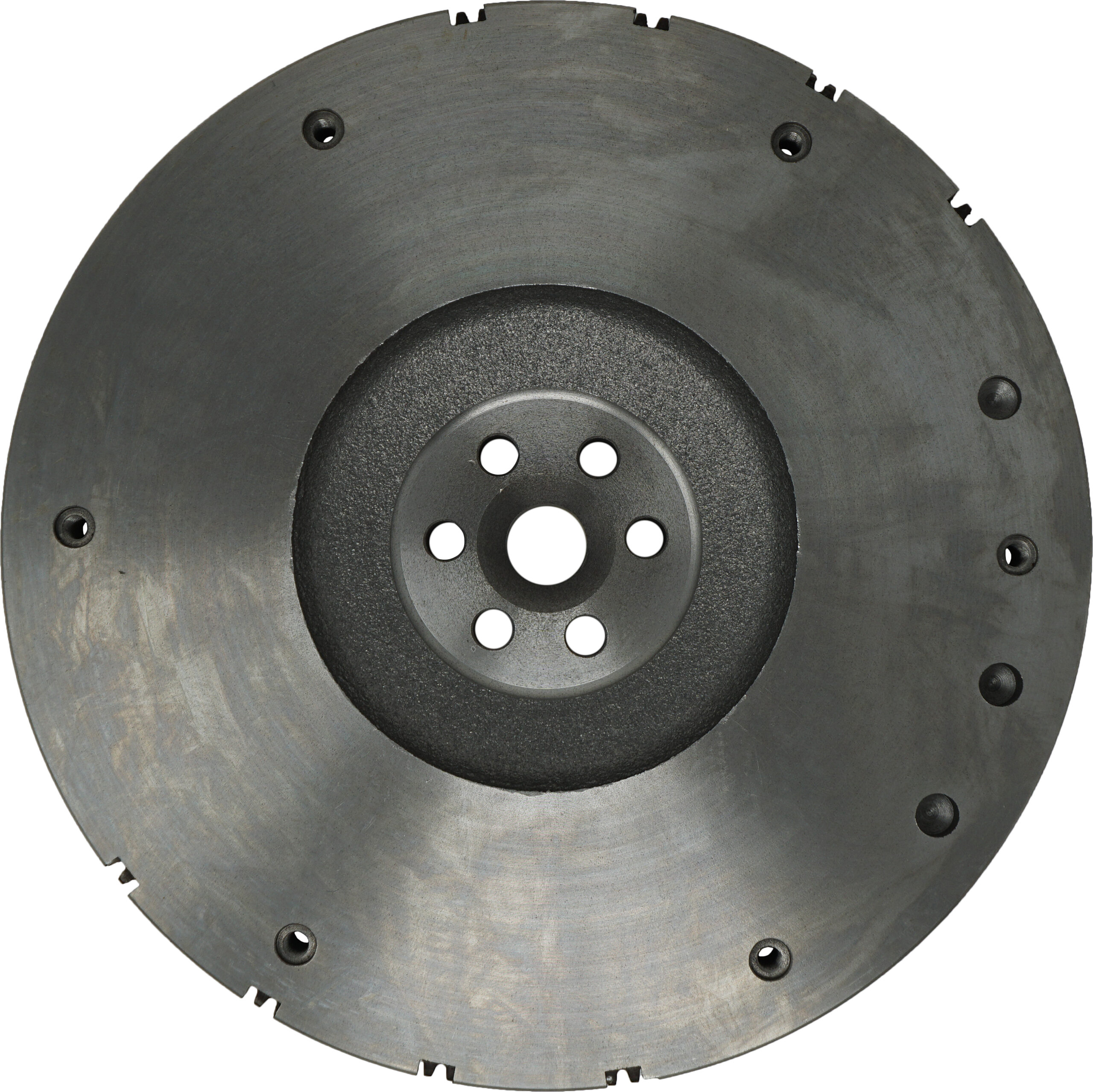

Toyota Solid Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

Weight 18.5 lbs
Dimensions 15 × 14 × 2 in

Flywheel Specifications

Flywheel TypeSolid
Cover Assembly Bolt Circle Dia.10-3/8''
Cover Assembly Bolt Hole SizeM8*1.25
Cover Assembly Bolt Pattern6 Holes Equally Spaced
Crank Mount Bolt Circle Dia.2 -5/8''
Crankshaft Mount Hole Qty.8
Tooth Qty.120
Step Config.Step
Flywheel Step (In.)0.020''

Vehicle Fitment

Year
Make
Model
Engine
Notes
1989-1990
Toyota
Camry
4 Cyl 2.0L 1998cc
From 6/89 To 4/90
1990-1991
Toyota
Camry
4 Cyl 2.0L 1998cc
From 5/90
1990-1990
Toyota
Celica
4 Cyl 2.2L 2164cc
To 4/90
1990-1993
Toyota
Celica
4 Cyl 2.2L 2164cc
From 5/90
1994-1999
Toyota
Celica
4 Cyl 2.2L 2164cc
1991-1991
Toyota
MR-2
4 Cyl 2.2L 2164cc
From 6/90 To 12/91
1992-1995
Toyota
MR-2
4 Cyl 2.2L 2164cc
From 1/92
1999-2001
Toyota
Solara
4 Cyl 2.2L 2164cc
