FW030

FW030

FW030

Brand: Platinum Driveline, Inc.
Category:
On Hand: 11

Price:

Description

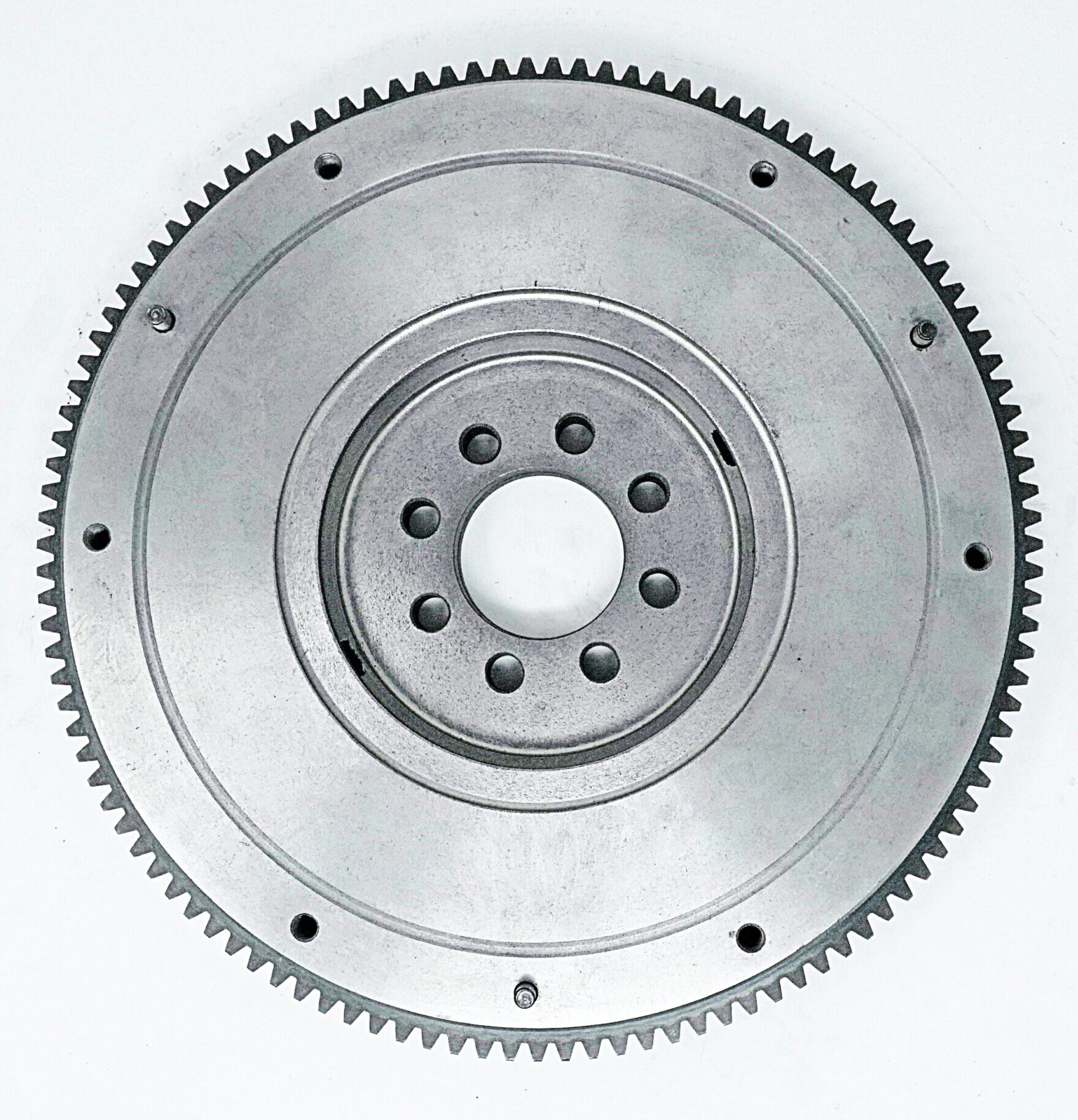

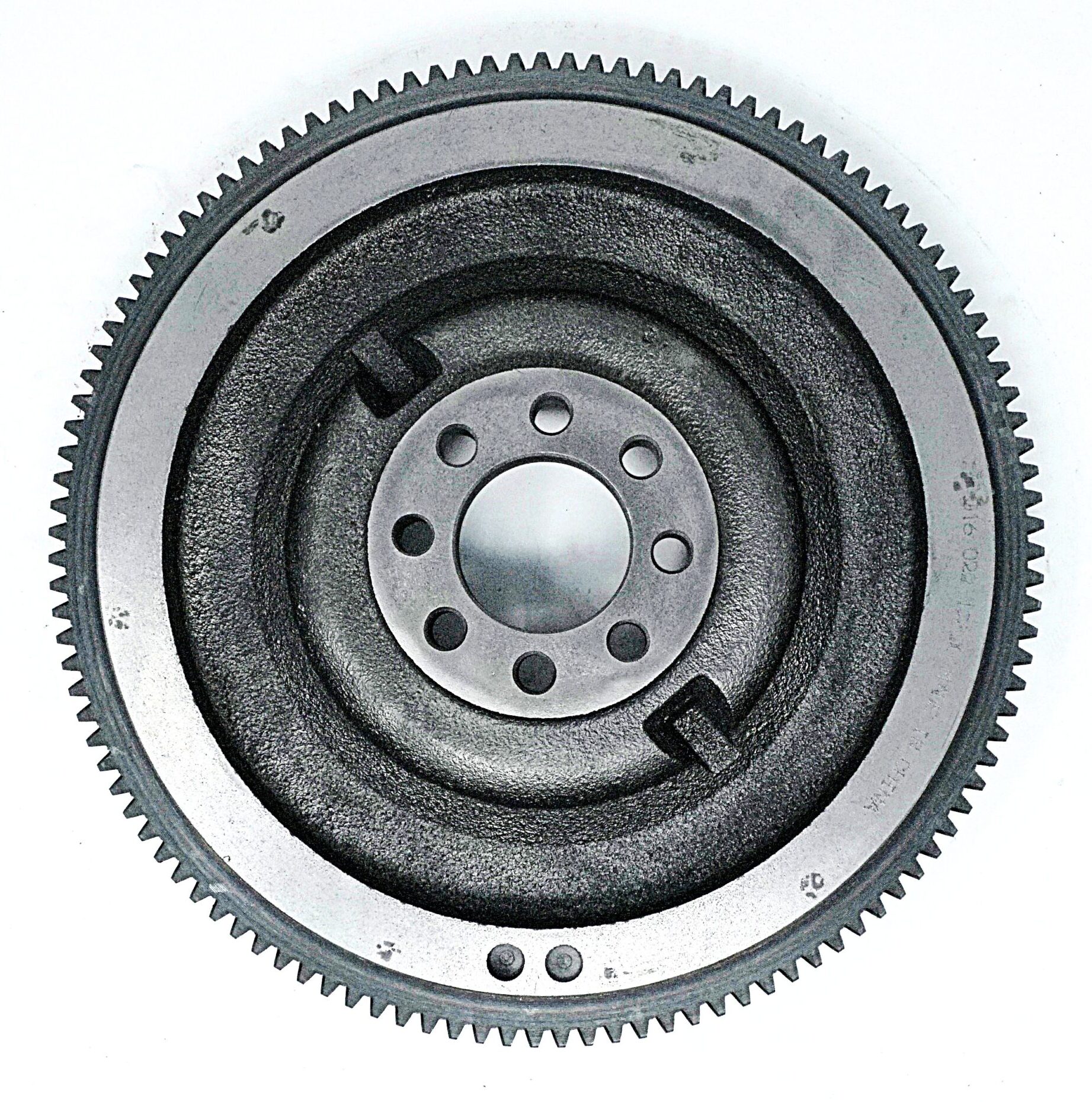

Isuzu Solid Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

Weight 19.5 lbs
Dimensions 15 × 14 × 2 in

Flywheel Specifications

Flywheel TypeSolid
Cover Assembly Bolt Circle Dia.9-7/8''
Cover Assembly Bolt Hole SizeM8*1.25
Cover Assembly Bolt Pattern6 Holes Equally Spaced
Crank Mount Bolt Circle Dia.2-15/16''
Crankshaft Mount Hole Qty.8
Tooth Qty.115
Step Config.Step
Flywheel Step (In.)-0.005''

Vehicle Fitment

Year
Make
Model
Engine
Notes
1989-1993
Isuzu
Amigo
4 Cyl 2.3L 2254cc
1988-1989
Isuzu
Impulse
4 Cyl 2.3L 2300cc
1983-1987
Isuzu
Pick-Up
4 Cyl 1.9L 1949cc
1986-1995
Isuzu
Pick-Up
4 Cyl 2.3L 2300cc
1986-1986
Isuzu
Trooper
4 Cyl 2.3L 2300cc
To 10/86
1987-1987
Isuzu
Trooper
4 Cyl 2.3L 2300cc
From 11/86
