DMF175

DMF175

DMF175

Brand: Platinum Driveline, Inc.
Category:
On Hand: 1

Price:

Description

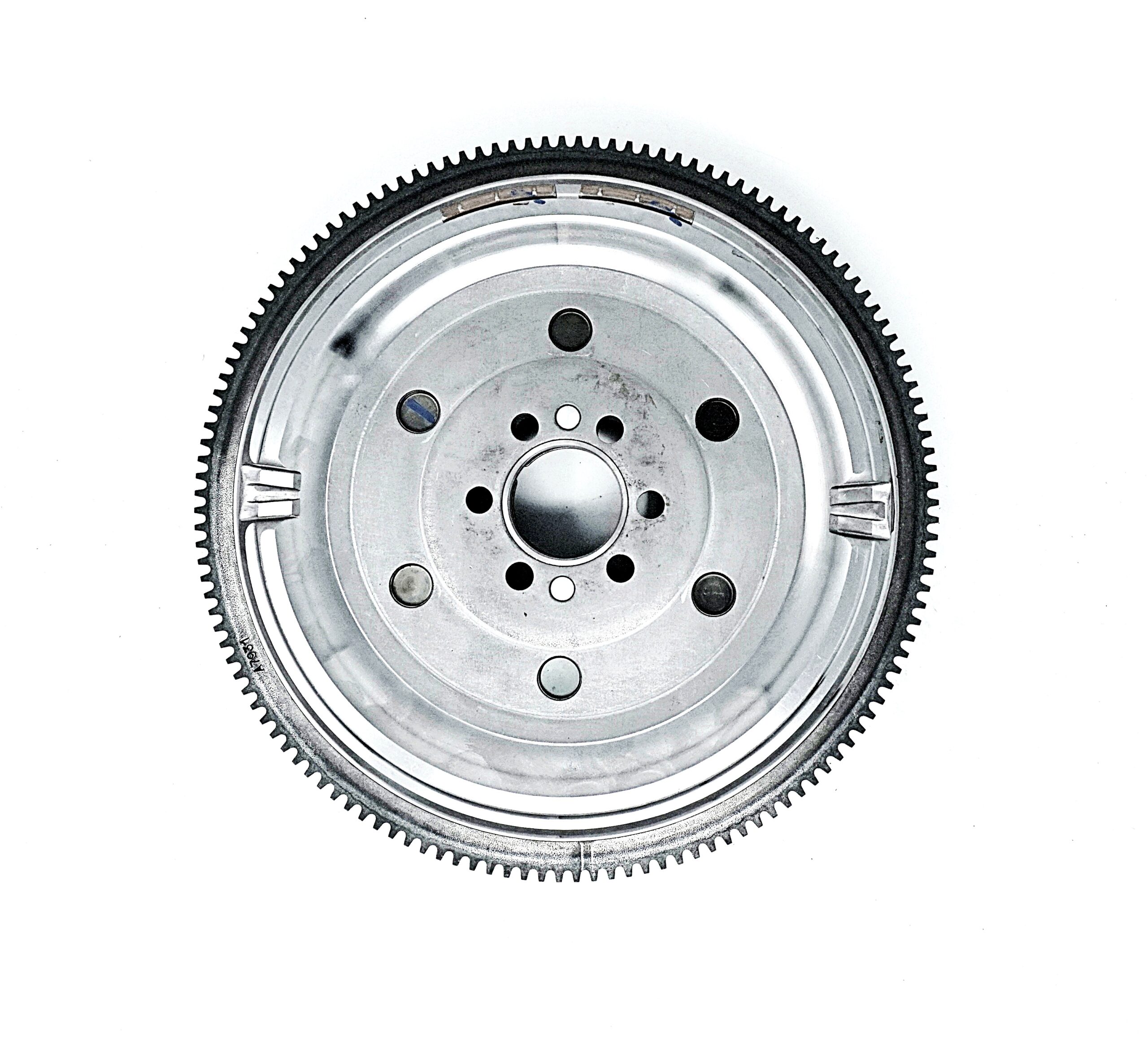

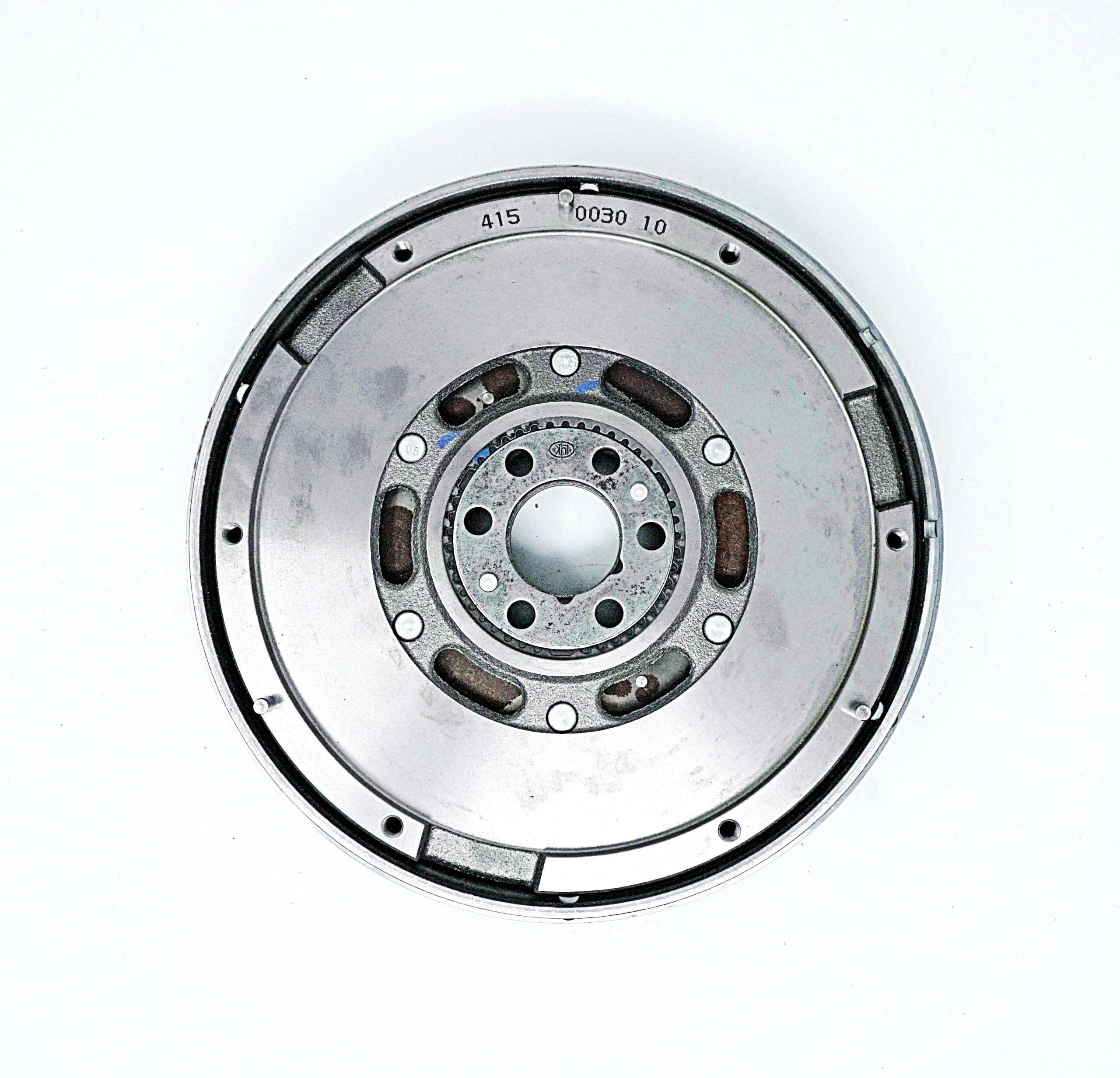

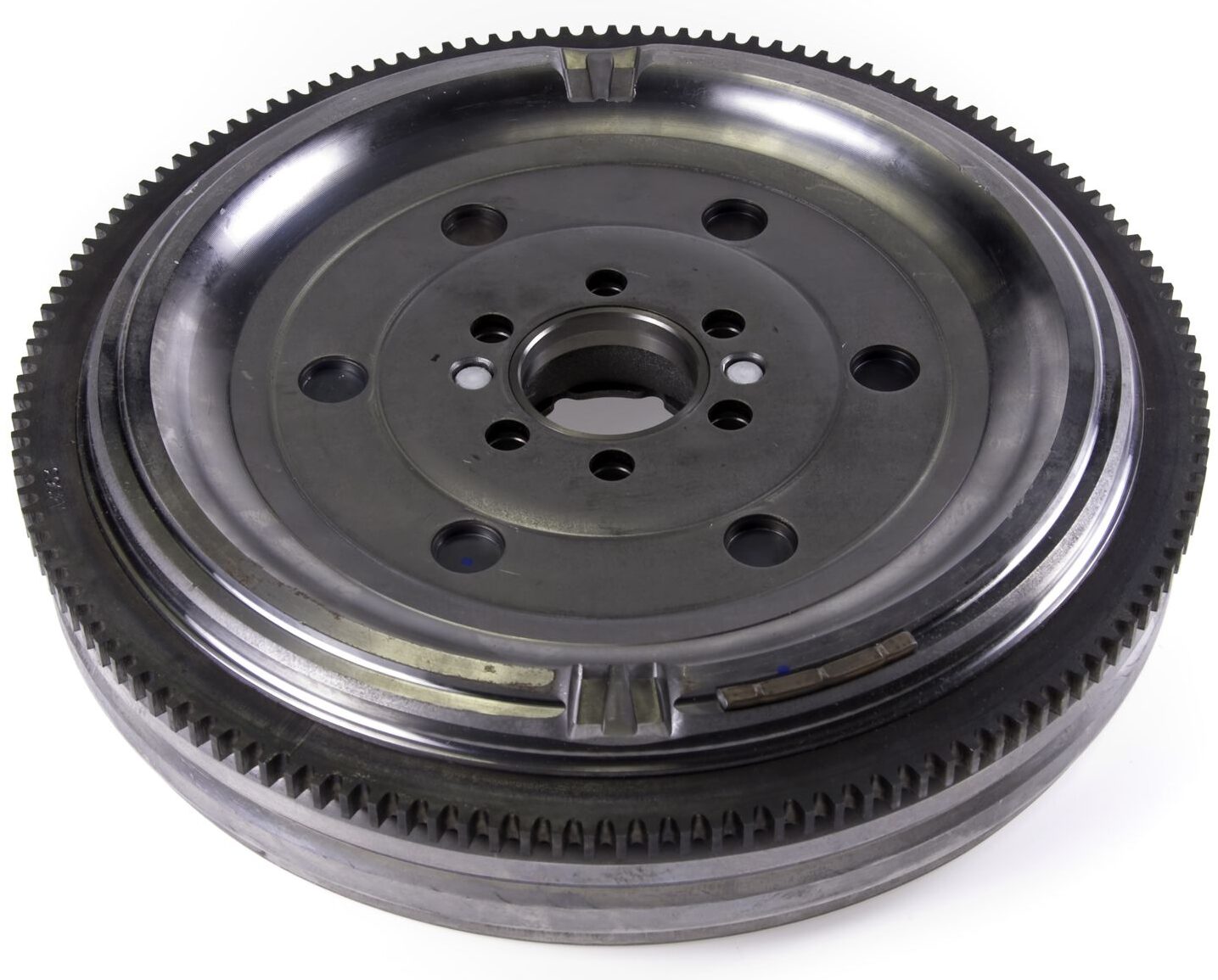

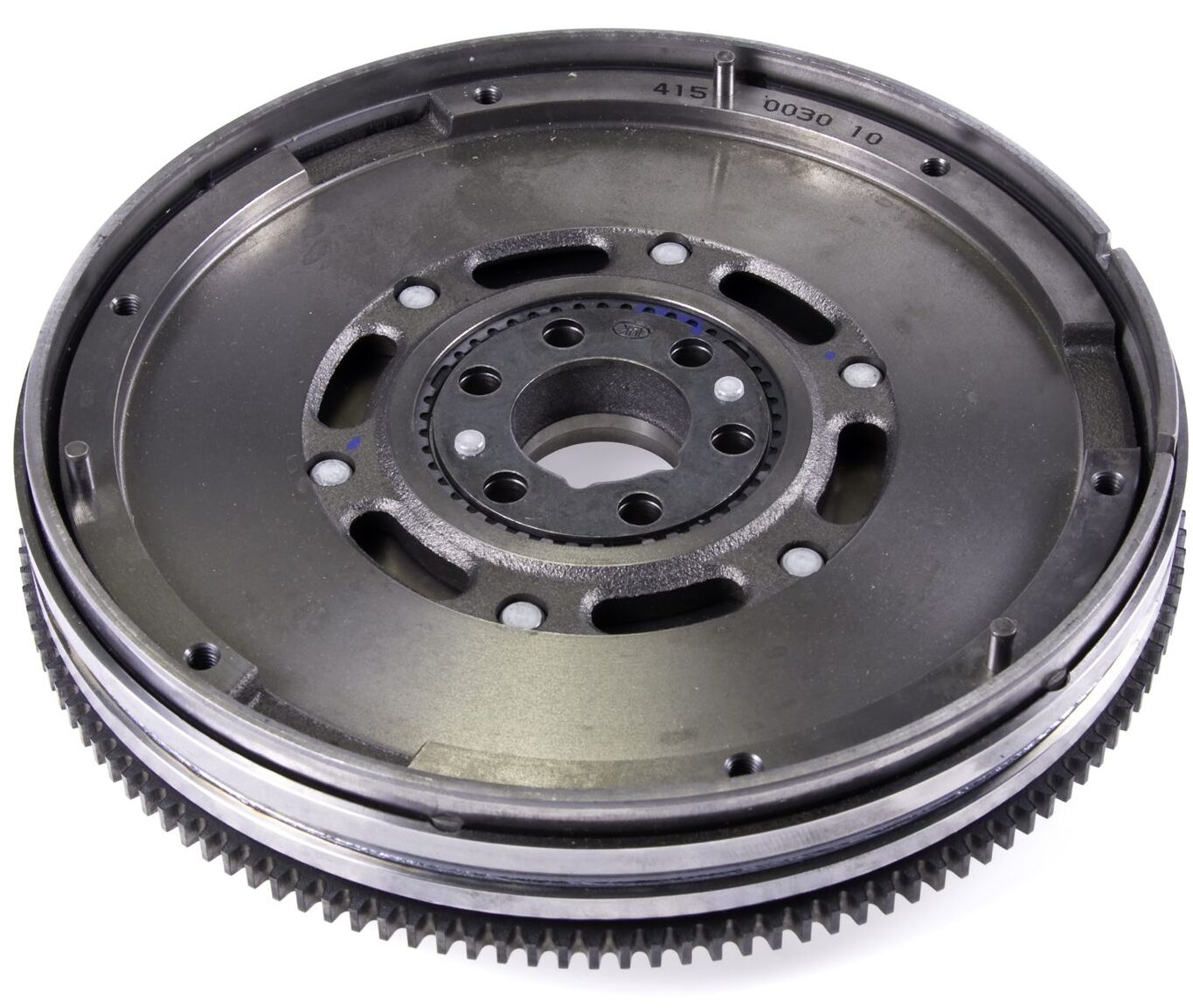

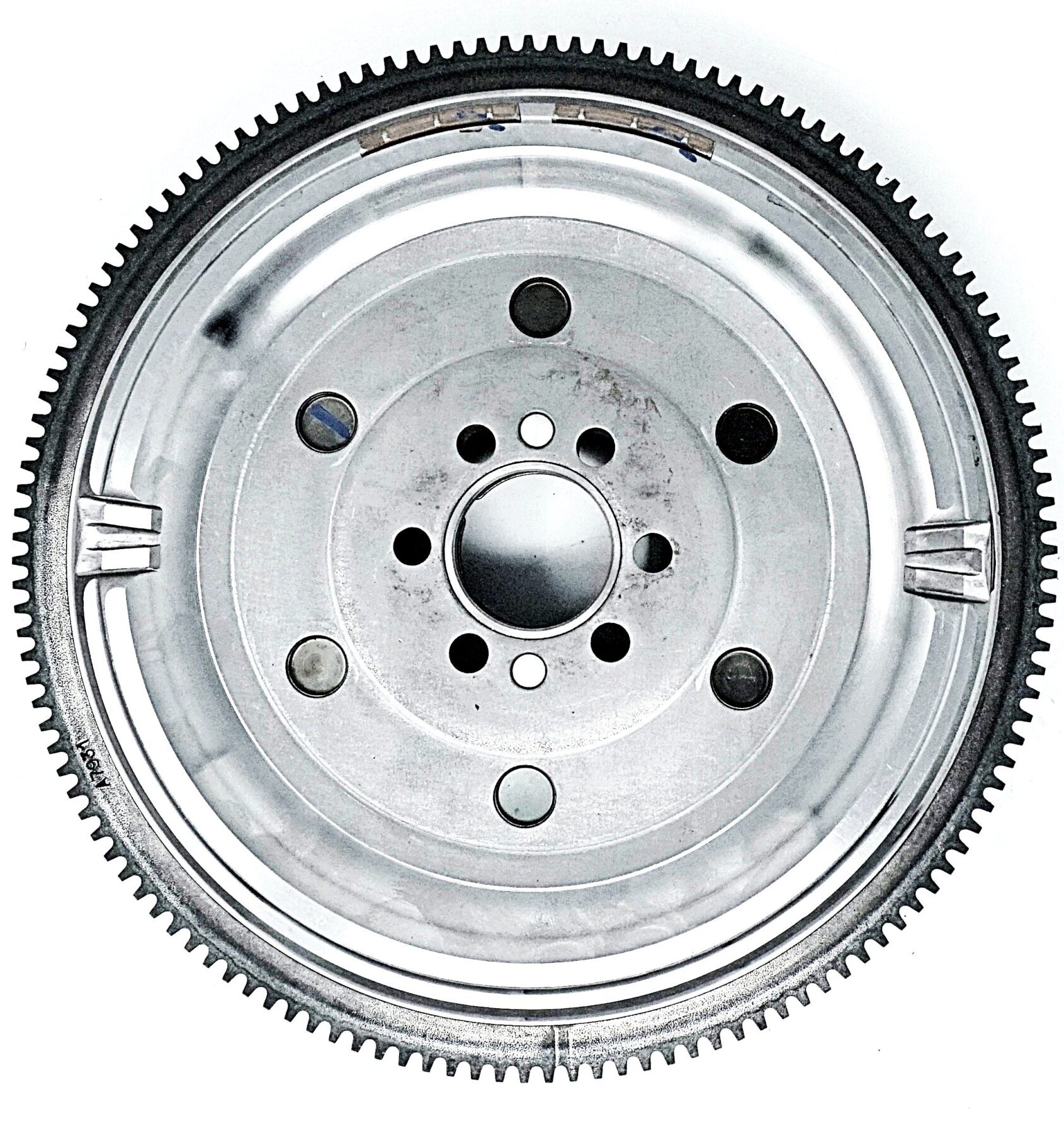

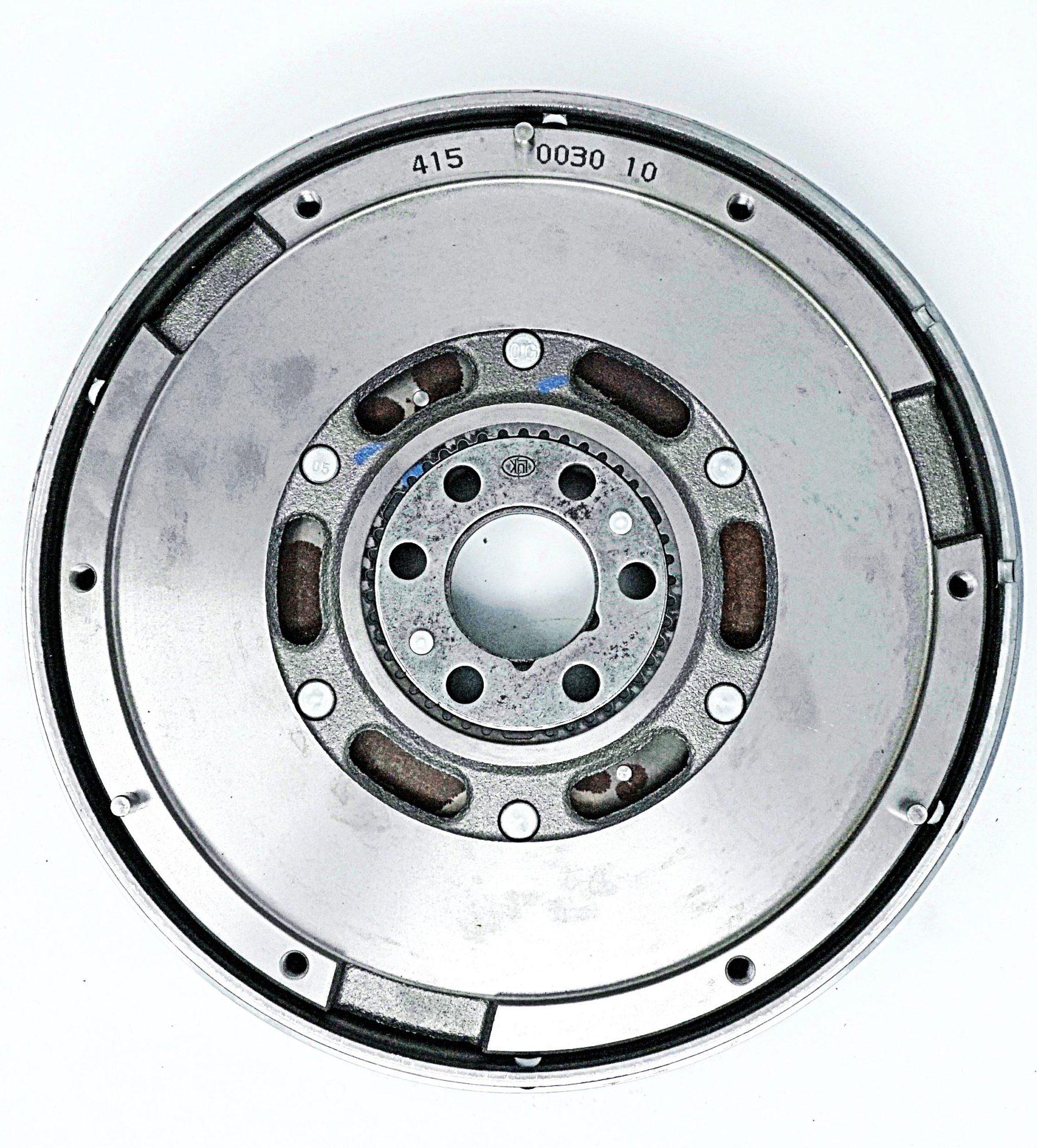

Audi, Volkswagen Dual Mass Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

Weight 25 lbs
Dimensions 15 × 14 × 2 in

Flywheel Specifications

Flywheel TypeDual Mass Flywheel
Cover Assembly Bolt Circle Dia.9-3/16''
Cover Assembly Bolt Hole SizeM8*1.25
Cover Assembly Bolt Pattern6 Holes Groups of 2
Crank Mount Bolt Circle Dia.1 -3/4''
Crankshaft Mount Hole Qty.6
Tooth Qty.135
Step Config.Step
Flywheel Step (In.)0.333''

Vehicle Fitment

Year
Make
Model
Engine
Notes
1997-1997
Audi
A4, A4 Quattro
4 Cyl 1.8L 1781cc
To Ch #8DV180 000
1997-1999
Audi
A4, A4 Quattro
4 Cyl 1.8L 1781cc
From Ch #8DV180 001
1998-1999
Volkswagen
Passat
4 Cyl 1.8L 1781cc
Turbo
