DMF174

DMF174

DMF174

Brand: Platinum Driveline, Inc.
Category:
On Hand: 1

Price:

Description

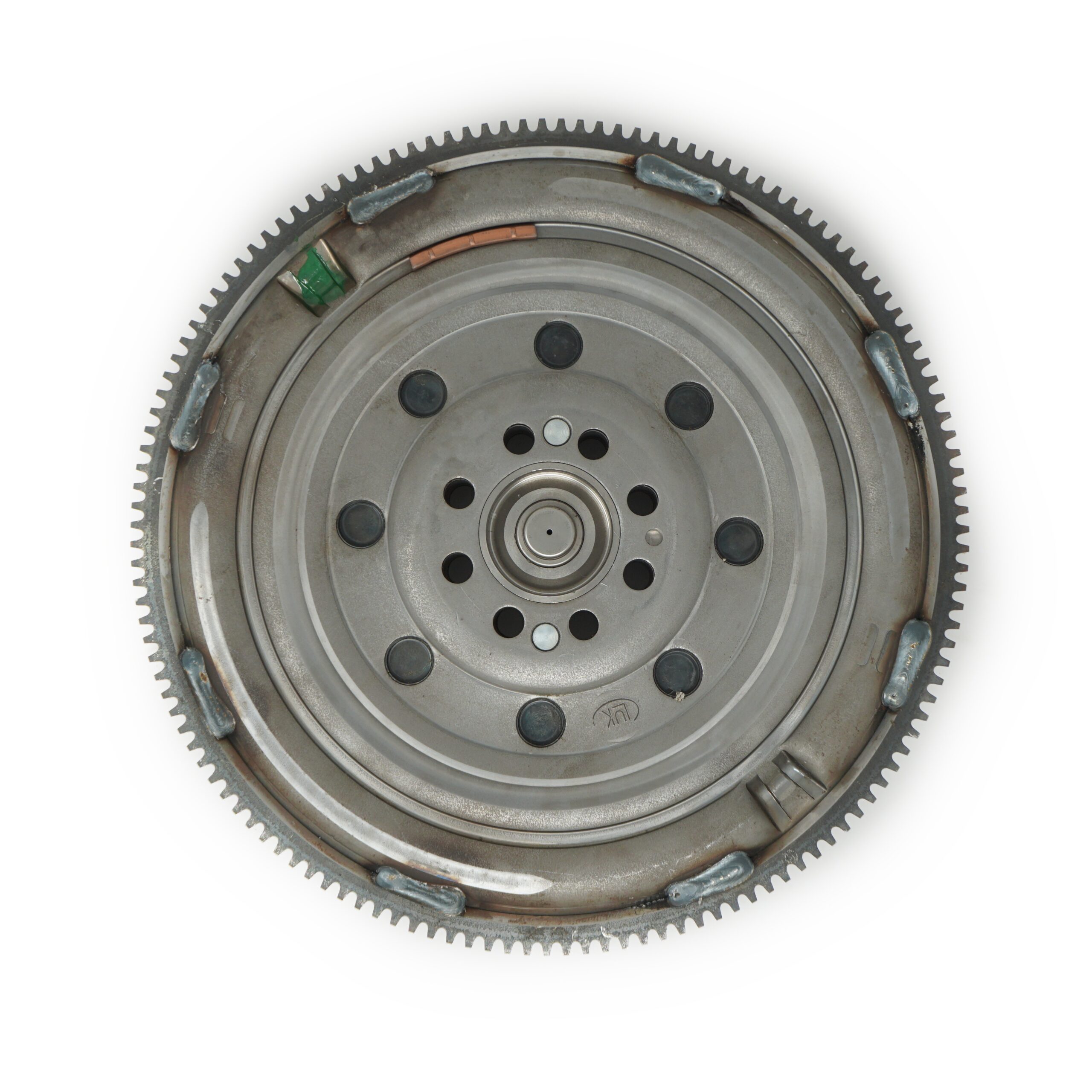

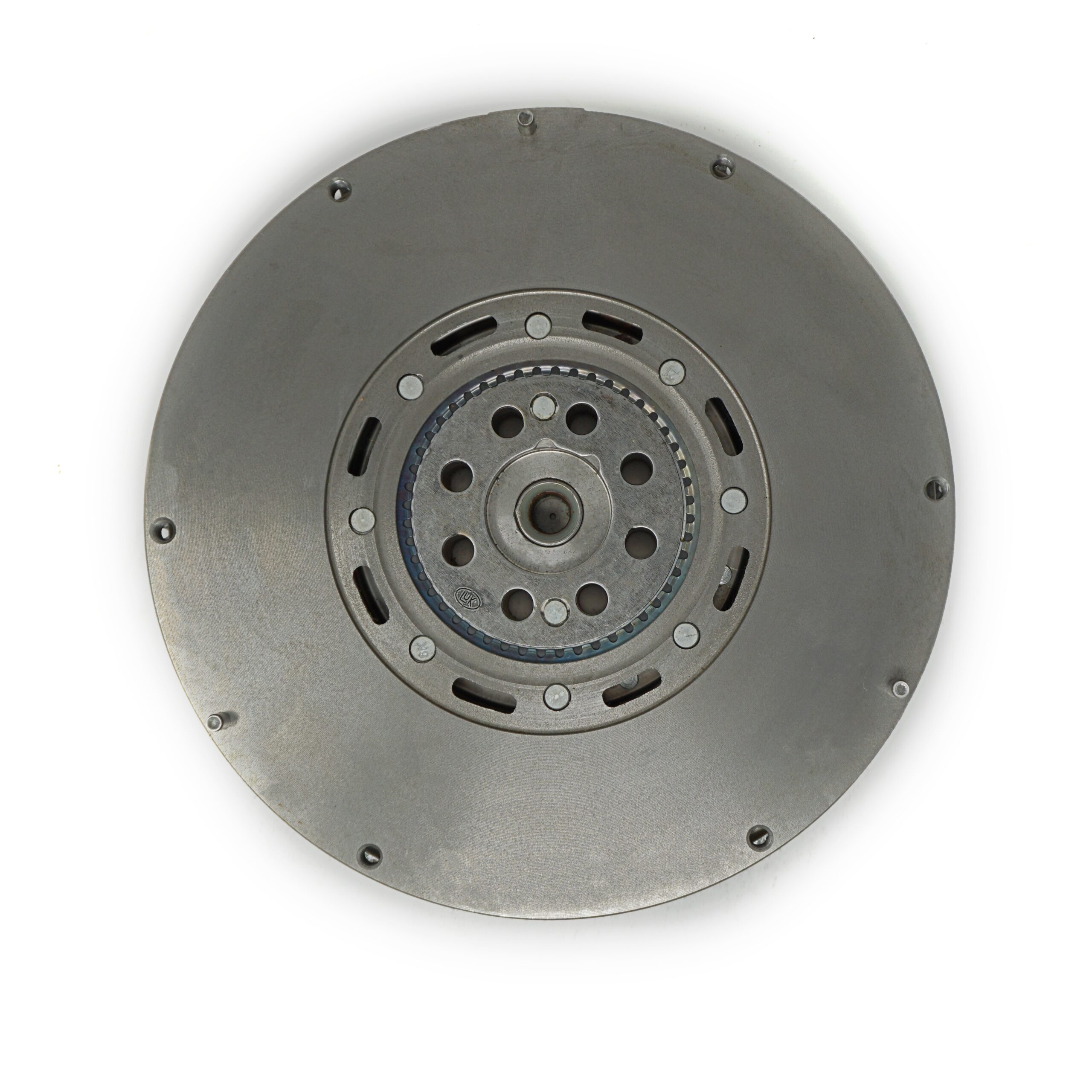

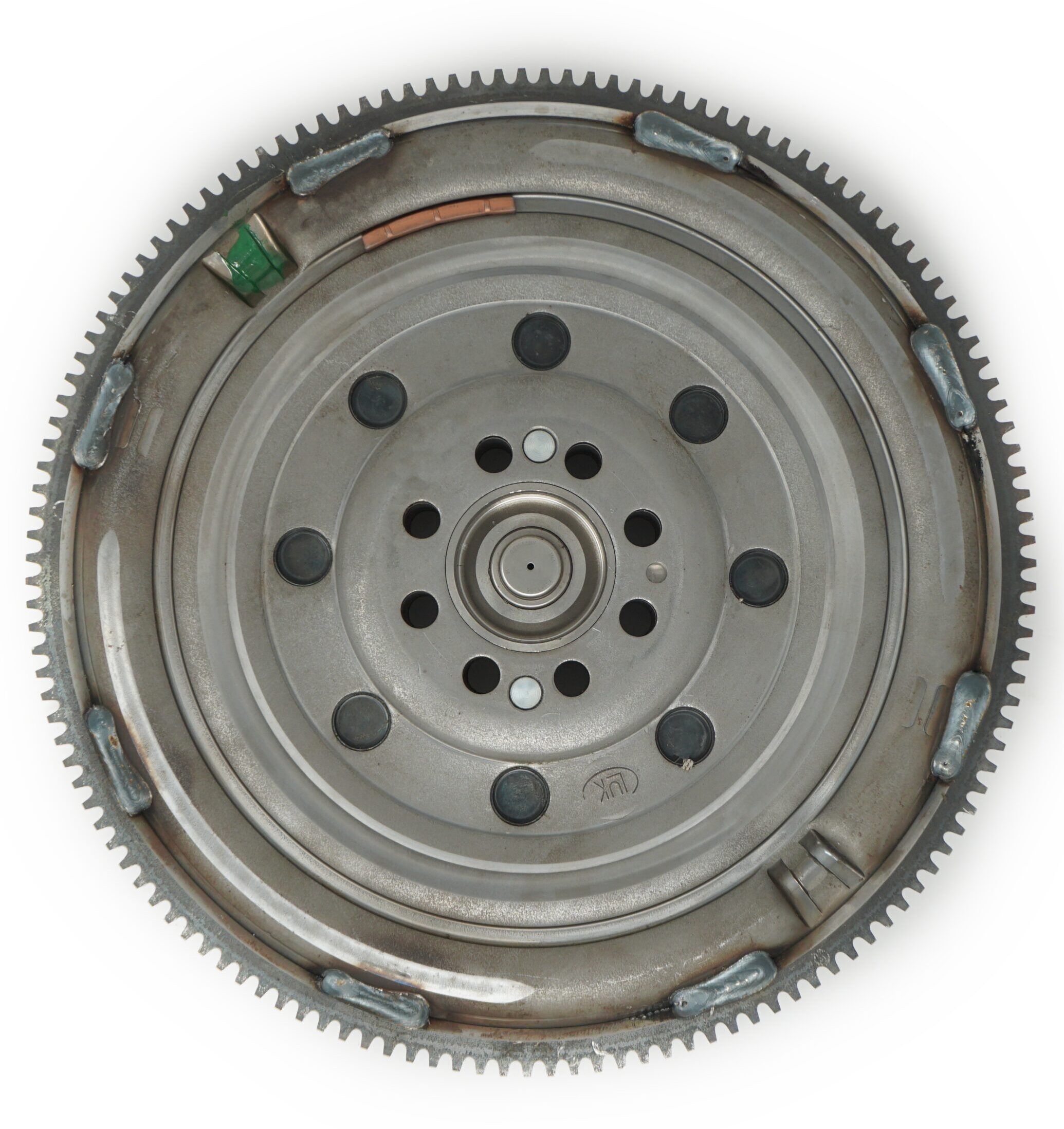

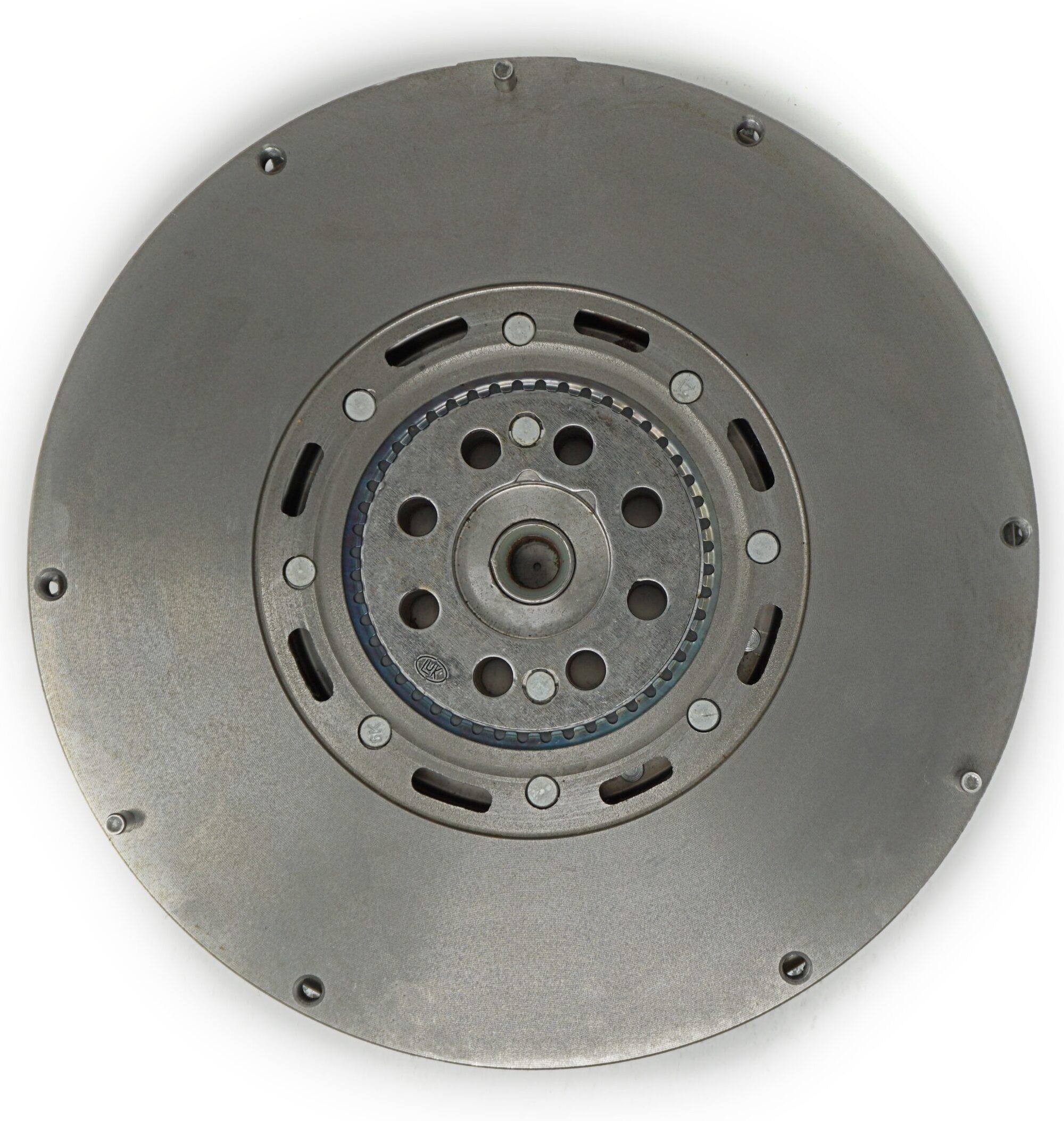

Audi, VW Dual Mass Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

Weight 26 lbs
Dimensions 15 × 14 × 2 in

Flywheel Specifications

Flywheel TypeDual Mass Flywheel
Cover Assembly Bolt Circle Dia.10-7/16''
Cover Assembly Bolt Hole SizeM8*1.25
Cover Assembly Bolt Pattern6 Holes Equally Spaced
Crank Mount Bolt Circle Dia.2-11/16''
Crankshaft Mount Hole Qty.8
Tooth Qty.135
Step Config.Flat
Flywheel Step (In.)0.00''

Vehicle Fitment

Year
Make
Model
Engine
Notes
1997-1999
Audi
A4, A4 Quattro
6 Cyl 2.8L 2771cc
AHA engine, From Ch #8DV180 001
2000-2001
Audi
A4, A4 Quattro
6 Cyl 2.8L 2771cc
ATQ engine
1998-1998
Audi
A6, A6 Quattro
6 Cyl 2.8L 2771cc
AHA Engine
1999-2001
Audi
A6, A6 Quattro
6 Cyl 2.8L 2771cc
1998-2005
Volkswagen
Passat
6 Cyl 2.8L 2771cc
