DMF171

DMF171

DMF171

Brand: Platinum Driveline, Inc.
Category:

Contact Platinum for Price and Availability

Description

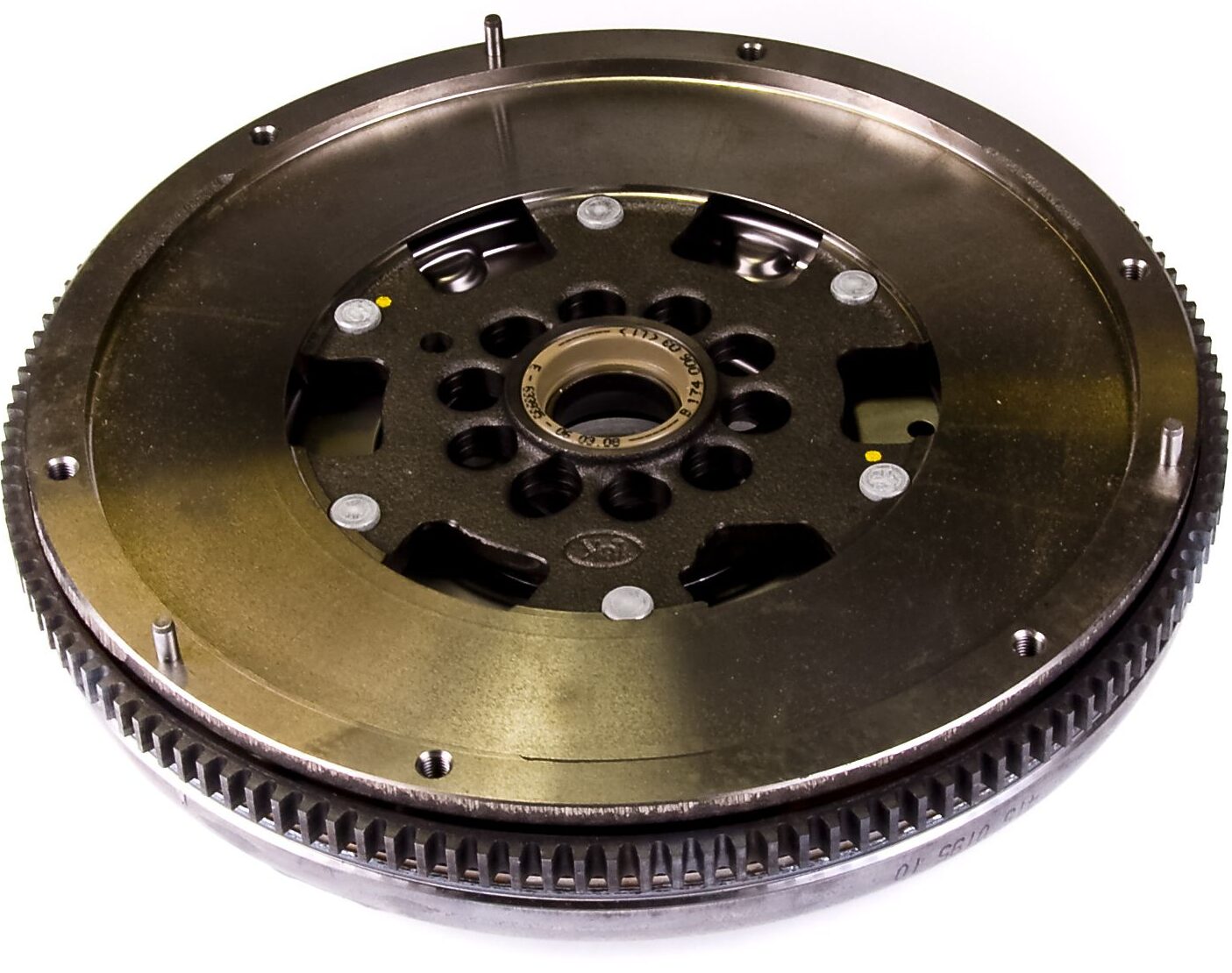

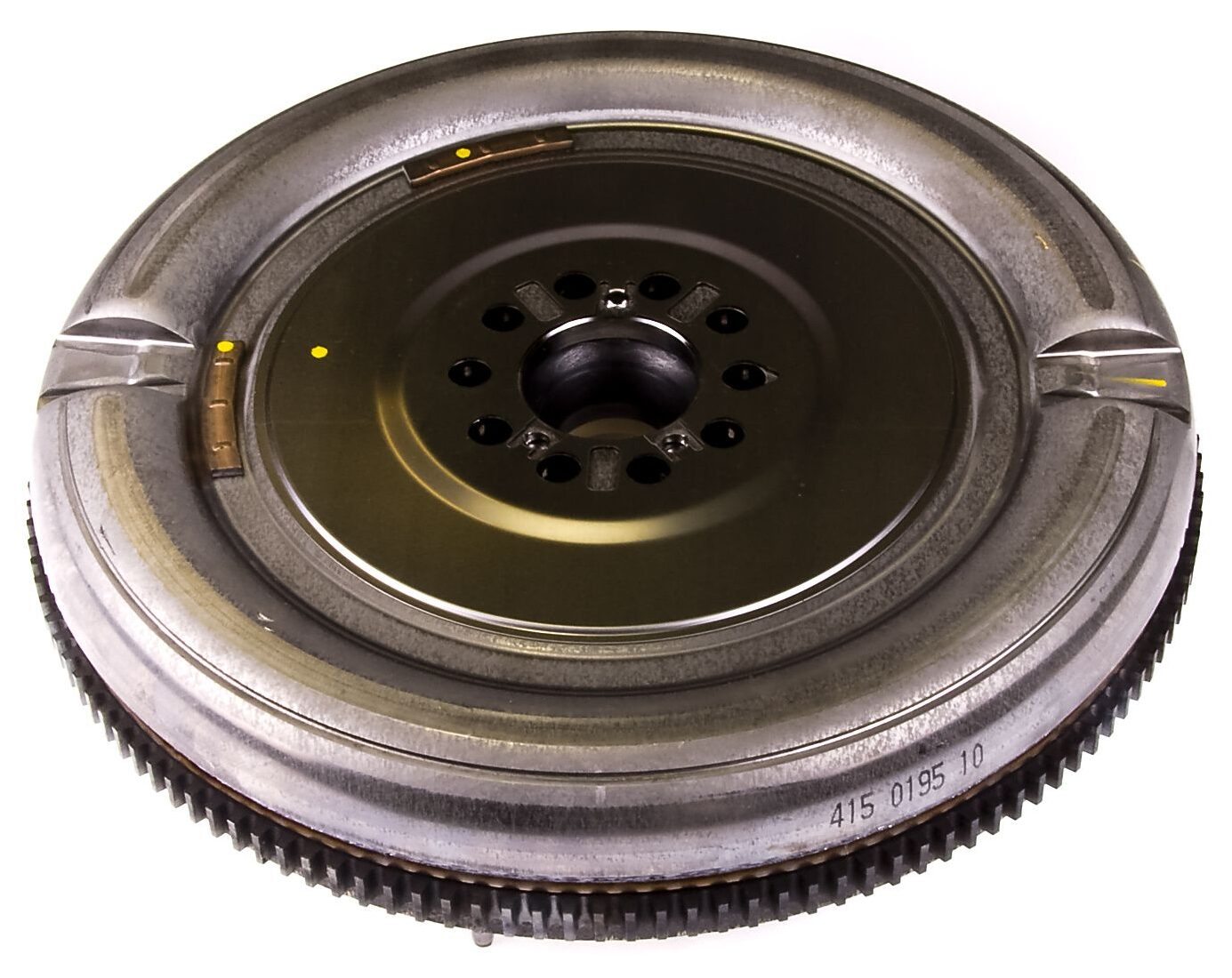

Volkswagen Dual Mass Flywheel

Product Overview

Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.

Additional information

UPC 84972101344
Weight 25.57 lbs
Dimensions 14 × 14.75 × 2.75 in

Flywheel Specifications

Flywheel TypeDual Mass Flywheel
Cover Assembly Bolt Circle Dia.10-3/16''
Cover Assembly Bolt Hole SizeM8*1.25
Cover Assembly Bolt Pattern6 Holes Equally Spaced
Crank Mount Bolt Circle Dia.2-11/16''
Crankshaft Mount Hole Qty.10
Tooth Qty.125
Step Config.Step
Flywheel Step (In.)0.248''

Vehicle Fitment

Year
Make
Model
Engine
Notes
2004
Volkswagen
Golf
6 Cyl 3.2L 3189cc
R32, BJS Engine 24-Valve 6-Speed
2004
Volkswagen
Golf GTI
6 Cyl 3.2L 3189cc
R32, BJS Engine 24-Valve 6-Speed
