Description

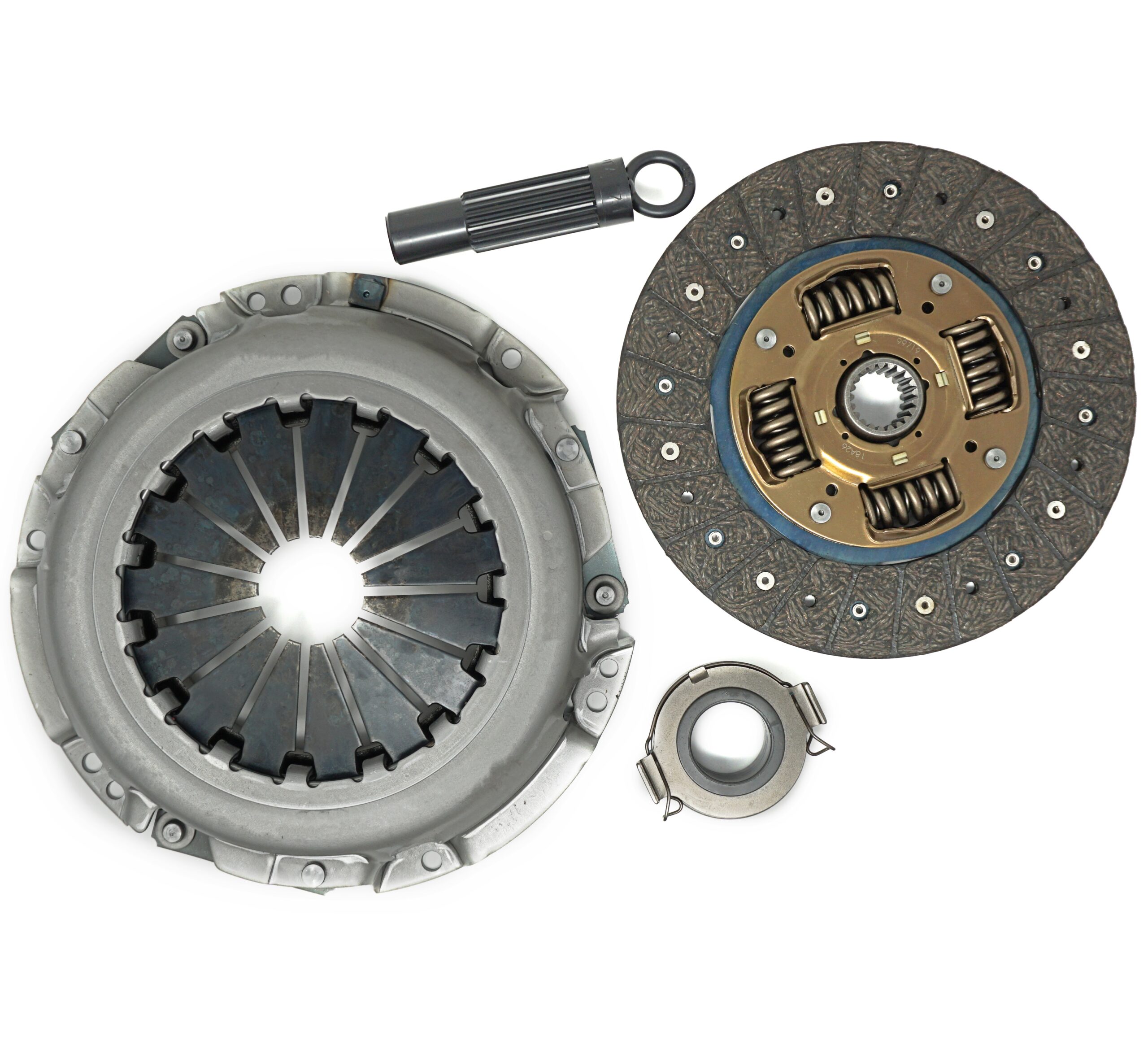

9-3/8″ Lexus, Toyota Clutch Kit
16-082
16-082
Price:
Additional information
| Weight | 16 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 9-1/4'' |
| Clutch Disc Lining Inner Dia. | 5-3/4'' |
| Spring Retainer Outer Dia. | 5-1/4'' |
| Clutch Disc Spline Size | 1-1/8'' |
| Clutch Disc Spline Teeth | 21 |
| Clutch Disc Free Thickness | 0.334'' |
| Clutch Disc Compressed Thickness | 0.314'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Organic |
| Alignment Tool Included | Yes |
| Pilot Included | Yes |
| Flywheel Included | No |
| Slave Cylinder Included | No |
Vehicle Fitment
1992-1993 Lexus ES300 6 Cyl 3.0L
2005-2010 Scion TC 4 Cyl 2.4L
2008-2009 Scion XA, XB 4 Cyl 2.4L
2008-2011 Scion XA, XB 4 Cyl 2.4L
1992-1994 Toyota Camry 6 Cyl 3.0L
1997-2001 Toyota Camry 6 Cyl 3.0L
2002-2003 Toyota Camry 6 Cyl 3.0L
2002-2006 Toyota Camry 4 Cyl 2.4L
2004-2006 Toyota Camry 6 Cyl 3.3L
2004-2006 Toyota Camry 6 Cyl 3.0L
2007-2009 Toyota Camry 4 Cyl 2.4L
2007-2009 Toyota Camry 6 Cyl 3.5L
2009-2010 Toyota Corolla 2400 4 Cyl 2.4L
2009-2011 Toyota Matrix 4 Cyl 2.4L
2002-2003 Toyota Solara 4 Cyl 2.4L
2004-2006 Toyota Light Truck & Van Rav4 4 Cyl 2.4L
