12552486
19 in stock
Price: $197.00

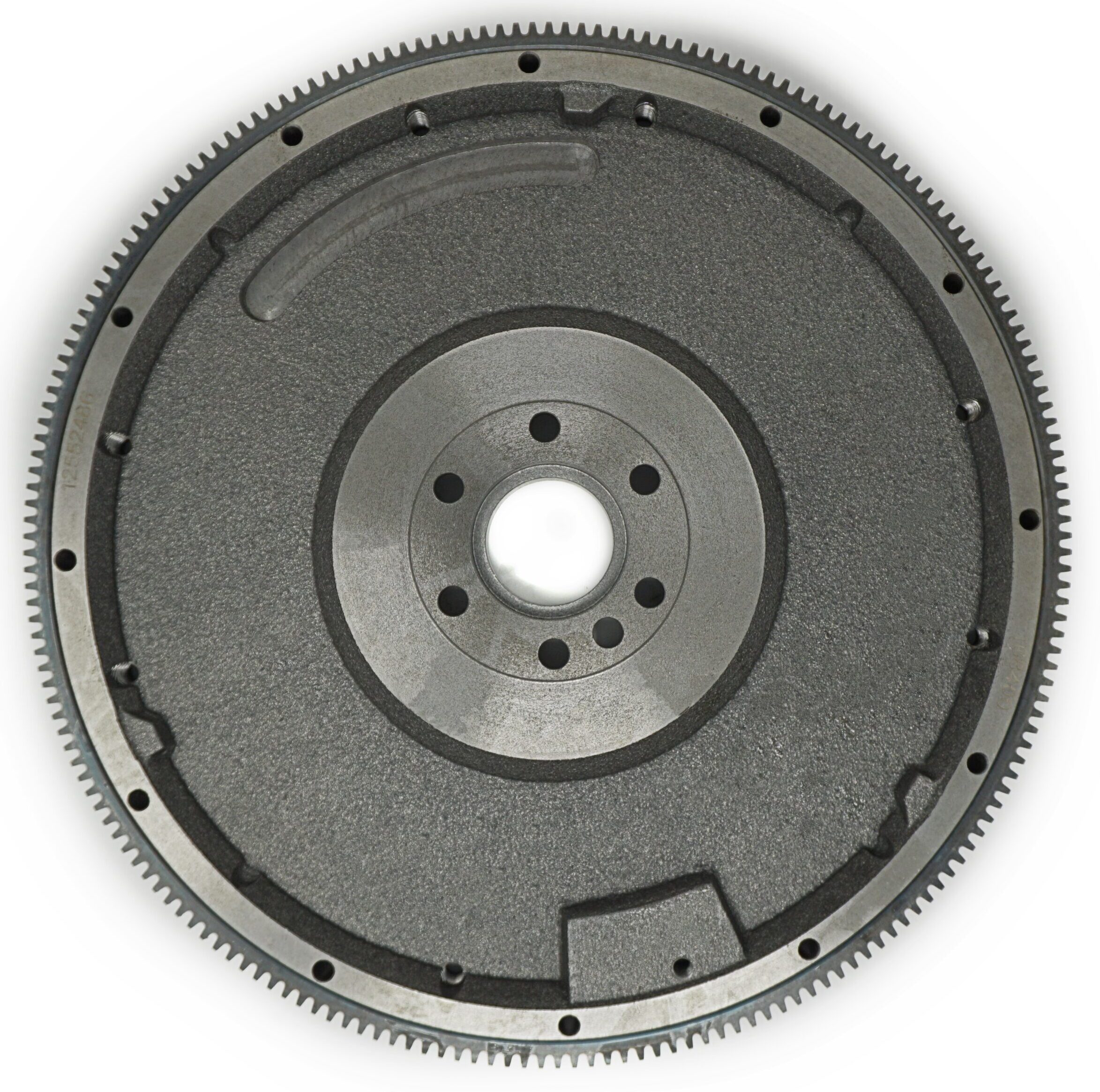

GM 7.0L & 7.4L Gas (6.25” B x 13” OD x 197 Teeth)
Platinum Driveline flywheels are engineered to provide the proper mounting and friction surfaces required for reliable clutch engagement and consistent power transfer. Each flywheel is matched to the application and clutch configuration to ensure proper fit, alignment, and operating performance.
| UPC | 849721015128 |
|---|---|
| Weight | 46 lbs |
| Dimensions | 20.25 × 20.25 × 2.75 in |
| Flywheel Type | Heavy Duty |
|---|---|
| Flywheel Ring Gear Outer Dia. | 16-3/8'' |
| Flywheel Casting Outer Dia. | 16-1/8 |
| Bore Dia. | 6-1/4'' |
| Cover Assembly Bolt Circle Dia. | 14-1/2'' / 15-1/2'' |
| Cover Assembly Bolt Hole Size | 3/8''x 16 |
| Cover Assembly Bolt Pattern | Multiple |
| Crank Mount Bolt Circle Dia. | 3 -5/8'' |
| Crankshaft Mount Hole Qty. | 6 |
| Tooth Qty. | 197 |
| Step Config. | Flat |
| Flywheel Step (In.) | 0.000'' |
