Description

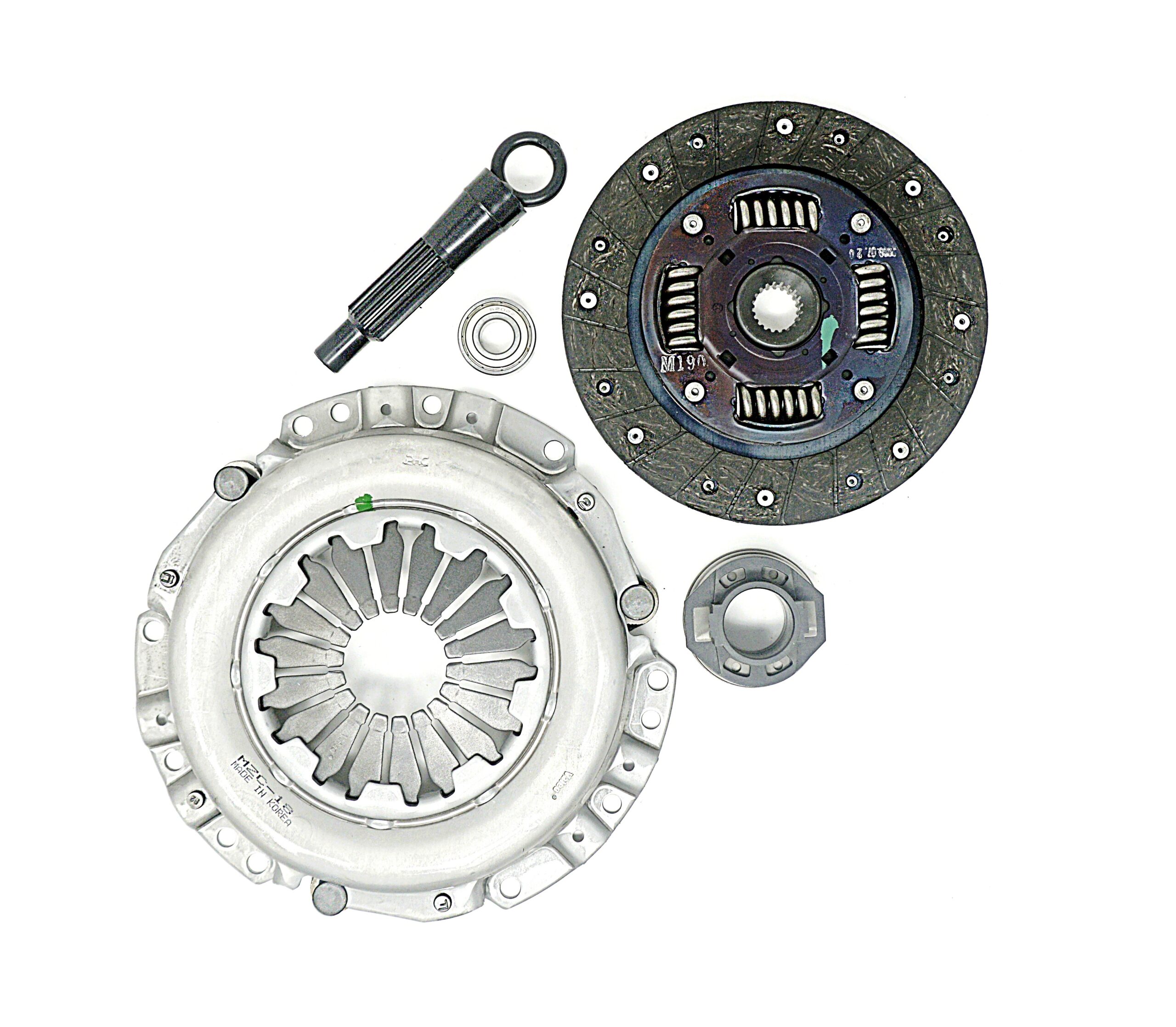

7-1/2” Mazda Clutch Kit
10-043
10-043
Price:
Additional information
| Weight | 10.25 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 7-1/2'' |
| Clutch Disc Lining Inner Dia. | 5-1/4'' |
| Spring Retainer Outer Dia. | 4-3/4'' |
| Clutch Disc Spline Size | 7/8'' |
| Clutch Disc Spline Teeth | 20 |
| Clutch Disc Free Thickness | 0.334'' |
| Clutch Disc Compressed Thickness | 0.299'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Organic |
| Alignment Tool Included | Yes |
| Pilot Included | Yes |
| Flywheel Included | No |
| Slave Cylinder Included | No |
Vehicle Fitment
1990-1995 Mazda 323 4 Cyl 1.6L
1992-1993 Mazda MX-3, Presidia (Canada) 4 Cyl 1.6L
