Description

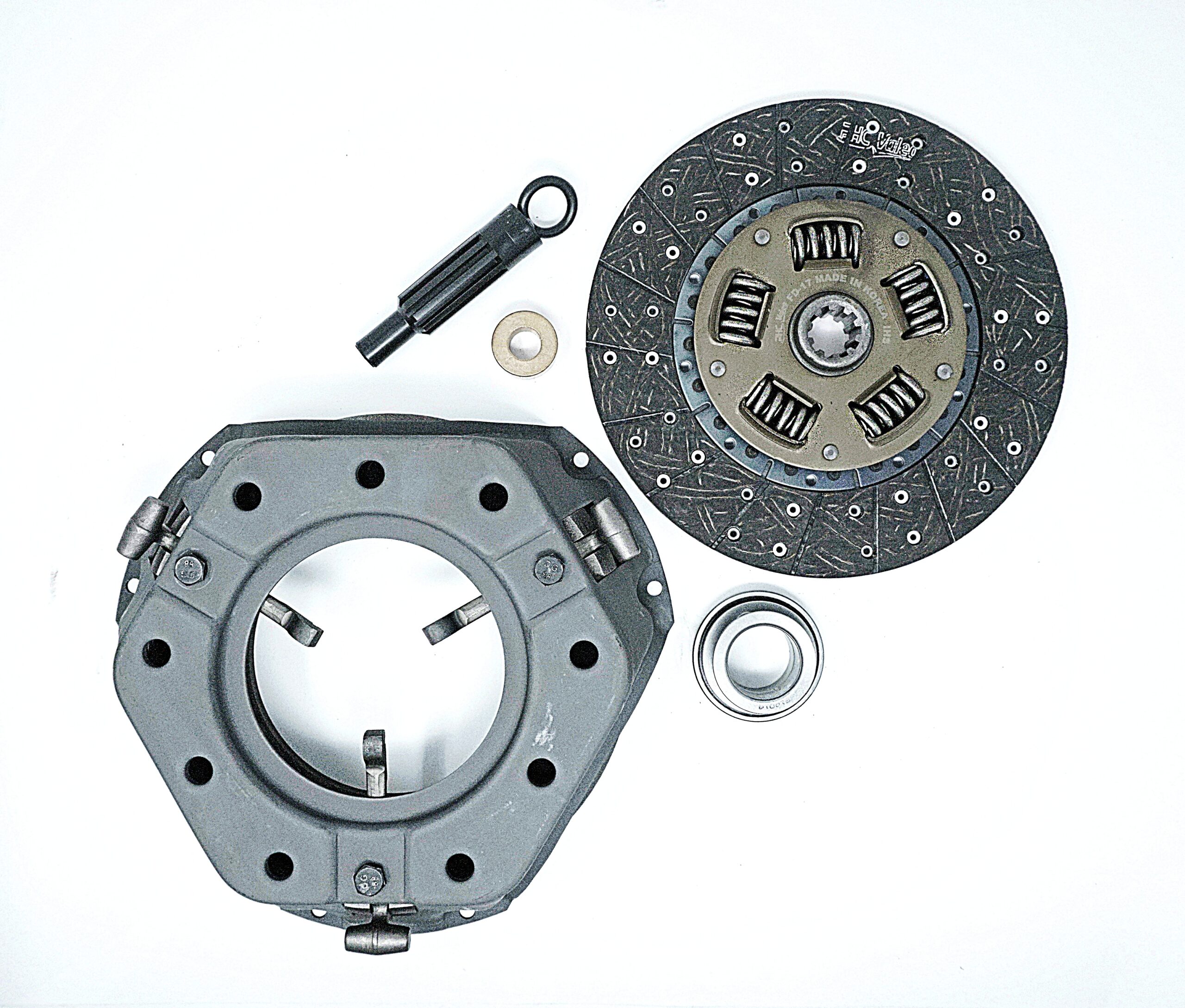

10″ Ford, Mercury Clutch Kit
07-511
07-511
Price:
Additional information
| Weight | 22.25 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 10'' |
| Clutch Disc Lining Inner Dia. | 6-1/2'' |
| Spring Retainer Outer Dia. | 5-3/4'' |
| Clutch Disc Spline Size | 1-1/16'' |
| Clutch Disc Spline Teeth | 10 |
| Clutch Disc Free Thickness | 0.334'' |
| Clutch Disc Compressed Thickness | 0.307'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Organic |
| Alignment Tool Included | Yes |
| Pilot Included | Yes |
| Flywheel Included | No |
| Slave Cylinder Included | No |
Vehicle Fitment
1973-1978 Ford Fairmont, Maverick 8 Cyl 5.0L 302 CID
1974-1977 Ford Fairmont, Maverick 6 Cyl 4.1L 250 CID
1970-1970 Ford Falcon 6 Cyl 4.1L 250 CID
1974-1977 Ford Granada, LTD II 6 Cyl 4.1L 250 CID
1978-1980 Ford Granada, LTD II 6 Cyl 4.1L 250 CID
1971-1977 Mercury Comet 6 Cyl 4.1L 250 CID
1975-1980 Mercury Monarch 6 Cyl 4.1L 250 CID
1977-1979 Mercury Monarch 8 Cyl 5.0L 302 CID
