Description

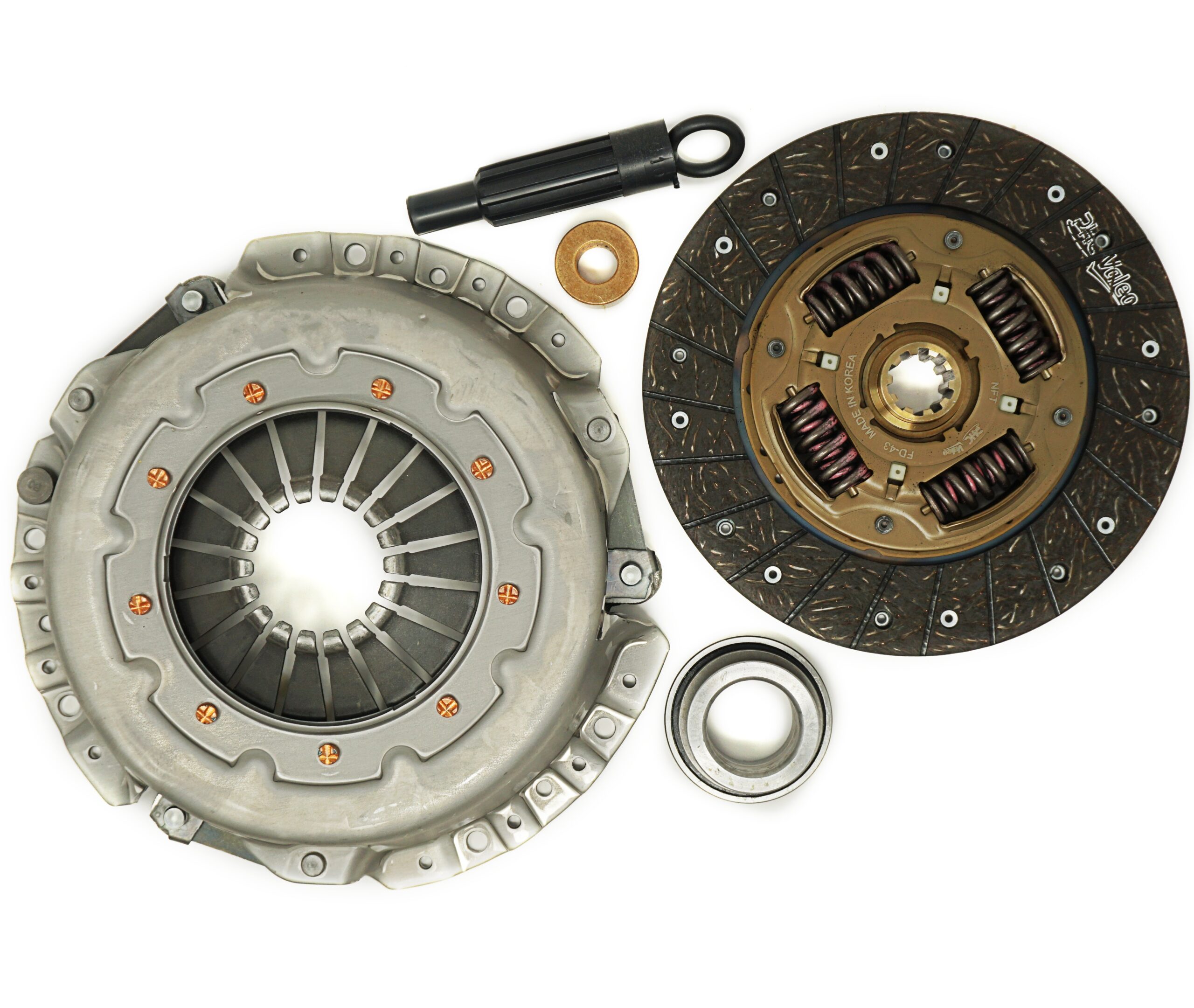

9″ Ford, Mercury Clutch Kit
07-004
07-004
Price:
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 9'' |
| Clutch Disc Lining Inner Dia. | 5-7/8'' |
| Spring Retainer Outer Dia. | 5-3/8'' |
| Clutch Disc Spline Size | 1-1/16'' |
| Clutch Disc Spline Teeth | 10 |
| Clutch Disc Free Thickness | 0.338'' |
| Clutch Disc Compressed Thickness | 0.309'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Organic |
| Alignment Tool Included | Yes |
| Pilot Included | Yes |
| Flywheel Included | No |
| Slave Cylinder Included | No |
Vehicle Fitment
1978-1980 Ford Fairmont, Maverick 6 Cyl 3.3L 200 CID
1981-1981 Ford Fairmont, Maverick 6 Cyl 3.3L 200 CID
1979-1982 Ford Mustang, Mustang II 6 Cyl 3.3L 200 CID
1979-1980 Mercury Capri 6 Cyl 3.3L 200 CID
1981-1982 Mercury Capri 6 Cyl 3.3L 200 CID
1978-1981 Mercury Zephyr 6 Cyl 3.3L 200 CID
