Description

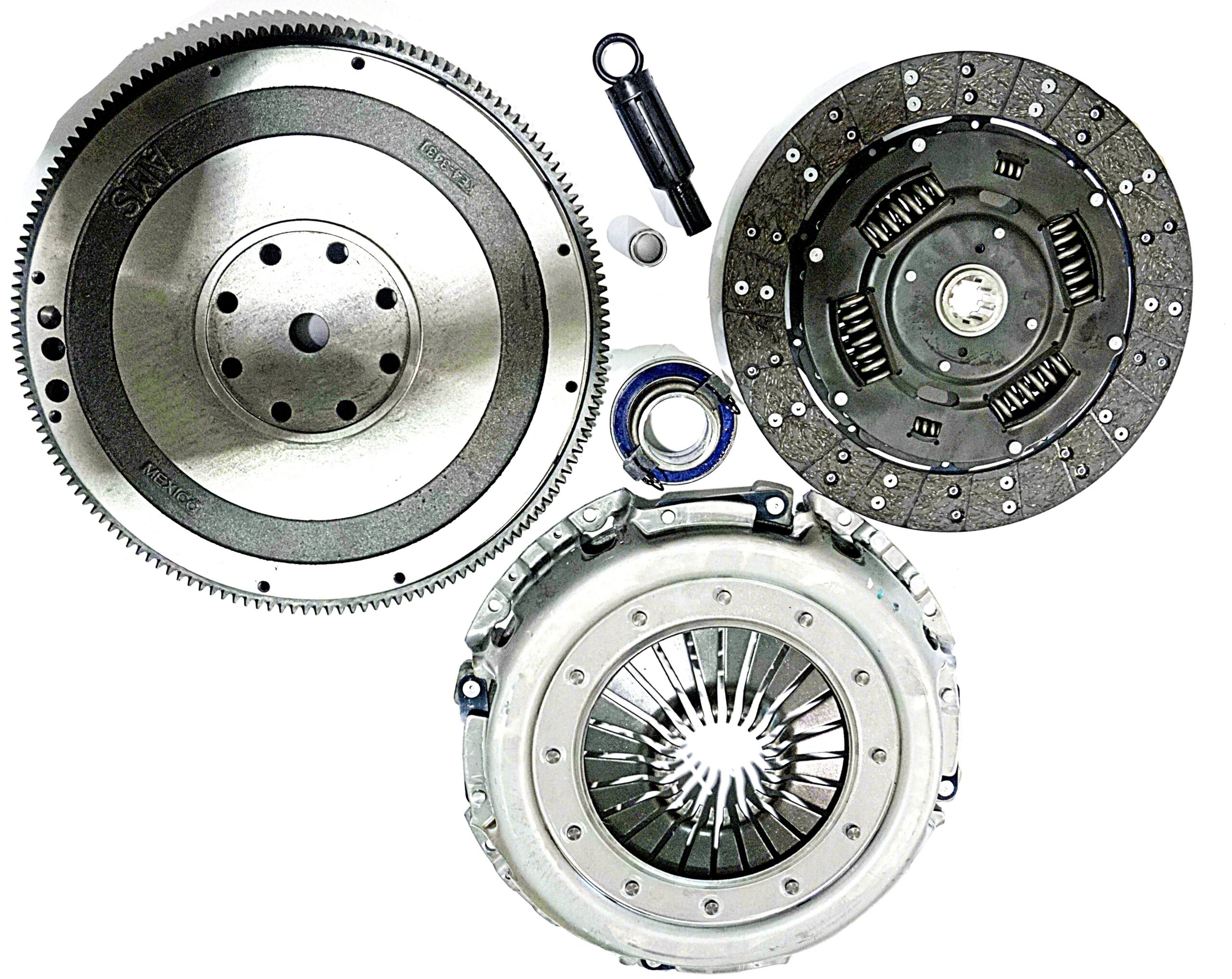

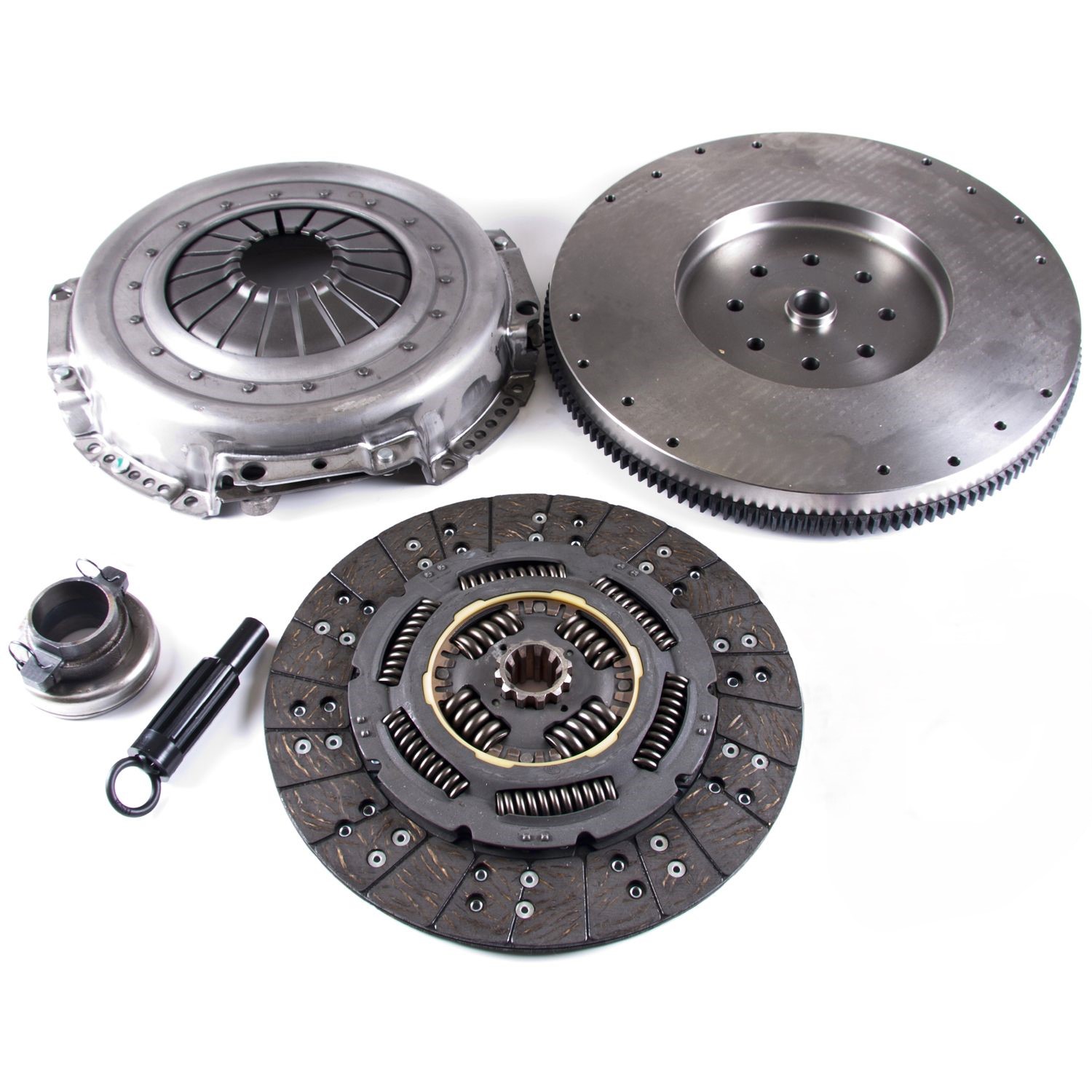

13″ Dodge Clutch Kit. (Includes Flywheel FW434)
05-901HD
05-901HD
Price:
Additional information
| Weight | 93 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 13'' |
| Clutch Disc Lining Inner Dia. | 8-1/4'' |
| Spring Retainer Outer Dia. | 6-3/4'' |
| Clutch Disc Spline Size | 1-1/4'' |
| Clutch Disc Spline Teeth | 10 |
| Clutch Disc Free Thickness | 0.324'' |
| Clutch Disc Compressed Thickness | 0.300'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Organic |
| Alignment Tool Included | Yes |
| Pilot Included | Yes |
| Flywheel Included | Yes |
| Slave Cylinder Included | No |
Vehicle Fitment
1994-1997 Dodge Full Size Truck & Van, Inc Ram B, D, W100 - 350, R1500-3500 (Ram), Ram 4000 6 Cyl 5.9L 360 CID
1998-1999 Dodge Full Size Truck & Van, Inc Ram B, D, W100 - 350, R1500-3500 (Ram), Ram 4000 6 Cyl 5.9L 360 CID
2000-2000 Dodge Full Size Truck & Van, Inc Ram B, D, W100 - 350, R1500-3500 (Ram), Ram 4000 6 Cyl 5.9L 360 CID
2001-2002 Dodge Full Size Truck & Van, Inc Ram B, D, W100 - 350, R1500-3500 (Ram), Ram 4000 6 Cyl 5.9L 360 CID
2003-2004 Dodge Full Size Truck & Van, Inc Ram B, D, W100 - 350, R1500-3500 (Ram), Ram 4000 6 Cyl 5.9L 360 CID
