Description

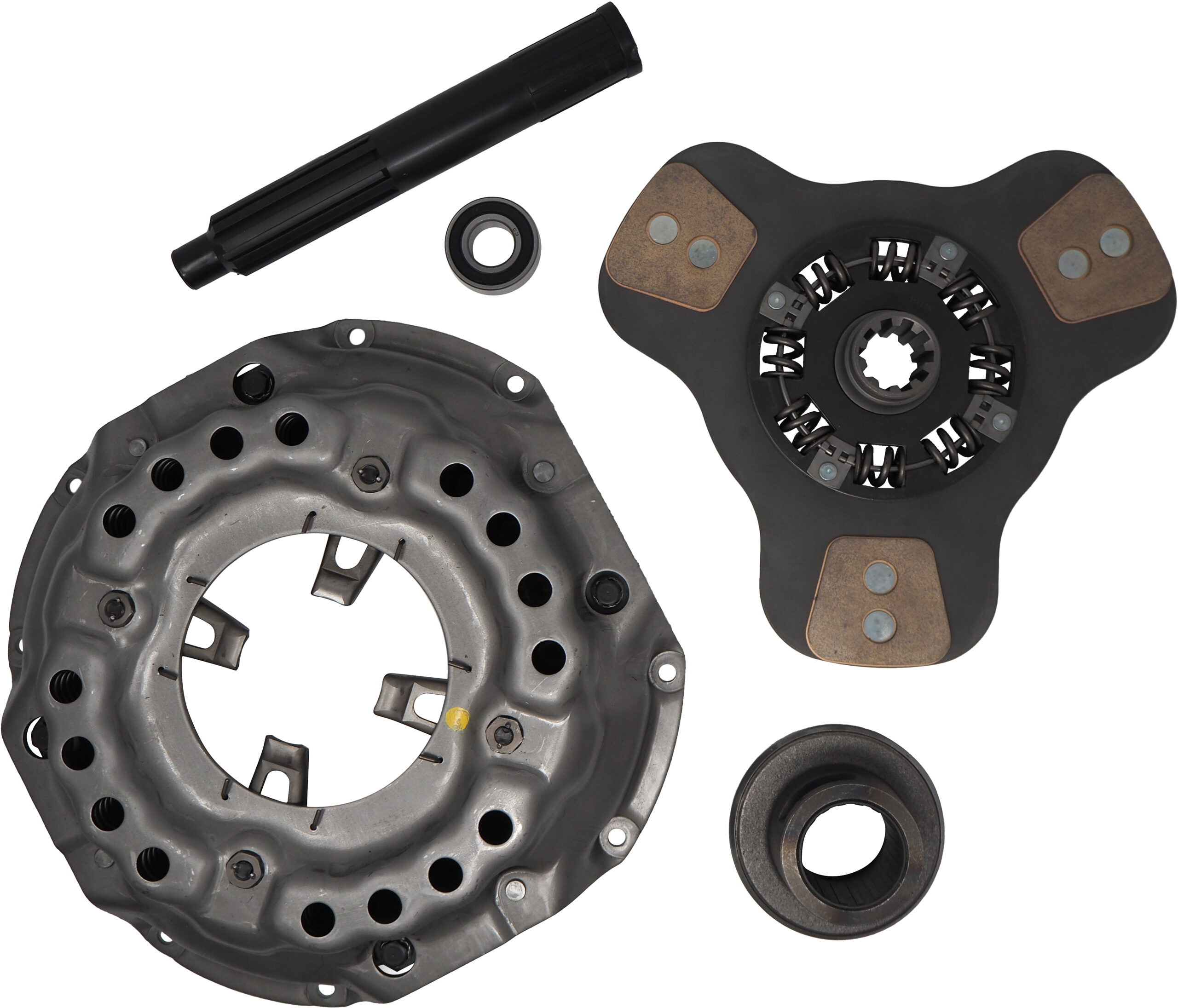

13” Chevrolet, GMC Clutch Kit
04-520CB
04-520CB
Price:
Additional information
| Weight | 37 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 13'' |
| Clutch Disc Lining Inner Dia. | 7-3/8'' |
| Spring Retainer Outer Dia. | 6'' |
| Clutch Disc Spline Size | 1-1/2'' |
| Clutch Disc Spline Teeth | 10 |
| Clutch Disc Free Thickness | 0.393'' |
| Clutch Disc Compressed Thickness | 0.393'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Ceramic |
| Alignment Tool Included | Yes |
| Pilot Included | Yes |
| Flywheel Included | No |
| Slave Cylinder Included | No |
Vehicle Fitment
1990-1990 GMC Medium Truck C40, C50, C60, C70 8 Cyl 6.0L 366 CID
1990-1993 GMC Medium Truck Topkick 8 Cyl 7.0L 427 CID
1990-1995 GMC Medium Truck Topkick 8 Cyl 6.0L 366 CID
