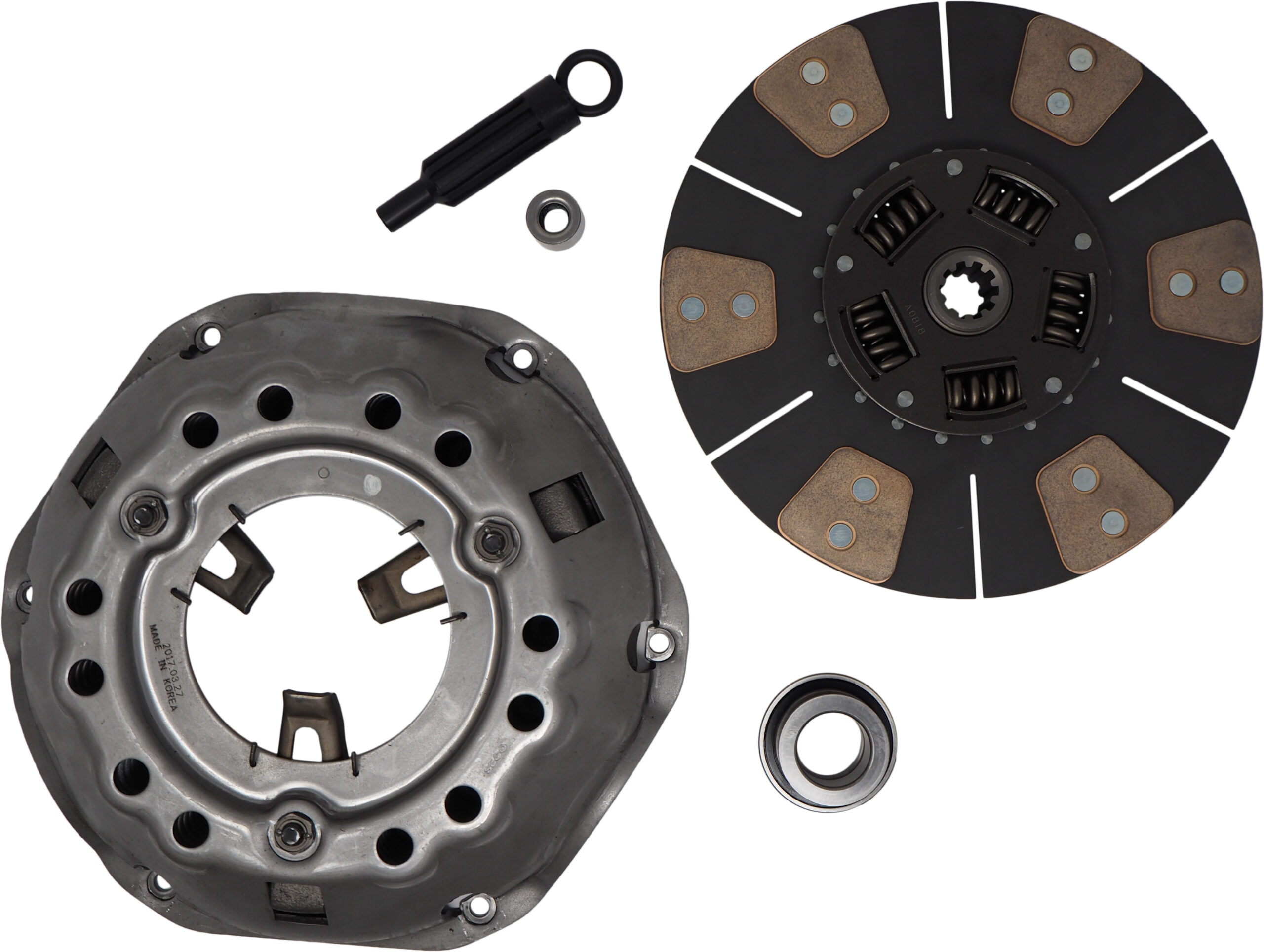

12″ Checker, Chevrolet Truck, GMC, Pontiac Clutch Kit
04-502CB
04-502CB
Price:
Additional information
| Weight | 28 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 12'' |
| Clutch Disc Lining Inner Dia. | 7-3/8'' |
| Spring Retainer Outer Dia. | 5-1/2'' |
| Clutch Disc Spline Size | 1-1/8'' |
| Clutch Disc Spline Teeth | 10 |
| Clutch Disc Free Thickness | 0.324'' |
| Clutch Disc Compressed Thickness | 0.324'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Ceramic |
| Alignment Tool Included | Yes |
| Pilot Included | Yes |
| Flywheel Included | No |
| Slave Cylinder Included | No |
Vehicle Fitment
1969-1979 Checker Deluxe, Marathon 8 Cyl 5.7L 350 CID
1955-1959 Chevrolet Full Size Truck C, G, K, R, V, P, 10, 20 30, 1500, 2500
3500 Including Blazer, Suburban & Tahoe 8 Cyl 5.7L 348 CID
1967-1968 Chevrolet Full Size Truck C, G, K, R, V, P, 10, 20 30, 1500, 2500
3500 Including Blazer, Suburban & Tahoe 8 Cyl 5.4L 327 CID
1962-1967 GMC Full Size Truck C, G, K, P, R, V1500-3500, Full Size Jimmy & Yukon 8 Cyl 4.6L 283 CID
1979-1989 GMC Medium Truck C40, C50, C60, C70 8 Cyl 5.7L 350 CID
1980-1982 GMC Medium Truck C40, C50, C60, C70 6 Cyl 4.8L 292 CID
1983-1987 GMC Medium Truck C40, C50, C60, C70 6 Cyl 4.8L 292 CID
