04-053

04-053

04-053

Brand: Platinum Driveline, Inc.
Category:
On Hand: 1

Price:

Description

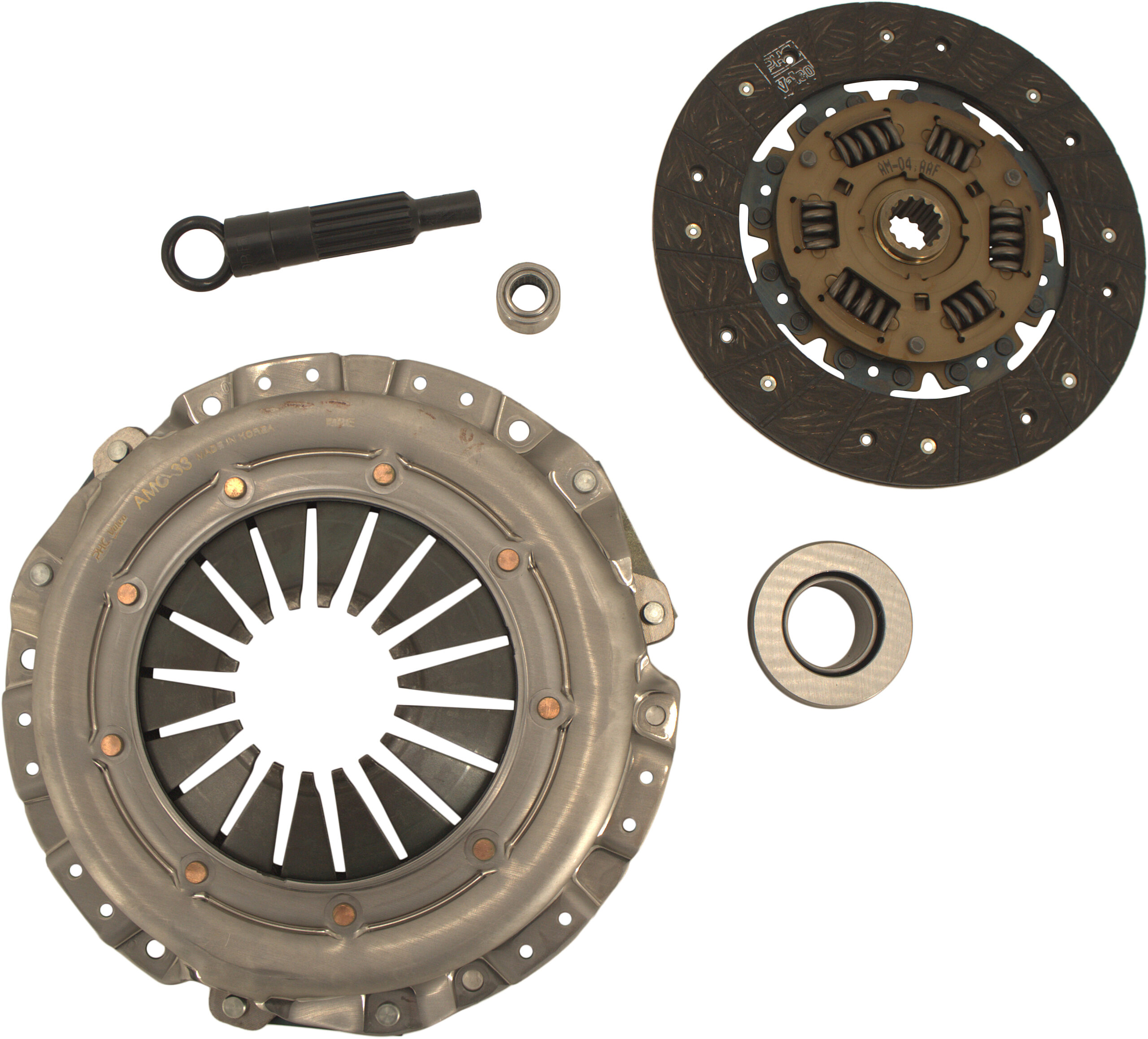

9-1/8” Chevrolet, GMC, Pontiac Clutch Kit

Product Overview

Platinum Driveline clutch kits are designed to restore reliable clutch engagement, smooth release, and consistent power transfer for each specific application. Every kit includes an application matched clutch disc and pressure plate, with additional components included where available. Kit configurations are tailored to the needs of each application to provide the right combination of components for a dependable clutch replacement.

Additional information

Weight 15.5 lbs
Dimensions 15 × 16 × 4 in

Clutch Kit Specifications

Clutch Disc Lining Outer Dia.9-1/16''
Clutch Disc Lining Inner Dia.6-1/8''
Spring Retainer Outer Dia.5-1/4''
Clutch Disc Spline Size1''
Clutch Disc Spline Teeth14
Clutch Disc Free Thickness0.338''
Clutch Disc Compressed Thickness0.307''
Clutch Disc ConfigurationSprung
Clutch Disc Lining MaterialOrganic
Alignment Tool IncludedYes
Pilot IncludedYes
Flywheel IncludedNo
Slave Cylinder IncludedNo

Vehicle Fitment

Year
Make
Model
Engine
Notes
1985-1991
Chevrolet
Astro Van
4 Cyl 2.5L 151"
1983-1983
Chevrolet
Camaro, Z28
4 Cyl 2.5L 151"
5-Speed
1984-1987
Chevrolet
Camaro, Z28
4 Cyl 2.5L 151"
5-Speed
1985-1989
Chevrolet
Camaro, Z28
6 Cyl 2.8L 173"
1990-1992
Chevrolet
Camaro, Z28
6 Cyl 3.1L 191"
1985-1990
GMC
Safari Van
4 Cyl 2.5L 151"
1983-1983
Pontiac
Firebird, Trans Am
4 Cyl 2.5L 151"
5-Speed
1984-1986
Pontiac
Firebird, Trans Am
4 Cyl 2.5L 151"
5-Speed
1985-1989
Pontiac
Firebird, Trans Am
6 Cyl 2.8L 173"
1990-1992
Pontiac
Firebird, Trans Am
6 Cyl 3.1L 191"
