Description

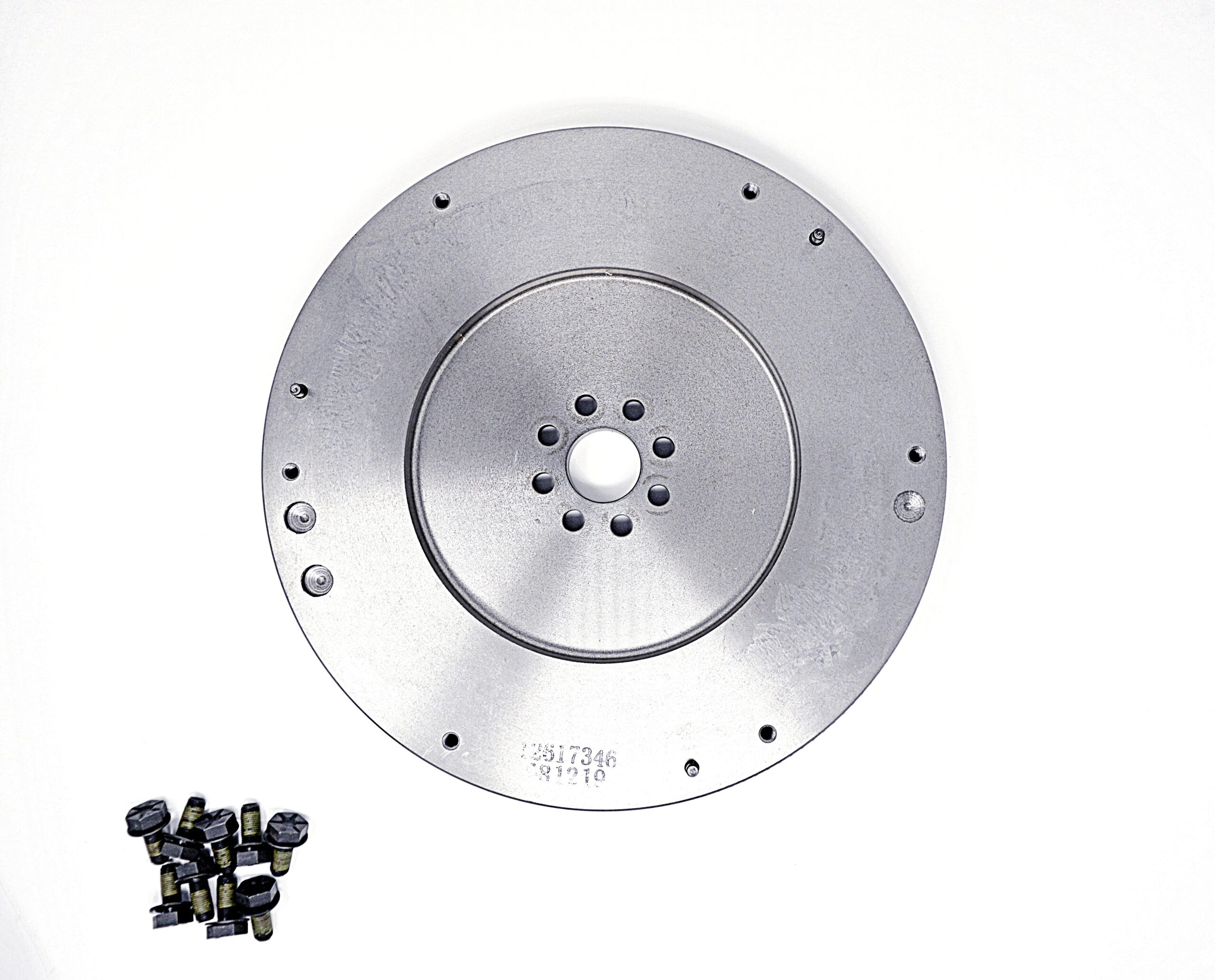

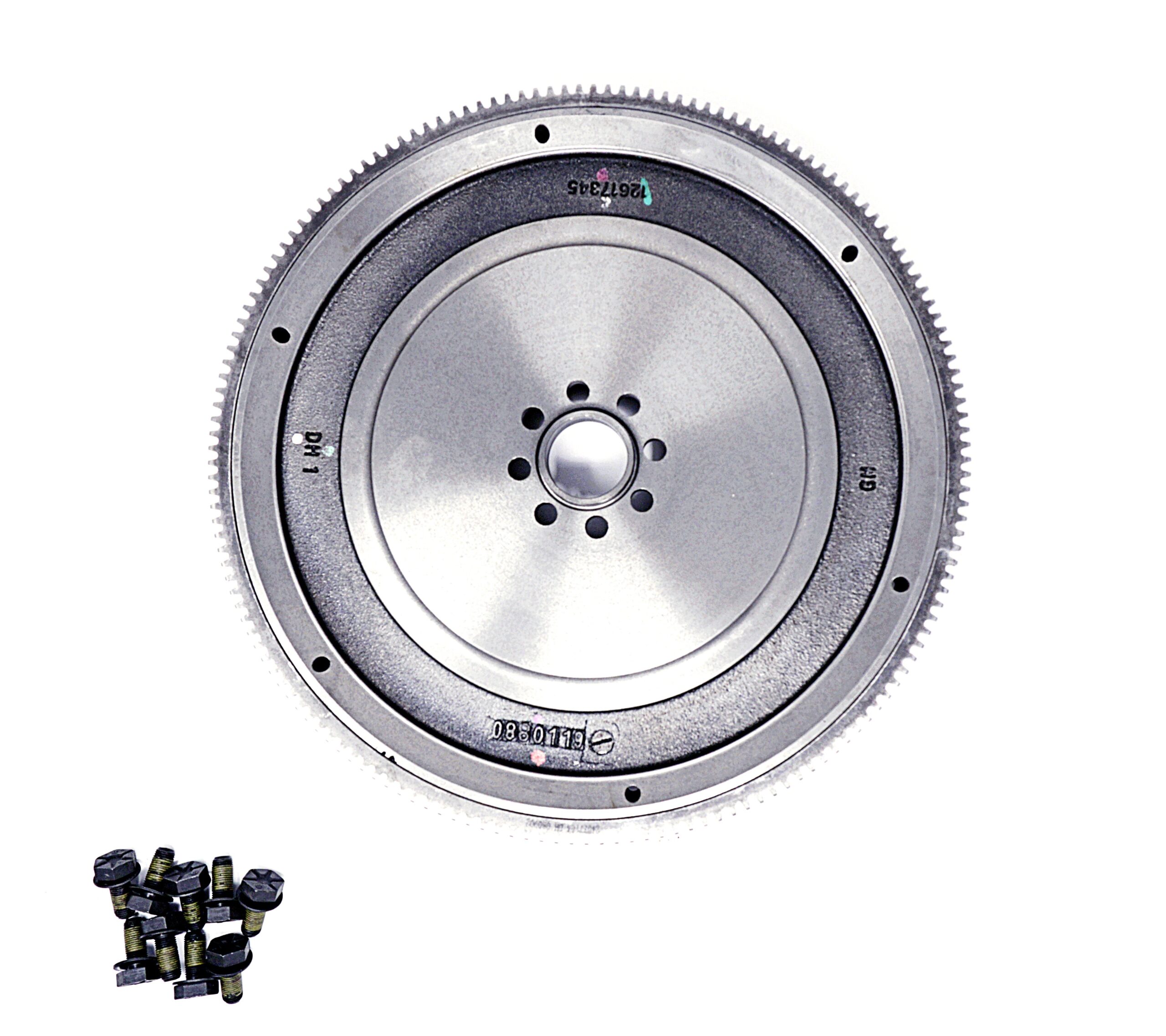

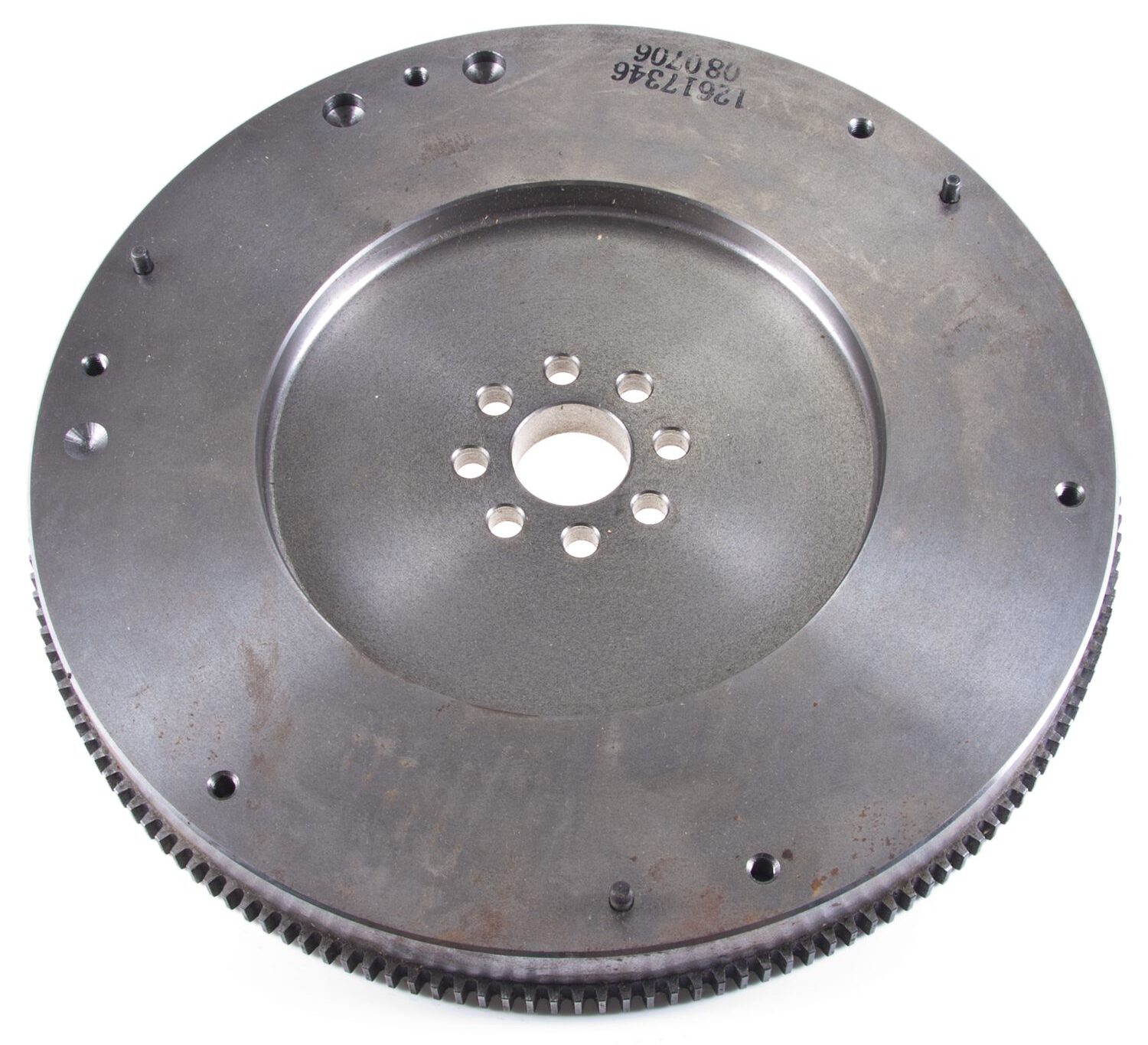

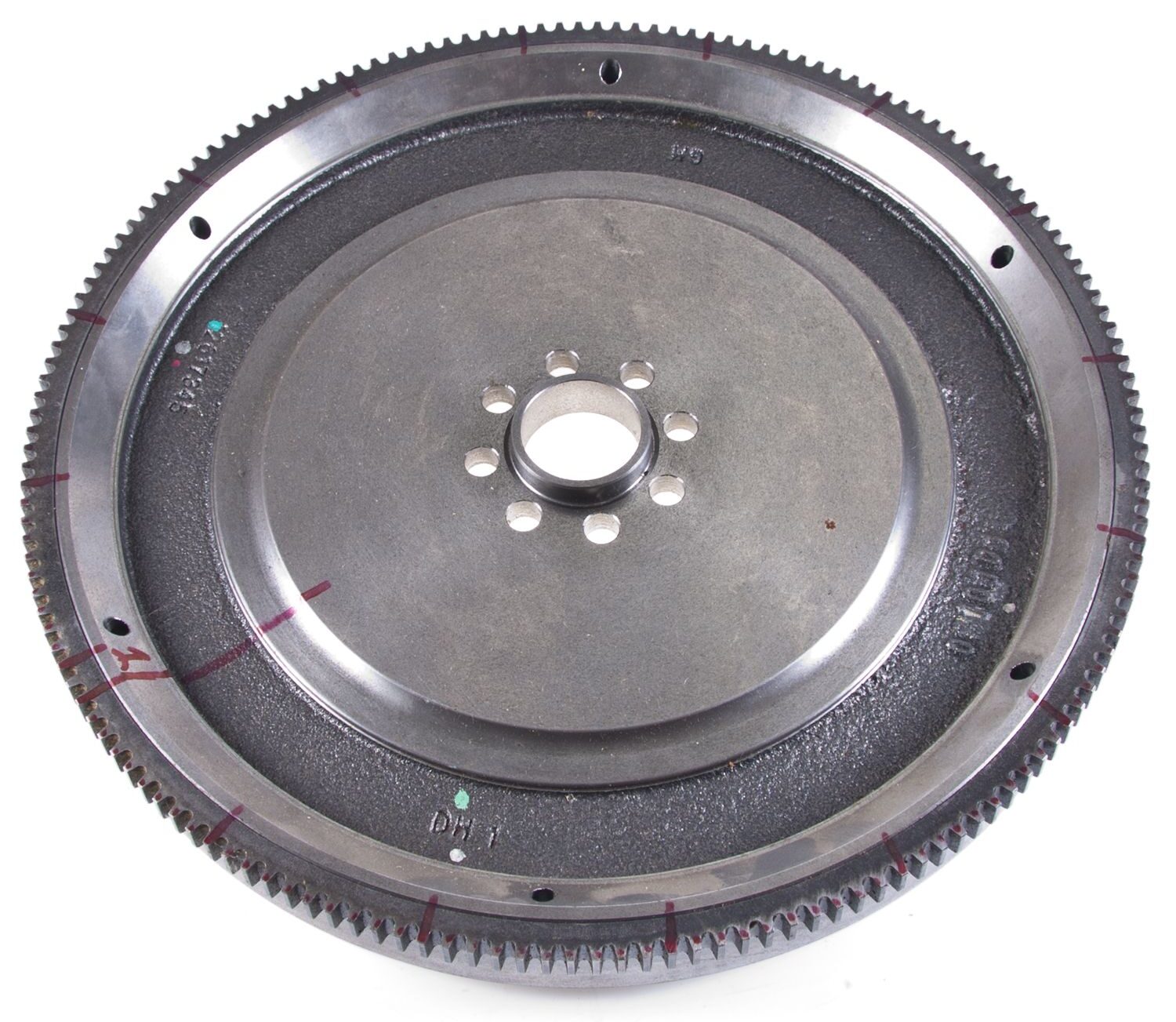

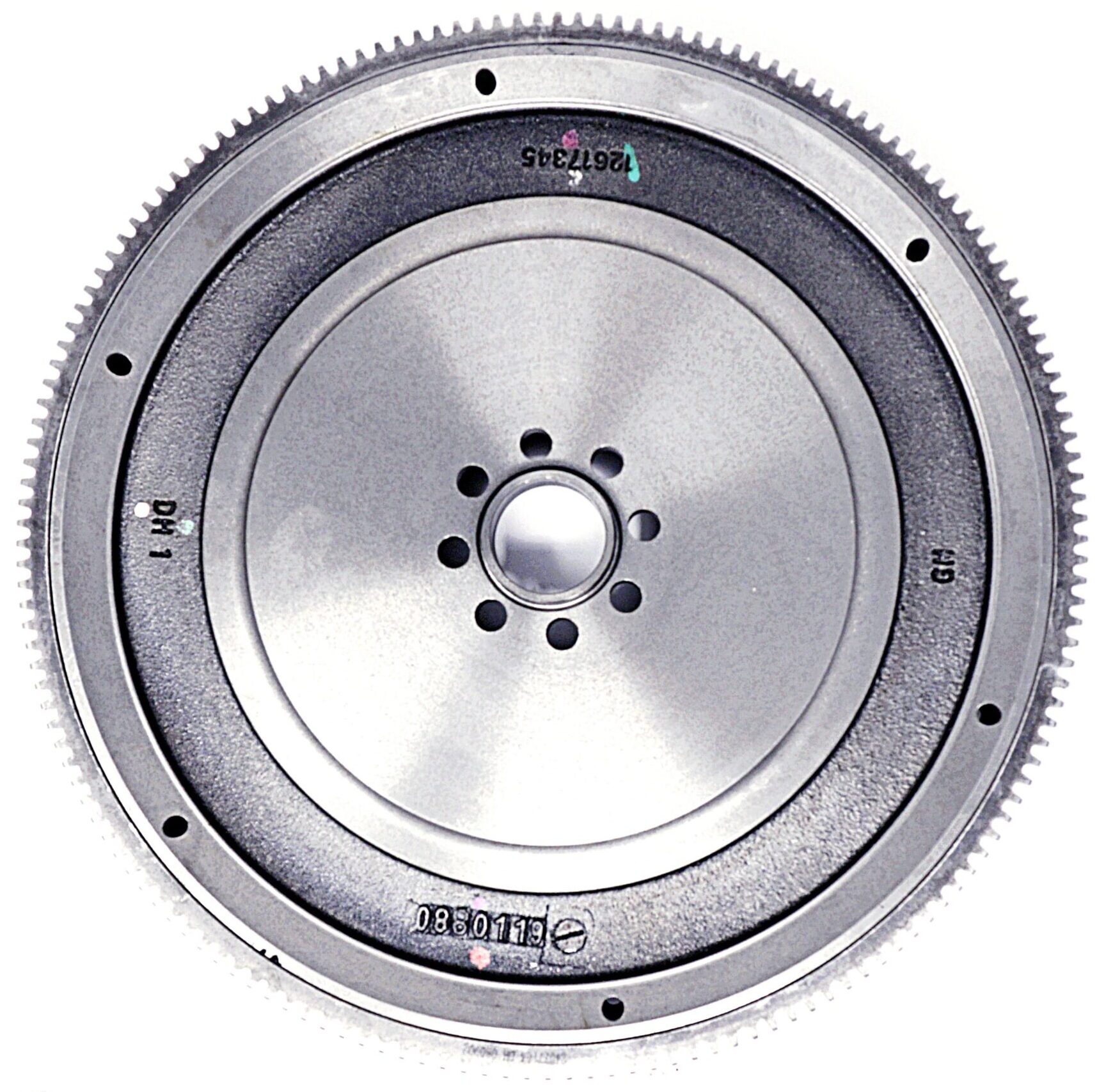

Chevrolet, GMC Solid Flywheel
FW584
FW584
Price:
Additional information
| Weight | 27.5 lbs |
|---|---|
| Dimensions | 15 × 14 × 2 in |
Flywheel Specifications
| Flywheel Type | Solid |
|---|---|
| Flywheel Ring Gear Outer Dia. | - |
| Flywheel Casting Outer Dia. | - |
| Bore Dia. | - |
| Cover Assembly Bolt Circle Dia. | 11.97 |
| Cover Assembly Bolt Hole Size | M8*1.25 |
| Cover Assembly Bolt Pattern | 6 Holes Equally Spaced |
| Dowel Pin Qty (Cover To Flywheel) | - |
| Dowel Pin Diameter (Cover To Flywheel) | - |
| Crank Mount Bolt Circle Dia. | 2.475 |
| Crankshaft Mount Hole Qty. | 8 |
| Tooth Qty. | 161 |
| Step Config. | Flat |
| Flywheel Step (In.) | 0 |
