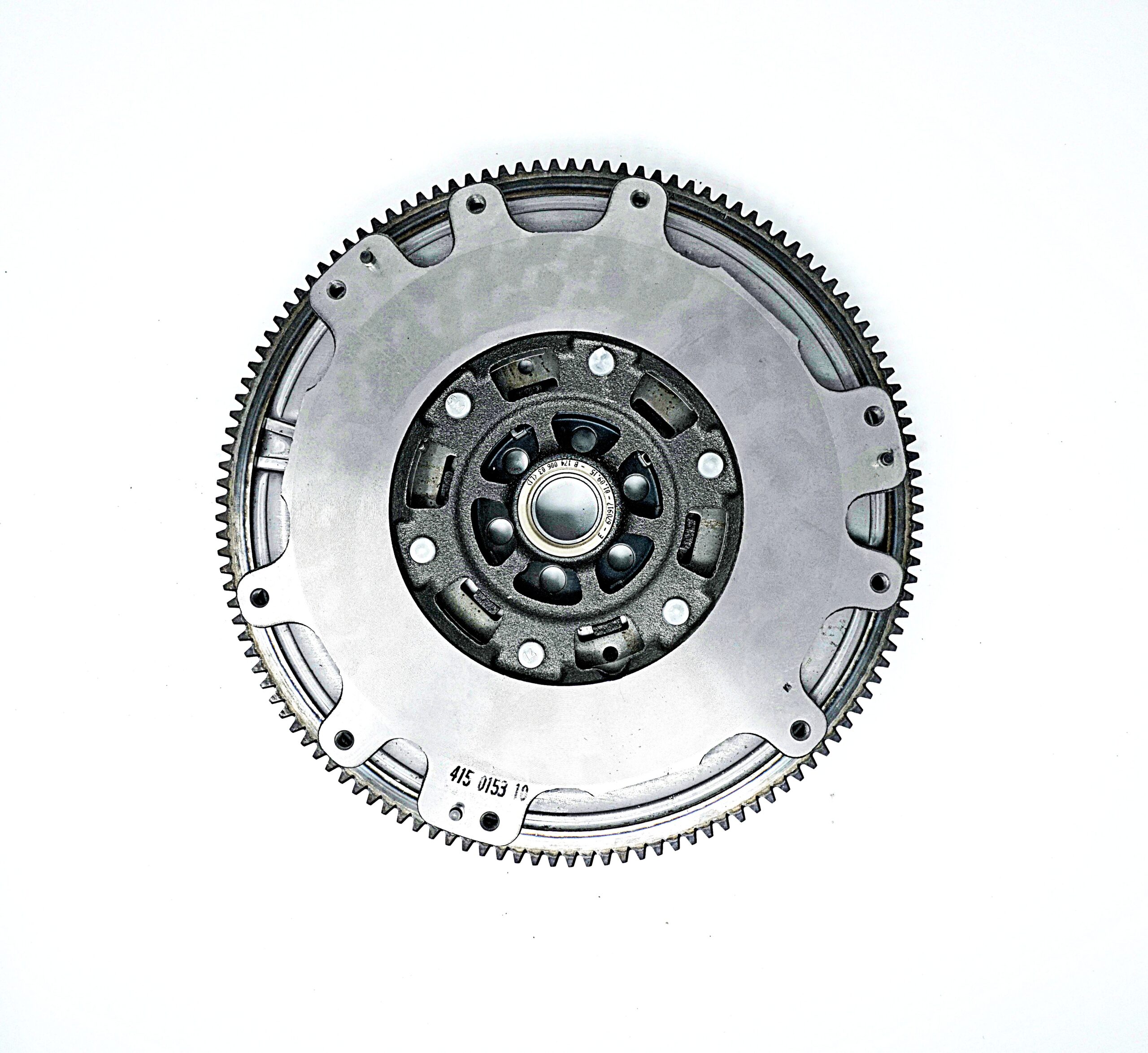

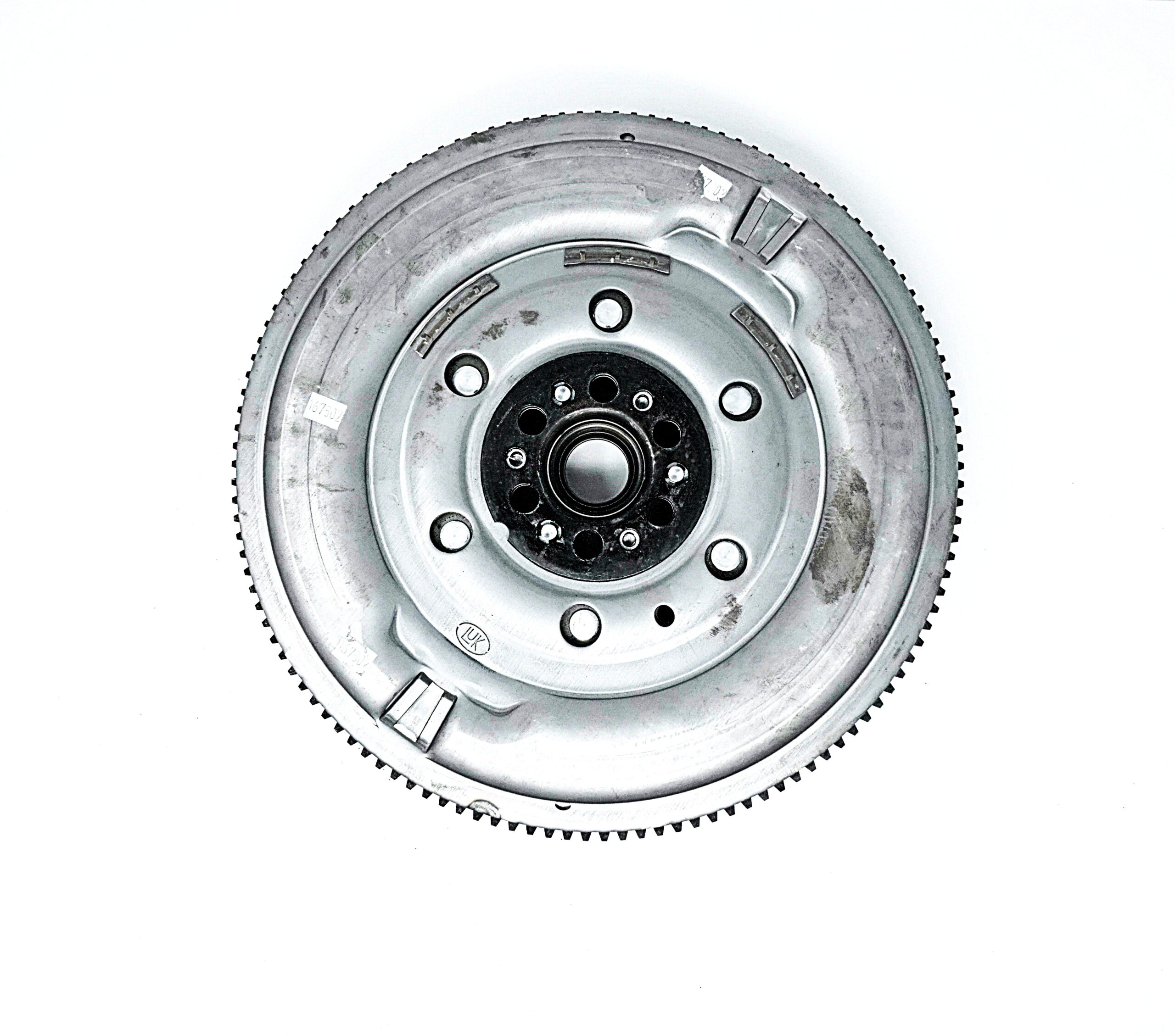

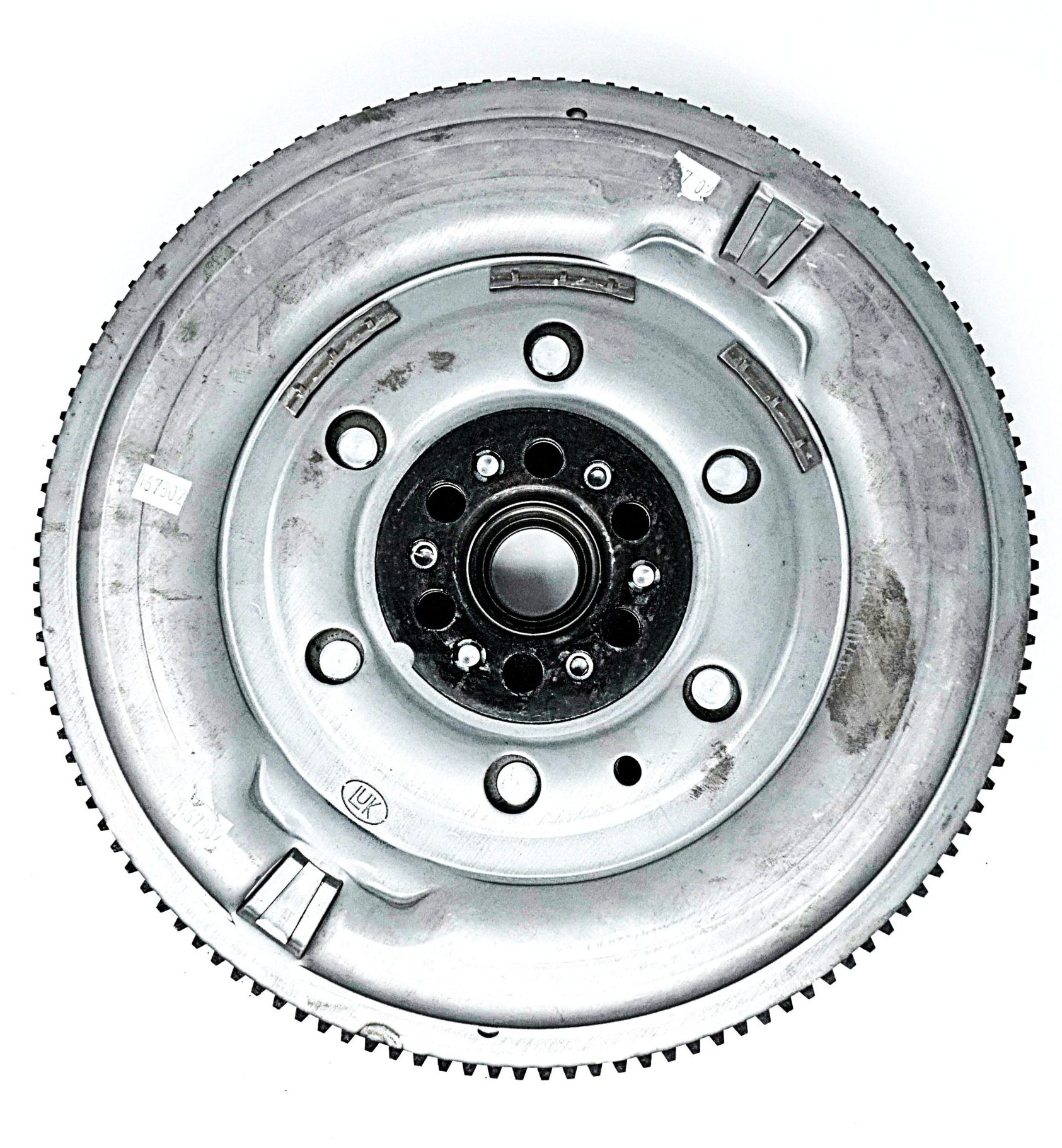

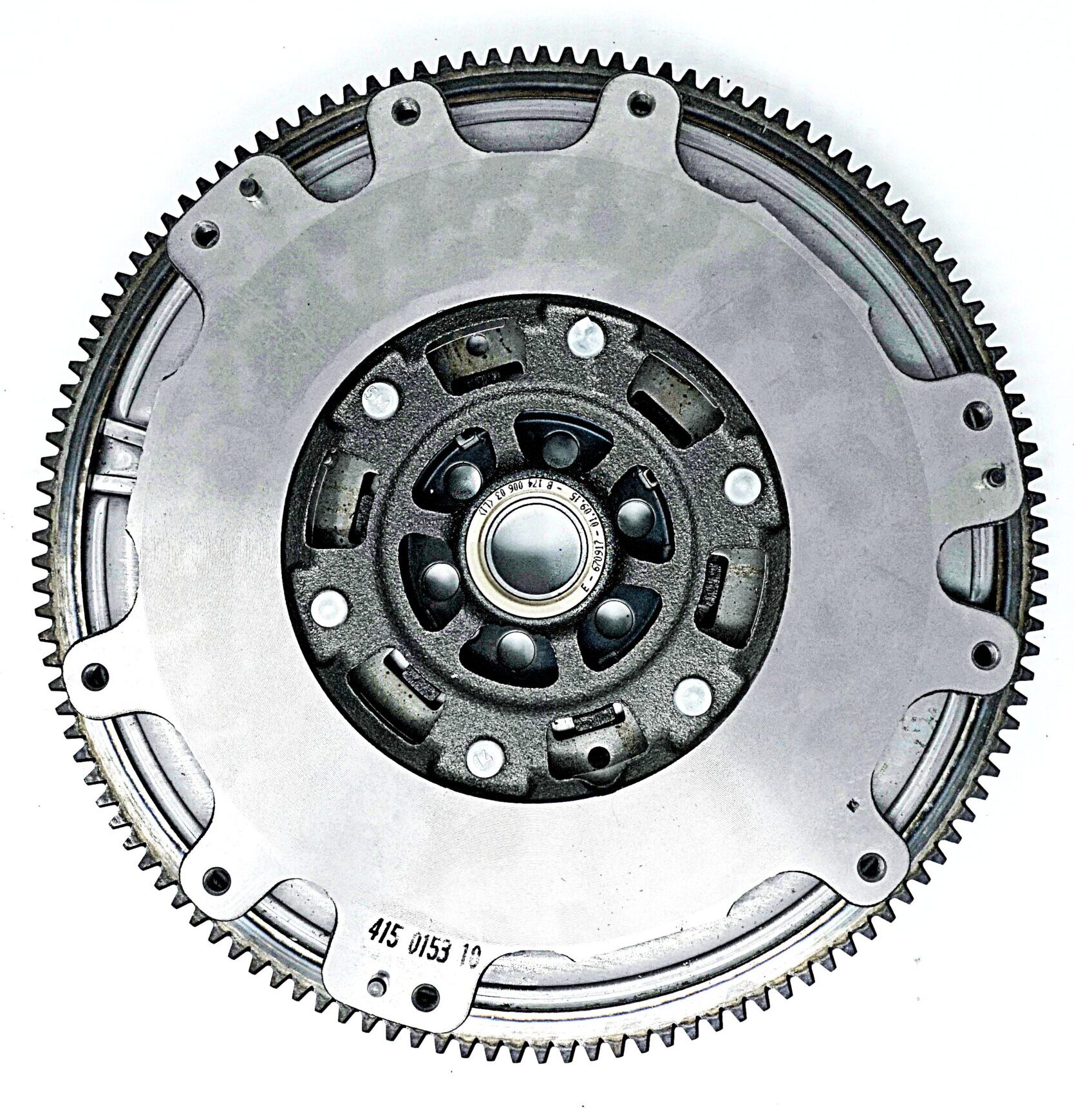

Nissan Dual Mass Flywheel
DMF302
DMF302
Price:
Additional information
| Weight | 28 lbs |
|---|---|
| Dimensions | 15 × 14 × 2 in |
Flywheel Specifications
| Flywheel Type | Dual Mass Flywheel |
|---|---|
| Flywheel Ring Gear Outer Dia. | - |
| Flywheel Casting Outer Dia. | - |
| Bore Dia. | - |
| Cover Assembly Bolt Circle Dia. | 11.03 |
| Cover Assembly Bolt Hole Size | M8*1.25 |
| Cover Assembly Bolt Pattern | 6 Holes Groups of 2 |
| Dowel Pin Qty (Cover To Flywheel) | - |
| Dowel Pin Diameter (Cover To Flywheel) | - |
| Crank Mount Bolt Circle Dia. | 2.603 |
| Crankshaft Mount Hole Qty. | 6 |
| Tooth Qty. | 125 |
| Step Config. | Flat |
| Flywheel Step (In.) | 0 |
