Description

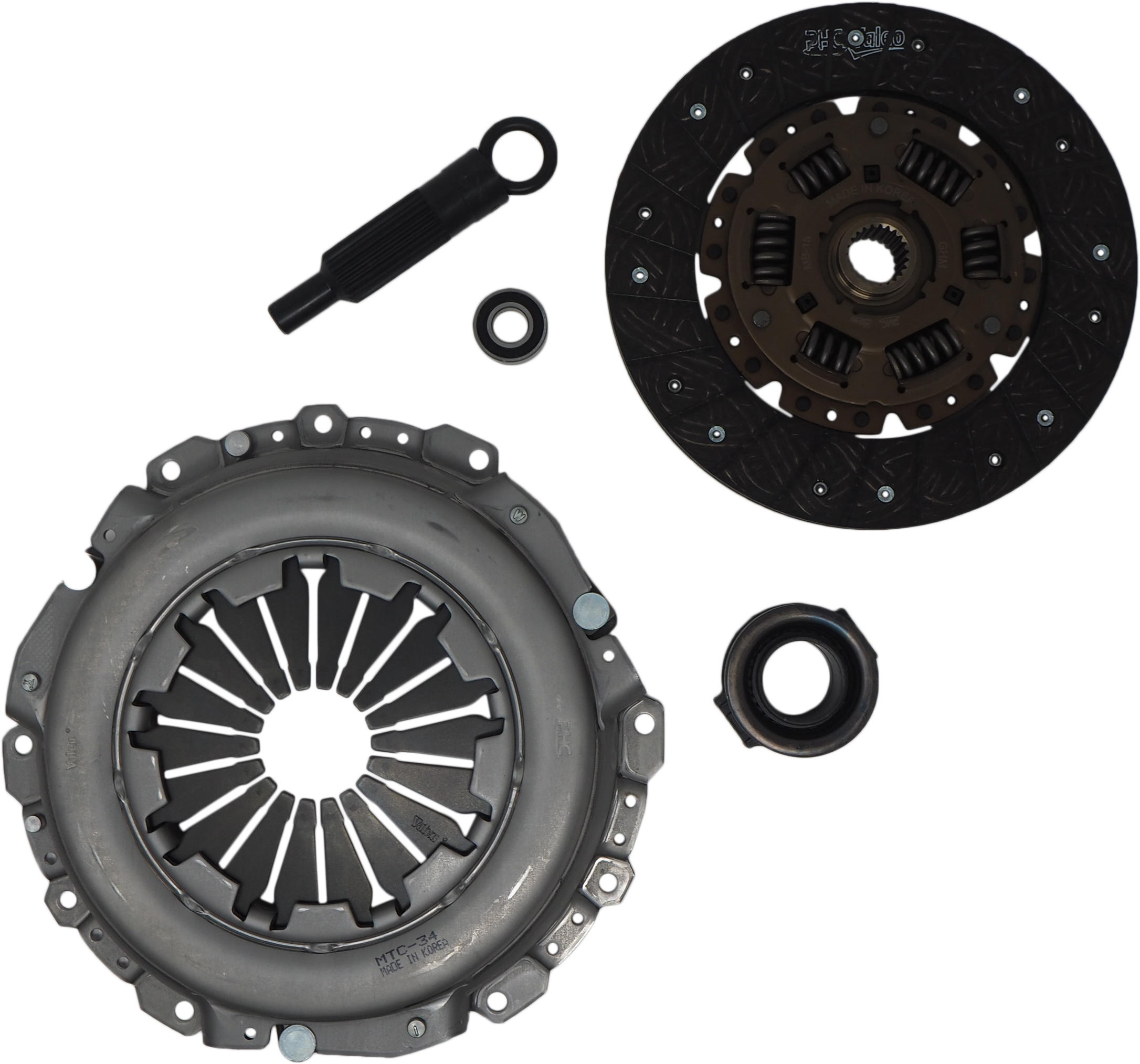

8-1/2” Dodge, Plymouth Clutch Kit
05-021
05-021
Price:
Additional information
| Weight | 14 lbs |
|---|---|
| Dimensions | 15 × 16 × 4 in |
Clutch Kit Specifications
| Clutch Cover Type | - |
|---|---|
| Cover Assembly Outer Dia. | - |
| Cover Assembly Bolt Circle Dia. | - |
| Cover Assembly Bolt Hole Quantity | - |
| Cover Assembly Bolt Hole Size | - |
| Cover Assembly Dowel Hole Quantity | - |
| Cover Assembly Dowel Hole Size | - |
| Pressure Plate Outer Dia. | - |
| Pressure Plate Inner Dia. | - |
| Pressure Plate Clamp Load | - |
| Clutch Disc Lining Outer Dia. | 8-1/2'' |
| Clutch Disc Lining Inner Dia. | 5-7/8'' |
| Spring Retainer Outer Dia. | 4-15/16'' |
| Clutch Disc Spline Size | 7/8'' |
| Clutch Disc Spline Teeth | 20 |
| Clutch Disc Free Thickness | 0.330'' |
| Clutch Disc Compressed Thickness | 0.295'' |
| Clutch Disc Configuration | Sprung |
| Clutch Disc Lining Material | Organic |
| Alignment Tool Included | Yes |
| Pilot Included | - |
| Flywheel Included | No |
| Slave Cylinder Included | - |
