04-217

04-217

04-217

Brand: Platinum Driveline, Inc.
Category:

Contact Platinum for Price and Availability

Description

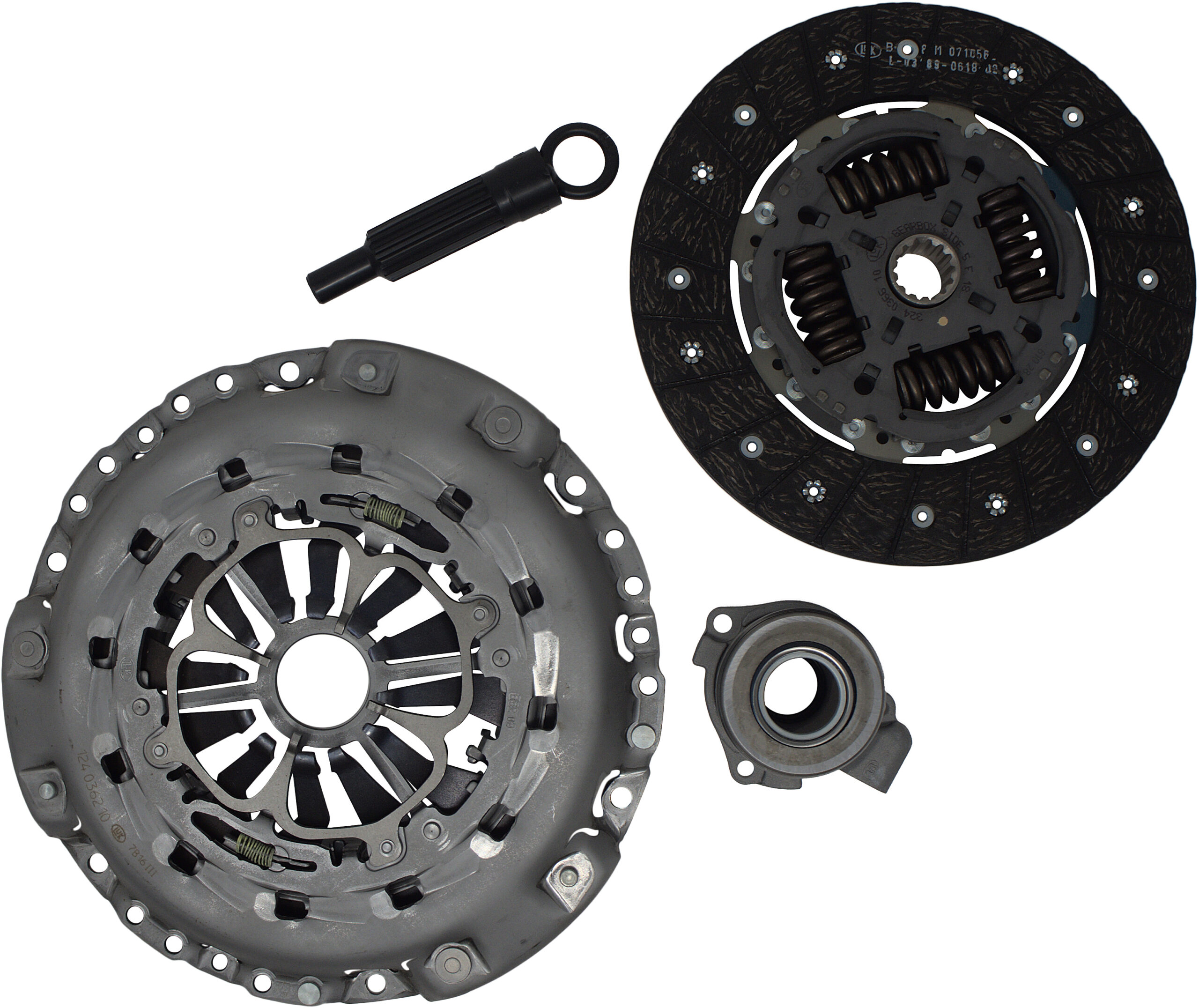

9-3/8″ Chevrolet, Saturn Clutch Kit

Product Overview

Platinum Driveline clutch kits are designed to restore reliable clutch engagement, smooth release, and consistent power transfer for each specific application. Every kit includes an application matched clutch disc and pressure plate, with additional components included where available. Kit configurations are tailored to the needs of each application to provide the right combination of components for a dependable clutch replacement.

Additional information

UPC 84972100322
Weight 16 lbs
Dimensions 15.75 × 15 × 4 in

Clutch Kit Specifications

Clutch Cover TypeDiaphragm Self-Adjusting
Cover Assembly Outer Dia.10-15/16''
Cover Assembly Bolt Hole Quantity6
Cover Assembly Dowel Hole Quantity3
Cover Assembly Dowel Hole Size0.256''
Pressure Plate Outer Dia.9-7/16''
Pressure Plate Inner Dia.6''
Clutch Disc Lining Outer Dia.9-7/16''
Clutch Disc Lining Inner Dia.6-1/8''
Spring Retainer Outer Dia.5-1/4''
Clutch Disc Spline Size1''
Clutch Disc Spline Teeth14
Clutch Disc Free Thickness0.354''
Clutch Disc Compressed Thickness0.325''
Clutch Disc ConfigurationSprung
Clutch Disc Lining MaterialOrganic
Alignment Tool IncludedYes
Pilot IncludedNo
Flywheel IncludedNo
Slave Cylinder IncludedYes

Vehicle Fitment

Year
Make
Model
Engine
Notes
2005-2009
Chevrolet
Cobalt
4 Cyl 2.0L 122"
2004-2007
Saturn
Ion
4 Cyl 2.0L 122"
